Flight Controller/OSD/ GPS/ Stablizer
    RadioLink M8N GPS Module TS100 W/ Compass for Mini PIX F4
    T01040308030
    Price(USD):$30.88     Back Order
    Price(USD):Member Price:$30.88     Back Order Sign in for member price
    Price(USD):Buy:$30.88     Back Order
    Add To Cart     Add To Wish List   Notify Me When Available.
    SKU TS-100
    SKUBrand TS-100RadioLink
    SKUAdded TS-1002019/03/21
    SKUUpdated TS-1002019/03/21
    SKU
    SKU

    Tags: RadioLink_M8N_GPS_Module_TS100_W_Compass_for_Mini_PIX_F4

    Features:






    Specifications:

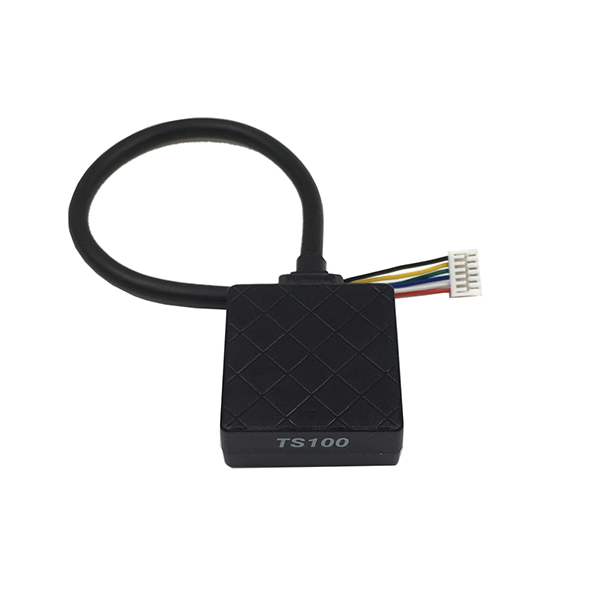

    RadioLink M8N GPS Module TS100 W/ Compass for Mini PIX F4

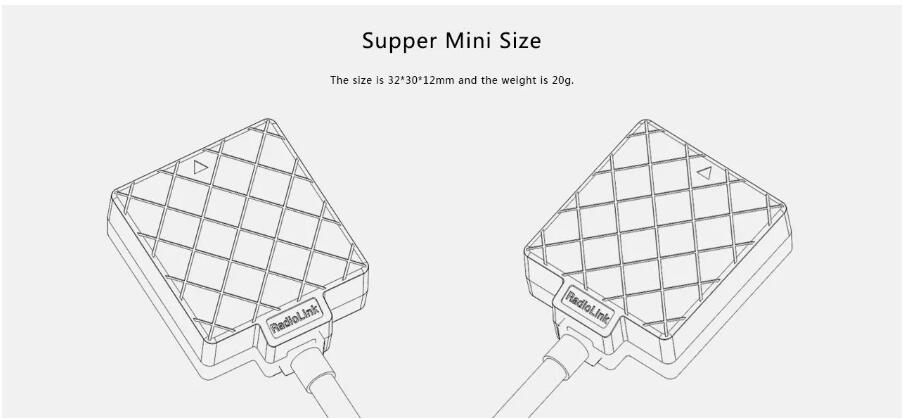

    Size: 32*30*12mm
    Weight: 20g
    Positional accuracy: 50 centimeter precision when working with concurrent GNSS
    Velocity precision: 0.1m/s
    Max height: 50000m
    Max speed: 515m/s
    Max acceleration: 4G
    Max update rate: up to 10Hz

    Sensitivity:
    Tracking & Nav.: -167dBm, Reacquisition: -163dBm
    Cold start: -151dBm, Hot start: -159dBm
    Time to first fix: Cold start: 26s, Hot start: 1s

    Connect ports:
    Power supply: voltage 5VDC+-5%, current 50~55mA

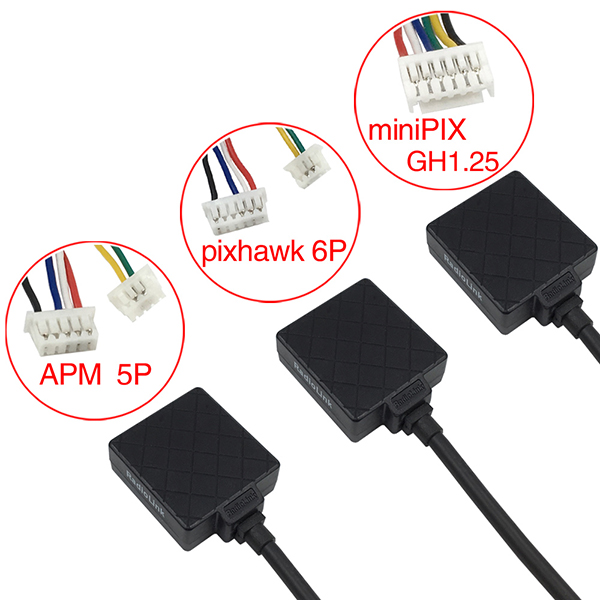

    Ports:
    A. GPS UART interface
       baud rate: 1.2K/4.8K/9.6K/19.2K/38.4K/57.6K/112.5K
    B. Geomagnetic I2C interface

    Includes/Requires:

    Includes:
    1 x RadioLink M8N GPS Module TS100
