Lithium Polymer (Li-poly) & Ni-Mh battery packs, battery chargers, Electric (Brushless) Motors, Electric Speed Controllers ( ESC ), Gyros, Electric Accessories etc.
   Electric (Brushless) Motors & Accessories Electric Brushless Motors - Outrunner SUNNYSKY E-R2207 1800KV Outrunner Brushless Motor for FPV Racing Drone - CCW, Blue
   Multi-rotors Motors
SKU:  2207E18BCC
SUNNYSKY E-R2207 1800KV Outrunner Brushless Motor for FPV Racing Drone - CCW, Blue
Customers rating.
Add To Wish List
Added:2020/02/21
Updated:2020/02/21
Follow Us on:


  Tags: SUNNYSKY  E-R2207  1800KV  Outrunner  Brushless  Motor  for  FPV  Racing  Drone  CCW  Blue

Features:

Specifications:

SUNNYSKY E-R2207 1800KV Outrunner Brushless Motor for FPV Racing Drone - CCW, Blue




Motor Model / KV E-R2207/ KV1800 E-R2207/ KV2580
Stator/Rotor Poles 12N14P 12N14P
Internal resistance 55.7mΩ 31.7mΩ

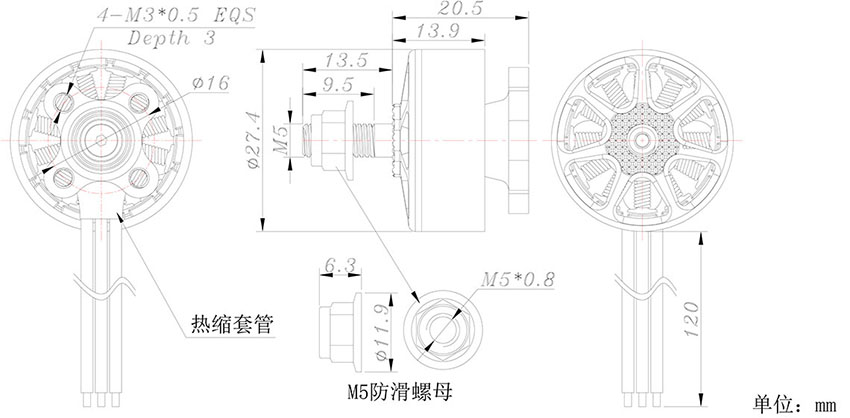

Motor size φ27.4*34mm φ27.4*34mm
Shaft diameter 8.0mm 8.0mm
AWG 20AWG 120mm 20AWG 120mm
Motor weight(wire included) 36.8g 37g
Motor weight(wire excluded) No data No data
Rated operational voltage 3-6S 3-4S
No-load current 0.9A/10V 1.6A/10V
Maximum continuous power 672W 890W
Maximum continuous current 42A/30s 53A/10s
ESC recommended use 45-50A 50A
Propeller size recommended use GF5045*3/GF5040*3 GF5045*3/GF5040*3



Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) RPM Load temperature in 100% throttle
GF5040*3 22.2 0.8 100 18 5.63 8734 80℃ 30s
2.1 200 47 4.29 12518
3.6 300 80 3.75 15208
5.2 400 115 3.47 17523
7 500 155 3.22 19888
8.9 600 198 3.04 21541
10.8 700 240 2.92 23527
12.9 800 286 2.79 25401
14.8 900 329 2.74 26701
16.8 1000 373 2.68 27918
21.8 1200 484 2.48 30788
27.8 1440 617 2.33 33491
25 0.8 100 20 5.00 8886
1.9 200 48 4.21 12630
3.4 300 85 3.53 15240
5 400 125 3.20 17749
6.7 500 168 2.99 19877
8.45 600 211 2.84 21672
10.35 700 259 2.71 23432
12.3 800 308 2.60 25208
14.1 900 353 2.55 26760
16.2 1000 405 2.47 28023
20.1 1200 503 2.39 30856
24.8 1400 620 2.26 33105
33.2 1720 830 2.07 36566
GF5045*3 22.2 0.8 100 18 5.63 7828 76℃ 10s
1.9 200 42 4.74 10734
3.4 300 75 3.97 13075
5.1 400 113 3.53 15103
7 500 155 3.22 16865
8.9 600 198 3.04 18364
10.9 700 242 2.89 20014
13.2 800 293 2.73 21440
15.3 900 340 2.65 22567
17.9 1000 397 2.52 23856
22.75 1200 505 2.38 26167
28.1 1400 624 2.24 28270
36 1670 799 2.09 31033
25 0.7 100 18 5.71 8244
1.8 200 45 4.44 10804
3.2 300 80 3.75 13175
4.8 400 120 3.33 14975
6.6 500 165 3.03 16950
8.5 600 213 2.82 18575
10.5 700 263 2.67 20066
12.5 800 313 2.56 21509
14.5 900 363 2.48 22927
16.7 1000 418 2.40 24228
21.2 1200 530 2.26 26302
25.95 1400 649 2.16 28407
31.9 1600 798 2.01 30556
37.2 1800 930 1.94 32351
42.1 1980 1053 1.88 34020





Includes/Requires:
Includes:
1 x motor CCW
