Lithium Polymer (Li-poly) & Ni-Mh battery packs, battery chargers, Electric (Brushless) Motors, Electric Speed Controllers ( ESC ), Gyros, Electric Accessories etc.
   Electric (Brushless) Motors & Accessories Electric Brushless Motors - Outrunner HL W48-30 420KV Outrunner Brushless Disk Type Motor for 6-8 rotors/ 5-10kg flight weight Aircraft
   Multi-rotors Motors
SKU:  483042
Other Items of Interest
Browse HL

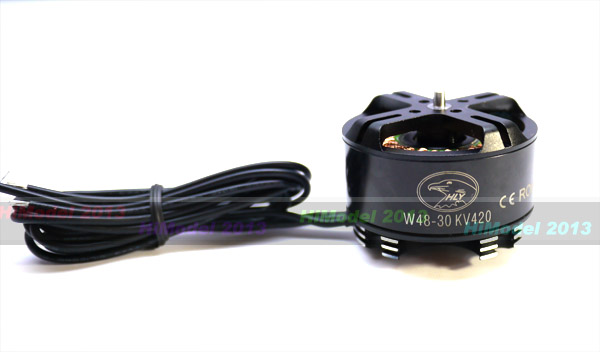

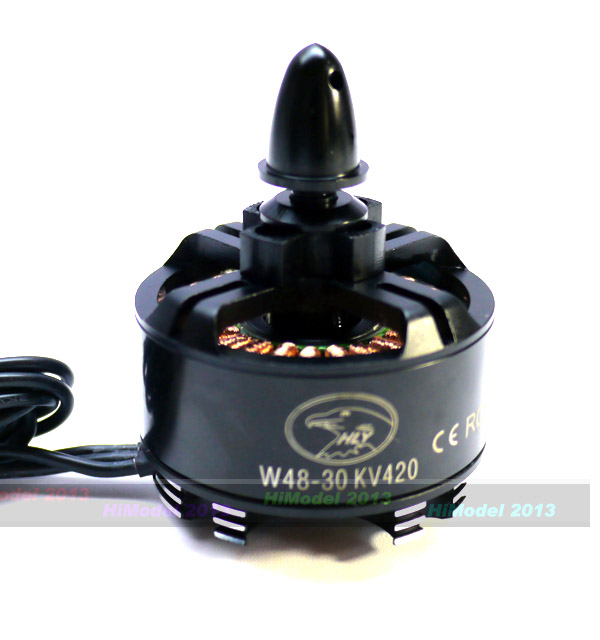

HL W48-30 420KV Outrunner Brushless Disk Type Motor for 6-8 rotors/ 5-10kg flight weight Aircraft
Customers rating.
Add To Wish List
Added:2012/05/29
Updated:2013/06/26
Follow Us on:


  Tags: multi-rotor  brushless motor

Features:
- HL disk type motors specially designed for multi-rotor aircrafts.
- Utilizing 0.2mm Silicon steel sheets.
- Well balanced at factory, ensures maximum efficiency and low noise.
- Higher g/w ratio, very good choice for muti-rotor application.
- New motor mount suits for different mounting spaces.
- New prop adaptor design, you can fix the prop with prop adaptor, or mount the new series carbon fiber props directly to the motor without using prop adaptor.


Specifications:
Model: W48-30 420KV
Idel current: 1.1A at 7.4V
Net weight: 154g
Max cell number supported: 6S Lipo
Max current: 29A
Recommended ESC: 40A
Working current: <21A
Max power: 650W
Internal resistance: 0.088Ω

Application suggestion: 6-8 rotors 5-10kg flight weight multi-rotor aircrafts.

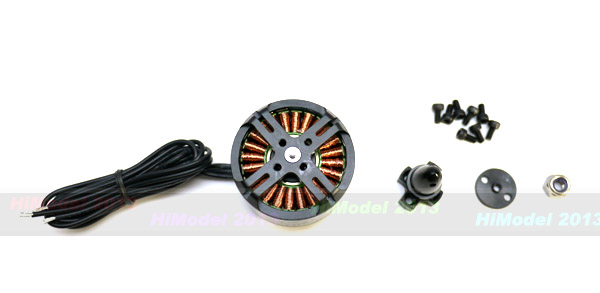

Includes/Requires:
Includes:
1 x motor
1 x prop adaptor
4 x prop adaptor screws

*Connectors are not included
