   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Air/ Helis EMCS 45A Brushless Speed Controller W/Switch mode 3A BEC Type LDG45A-S
SKU:  LDG45AS
EMCS 45A Brushless Speed Controller W/Switch mode 3A BEC Type LDG45A-S
Customers rating.
Manual:
Add To Wish List
Added:2007/12/18
Updated:2008/05/17
Follow Us on:


  Tags: EMCS  45A  Brushless  Speed  Controller  W  Switch  mode  3A  BEC  Type  LDG45A-S

Choose other components to build your saving combo:

Features:
* startup forbidden if throttle position error
* learning throttle track
* alarm and close output without receiver signal
* Global originative "6 phase(3 channel*2 arm) independent real-time
* overcurrent and overload protection", reduce the chance of output MOSFET damage to lowest
* temperature detection and protection
* low voltage detection and protection
* Multifunctionally regulate the moto characteristics
* optionally connect to PC or programmer to set menu
* real-time update hardware via PC software(under developing)
* Software optimization,compatible with over 98% of the brushless motor
* Safety Arming Feature: Regardless the Throttle Stick position, the motor will not spin after battery connected. This will prevent any injury happened.
* Throttle Calibration: Throttle range can be configured to provide best throttling linearity, fully compatible with all market available transmitters.
* Low Voltage Protection Mode(Cutoff Mode) : soft cut / cutoff,default is soft cut.
* Battery Type: Li-xx(Li-ion or Li-poly) / Ni-xx(NiMh or Nicd),default is Li-xx.
* Low Voltage Protection Threshold(Cutoff Off Voltage) : low / middle / high,default is middle.
1) For Li-xx battery,number of battery cells are judged automatically,low / middle/ high cutoff voltage for each cell are: 2.6V/2.85V/3.1V.
2) For Ni-xx battery, low / middle / high cutoff voltages are 0%(ie. never cut off )/45%/60% of the startup voltage.
* Startup mode: normal / soft / very soft,default is normal.
* Brake Mode: brake Off/low brake/middle break/high break, default is brake off
* Timing option: low / middle / high, default is middle timing.
* Programmable current limiting: very sensitive/sensitive/standard/insensitive/disable, default is standard.
* Full Protection Features: Low-voltage cutoff protection / over-heat protection / throttle signal lost protection / current high protection.
Specifications:
EMCS 45A brushless ESC With 3A SWITCH BEC
Dimensions:50*26*16mm
Weight:39g
Continuous current at 25℃:60A Burst current at 25℃:Burst 80A up to 10 Secs
Continuous current at 70℃:45A Burst current at 70℃:Burst 60A up to 10 Secs
Input Voltage:7.2V-23V
BEC (Battery Elimination Circuit) Output:3A/5V(Switch)
Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: BrushLess Motor)
Resister:0.0025Ω

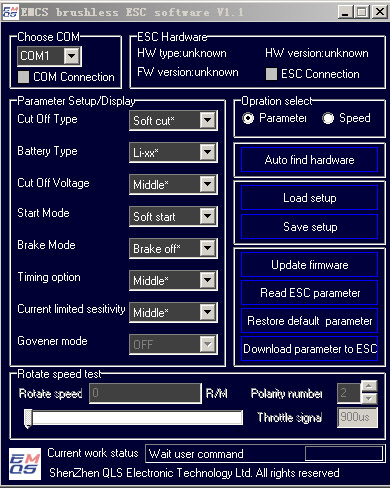

*SOFTWARE DOWNLOADS:
download emcs esc setup software

download emcs esc download EMCS ESC USB driver

Includes/Requires:
Includes:
1 x ESC
