   Electric (Brushless) Motors & Accessories Electric Brushless Motors - Outrunner DUALSKY Xmotor Heavy Duty Series High Voltage Multi-copter Motor XM7015HD-11 10-12S 150KV - V2
   Multi-rotors Motors
SKU:  7015HD11
Browse DUALSKY
DUALSKY Xmotor Heavy Duty Series High Voltage Multi-copter Motor XM7015HD-11 10-12S 150KV - V2
Customers rating.
Add To Wish List
Added:2015/12/05
Updated:2015/12/05
Follow Us on:


  Tags: DUALSKY Xmotor Heavy Duty Series Multi-copter Motor V2 2nd generation High voltage HV

Features:
This is the 2nd generation (V2) Heavy duty series for multi-copter.











Specifications:

DUALSKY Xmotor Heavy Duty Series High Voltage Multi-copter Motor XM7015HD-11 10-12S 150KV - V2



2nd Generation
Heavy duty series for
Multi-copter
NO. 51451
XM7015HD-11
RPM/V (KV) KV150
High Voltage
Weight w/o wires(g) 不含线重量350

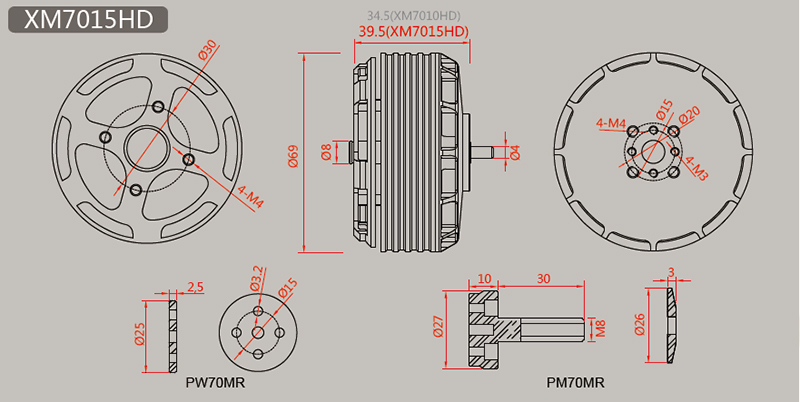

Diameter(mm)直径69
Length(mm)长度39.5
Diameter of Shaft(mm)轴径IN:8.0, Out:4.0
Propeller mounting holes
[Pitch, Size] (mm)桨安装孔距
(A)15mm, 4-M3
(B)20mm, 4-M4
Motor mounting holes 马达安装孔距
[Pitch, Size] (mm)
30mm, 4-M4
Slots,Poles槽数,极数24, 28
Idle Current(Io) @10V(A)空载电流0.6
Resistance(Ri)(mOhm)电阻98
Nominal Voltage(V)额定电压30-51V, 10-12S Lipo
Cruising power(W)[30 mins]续航功率1020
Bursts current(A)[30s]瞬时电流42
Peak power(W)[30s]峰值功率1850
Input Wire输入线16AWG, 800mm
Recommended ESC电调推荐PCU 80HV
PropellerMRP 20-22"
Propeller adapters 桨适配器Yes
Centrifugal fan 离心式风扇Yes
Dynamic balanced rotor 动平衡转子Yes
Heavy duty design 重型设计Yes
Water & dust proof 防水防尘Yes (IP34)
Maintenance free 免费维护Yes
Weight of Quad-copter(kg) 适合的四轴重量11.3
Weight of Hex-copter(kg) 适合的六轴重量17.0
Weight of Oct-copter(kg) 适合的八轴重量22.7
Memo 备注For business aerial photography and agriculture spray



Includes/Requires:
Includes:
1 x motor
