   FPV/ Aerial Photography Video TX/RX & Accy. Mini FPV 5.8G 32CH Autoscan A/V Receiver (VRX) W/ OLED Channel Display (RP-SMA, jack) R600
SKU:  RC-600

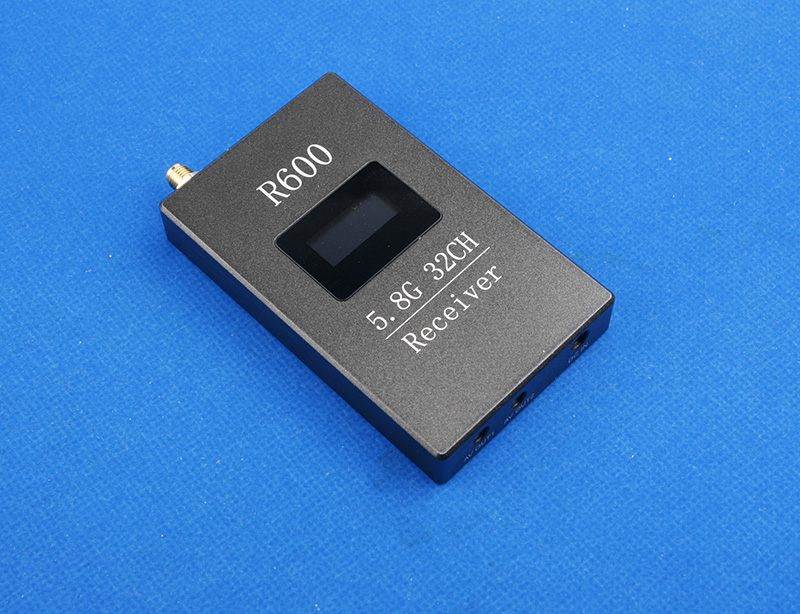

Mini FPV 5.8G 32CH Autoscan A/V Receiver (VRX) W/ OLED Channel Display (RP-SMA, jack) R600
Customers rating.
Add To Wish List
Added:2015/09/15
Updated:2015/09/15
Follow Us on:


  Tags: video recording system  FPV

Specifications:

Mini FPV 5.8G  32CH Autoscan A/V Receiver (VRX) W/ OLED Channel Display (RP-SMA, jack) R600


video format supported: NTSC/PAL  (auto)
Power input: 7-26V
Working current: 130mA @ 12V
Receiving sensitivity: -95dBm
Receiving frequency: ISM 5.8GHz 32CH

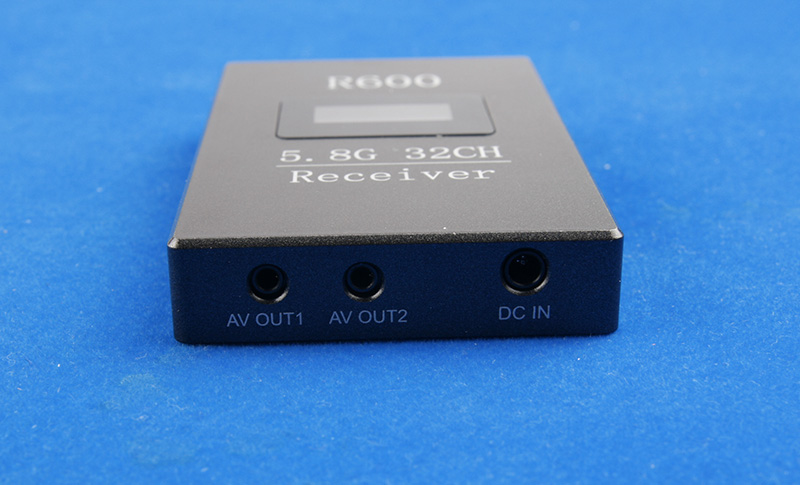

# of video output: 2
Dimension:90x54x15mm (excluding antenna)
Weight: 100g

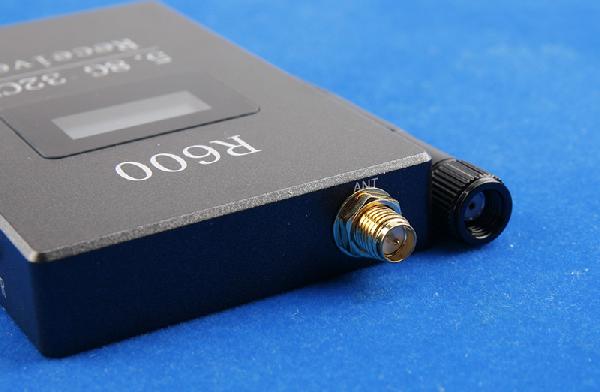

Antenna connection: RP-SMA  jack (TX module side)   Refer to here for connector type diagram

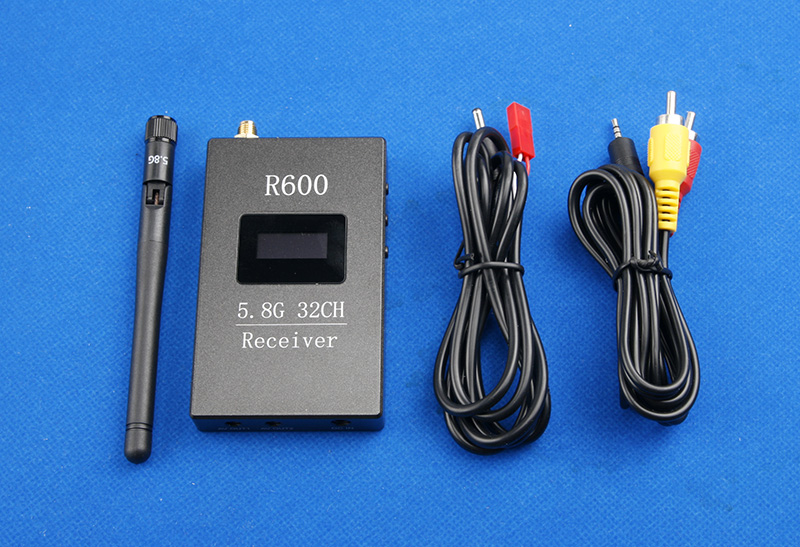

Includes/Requires:
Includes:
1 x transmitting unit (TX)
1 x cable
1 x TX antenna (2db)
* No instruction manual supplied with this product.

Requires:
1 x receiving unit (RX)
