   FPV/ Aerial Photography Gimbal/ Gimbal Controller etc. BGC Universal 3-axis/ 3-axle Brushless Gimbal Controller (Firmware upgradeable) W/ 40A 3rd Axis Expansion Board | (Nov 2013 Edition)
SKU:  BGC3D2
BGC Universal 3-axis/ 3-axle Brushless Gimbal Controller (Firmware upgradeable) W/ 40A 3rd Axis Expansion Board | (Nov 2013 Edition)
Customers rating.
Add To Wish List
Added:2013/11/23
Updated:2013/11/23
Follow Us on:


  Tags: SimpleBGC  brushless gimbal  aerial photography  3-axis gimbal control  3-axle gimbal control

Features:
THIS IS THE LATEST WITH 40A 3rd AXIS EXPANSION BOARD EDITION.

- With  latest official  firmware (Batches of different time may with different version firmwares)
- Firmware upgrade is supported when newer official version firmwares available


For more information and trouble shooting, please refer to developer's official website: http://www.simplebgc.com/eng/downloads/

Basic welding/ironing skills are required.





Specifications:

BGC Universal 3-axis/ 3-axle Brushless Gimbal Controller  (Firmware upgradeable) W/ 40A 3rd Axis Expansion Board | (Nov 2013 Edition)

Weight:  22g  (including sensor & 3rd expansion, excluding wires)
Main board size: 50 x 50mm

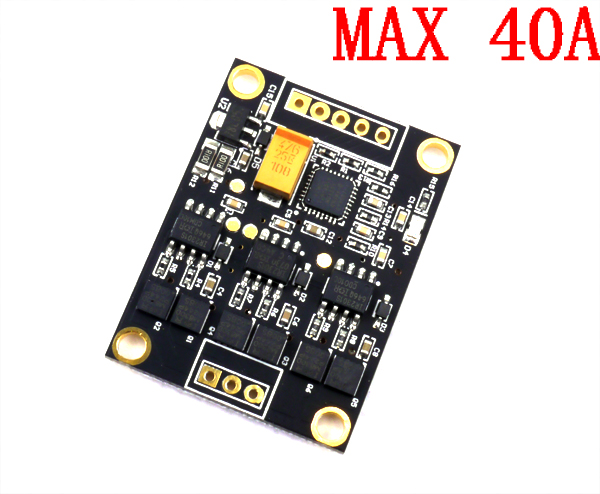

3rd expansion board dimension: 38 x 28mm
Sensor dimension: 18 x 17mm
Power input:   12V/ 3S

This is the official version, customers can upgrade the firmware to the latest official version or any official versions you prefer.

Connection diagram



Note about brushless gimbals & Controllers:

Brushless gimbals and controllers are very new to the market and it is an emerging technology. You will need some patience and effort to get it to work as seen on youtube etc.. THIS IS NOT A PLUG AND PLAY DEVICE!
You will need some understanding of Microsoft windows drivers, software settings and tuning the gimbal software to your liking and to suit your multirotor.
Getting things to work the way it’s supposed to will be YOUR RESPONSIBILITY. Please understand this before you purchase any Brushless Gimbal Related Item.



Includes/Requires:
Includes:

1 x GBC Universal Brushless Gimbal Controller main board
1 x 3rd axis expansion board
1 x sensor
1 x wire
