SPRINGRC 2.4Ghz 6-Channel Radio TX & RX Set Mode 1
Customers rating.
Manual:
Add To Wish List
Added:2008/12/19
Updated:2010/04/02


  Tags: SPRINGRC  2.4Ghz  6-Channel  Radio system  TX & RX  transmitter & receiver

  Features:
  Good value for the money 2.4Ghz radio TX & RX set from SpringRC.

*Electric trim.
*Servo range adjustable.
*V-tail mixer function.
*Mini receiver 6g weight, good for electric models.

* CE & RoHS certified.
  Specifications:

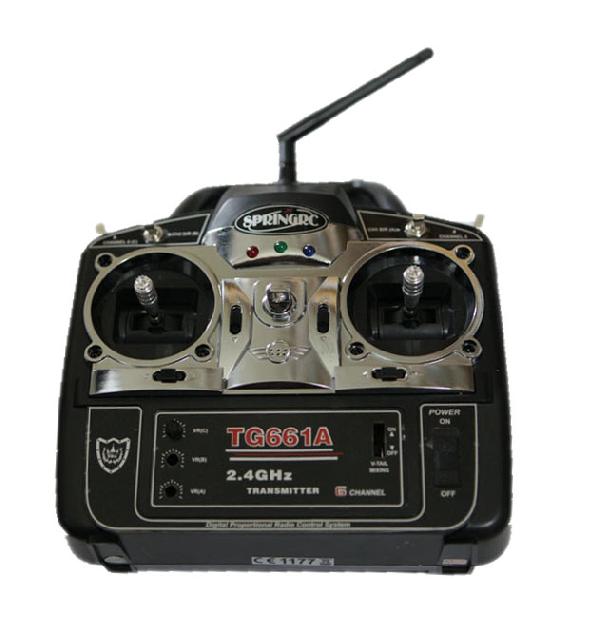

  Transmitter specification:
Type: TG661
Stick mode: mode 1 (throttle on right hand)
Frequency：2.4GHz-2.483GHz
Modulation：FSK
Size：201*192*60mm
Trim type：electronic
Temperature range：-20°－70°

(* This radio does not support CCPM mode, so it can not be used with CCPM mode helicopters, also there is no trainer port for this radio, the switch on left top sometime is marked as Trainer which is for Flap actually.)

Receiver type：RG661
Channel number: 6 channels
Voltage：4.8--6V
Weight：6g
Size：34*20*14mm
Antenna length：14cm
  Includes/Requires:
  Includes:
1 x transmitter 2.4g
1 x mini 6-ch receiver
  Comments:
  HiModel Note:
Binding method:
1-press and hold on the button on the back of the radio and switch on the transmitter.
2-Switch on the radio (Switch on the transmitter first, NOT the receiver, and the button on the back should be held down while switching on)
3-the blue LED will blink slowly
4-press & hold down the button on the receiver frequency
5-connected the receiver with the button held down for no less than 2 seconds (The button on receiver must be hold down, and can only be released 2 seconds later since the receiver battery is connected)
6-LED of the receiver is not lit (There is no visible changes in this process)
7-Disconnect the power of both receiver & transmitter.
8-Re-power on the transmitter (Do NOT press the button on the back, and the transmitter MUST be powered on first)
9-Re-power on the receiver, the LED of the transmitter will flash several times, and becomes steady light, the receiver LED will also flash several times, and then becomes steady light, now they are successfully bind.
