   Radios Radio Sets 2.4G Radio System Jumper T8SG Multi-Protocol 2.4G 10CH Compact Transmitter for Flysky Frsky DSM2 Walkera Devo Futaba
SKU:  JPT8SG

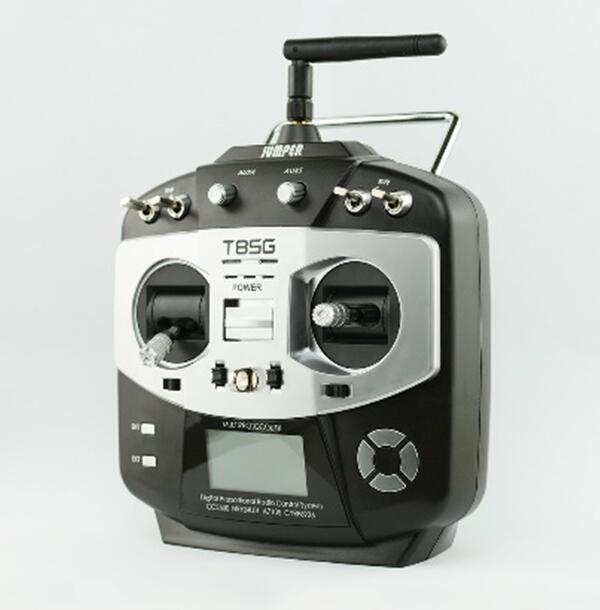

Jumper T8SG Multi-Protocol 2.4G 10CH Compact Transmitter for Flysky Frsky DSM2 Walkera Devo Futaba
Customers rating.
Add To Wish List
Added:2017/09/18
Updated:2017/10/10

Follow Us on:


  Tags: Jumper T8SG Multi-Protocol 2.4G 10CH Compact Transmitter for Flysky Frsky DSM2 Walkera Devo Futaba

  Features:

The Jumper T8SG Multi-Protocol radio features a compact size and a host of protocol options all built in to one product. The CC2500, NRF24L01, A7105 and CYRF6936 RF Chip modules are all integrated with the main RF Module. Various protocols can be quickly and easily selected from the model menu allowing you to bind the radio to just about any major protocol in todays market. The T8SG also features sound and vibration alerts, back lit LCD display, smooth gimbals and assignable switches.

The T8SG is a truly portable solution for all your models without compromising on that real radio feel and functionality. Control all your favorite RC items from one radio and have more space for models!


DeviationTX Software comes pre-installed with the T8SG.
  Specifications:

Jumper T8SG Multi-Protocol 2.4G 10CH Compact Transmitter for Flysky Frsky DSM2 Walkera Devo Futaba


Brand Name: Jumber
Item Number: T8SG
MCU: STM32F103RCT6
Storage: 25VF016B (2MB)
4IN1 RF chip: JP-4MP(CC2500, NRF24L01, A7105, CYRF6936)
Transmission power: adjustable 0-150mw
Display screen: 128*64, 1.7 inch LCD
Channels: 10 (up to 12 depending software)
Prompt mode: sound and vibration
Power supply: 4*AA or 2S Lipo
Dimension: 188*151*86mm
Weight: 338g (not include battery)

RF Chip Data
Cyprus Semiconductor CYRF6936: DSM/DSMX, Walkera Devo
Texas Instruments CC2500: FrSky, Futaba SFHSS
Amiccom A7105: FlySky, FlySky AFHDS2A, Hubsan
Nordic Semiconductor NRF24L01: HiSky, Syma, ASSAN and most other Chinese models


MacnufacturerRF ChipExample Protocols
Cyprus SemiconductorCYRF6936DSM/DSMX
  Walkera Devo
  J6Pro
Texas InstrumentsCC2500FrSky
  Futaba SFHSS
AmiccomA7105Flysky
  Flysky AFHDS2A
  Hubsan
Nordic SemiconductorNRF24L01HiSky
  Syma
  ASSAN
  and most other Chinese models



  Includes/Requires:

Includes:
1 x Jumper T8SG Multi-Protocol 2.4G 10CH Compact Transmitter

* Receiver is NOT included.
