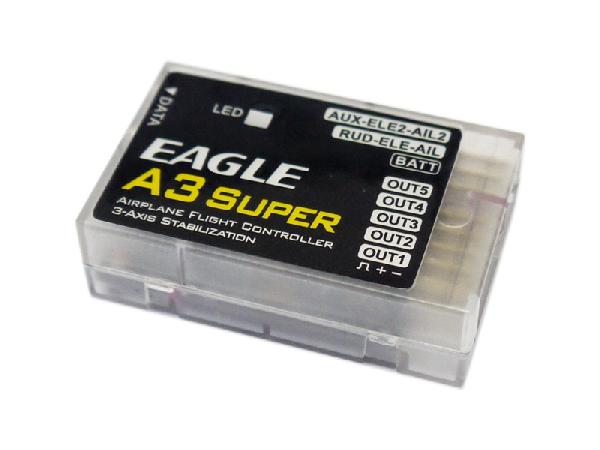

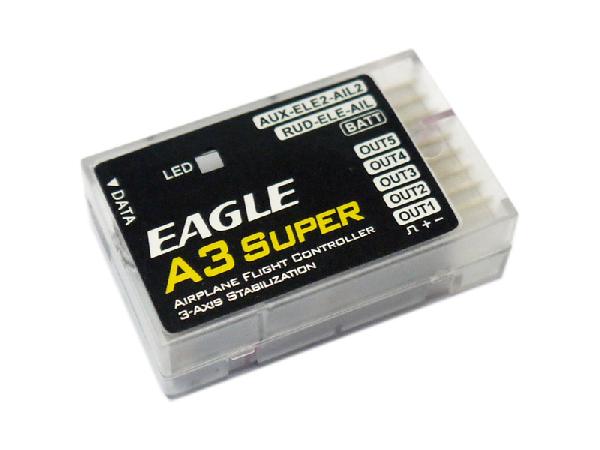

A3 Super is the latest RC flight controlsystem of EAGLE's A3 Series. It is designed especially for fixed-wing. With anintegrated built-in high precision 6-axis (3 gyro + 3 acc) MEMS sensor andadvanced attitude and PID control algorithm, the controller can accuratelydetect the angular velocity and attitude of the aircraft and issue commands toall servos, which enables the balance and stability throughout the flight. A3Super provides mixing functions of delta-wing (flying-wing), v-tail and alsosupports separate dual aileron and dual elevator controls. It can be used innearly any type of RC aircrafts.
A3 Super offers four flight modes,including Normal Stabilization Mode, 3D Attitude Locking Mode, Self-balance Mode and Gyro Deactivated Mode. It also provides three kinds of control behavior including Stable Mode, Normal Mode and Sport Mode to meet the need of various user's requirement.

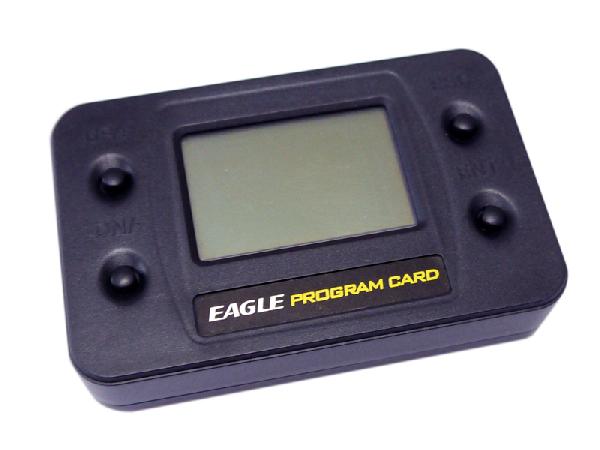

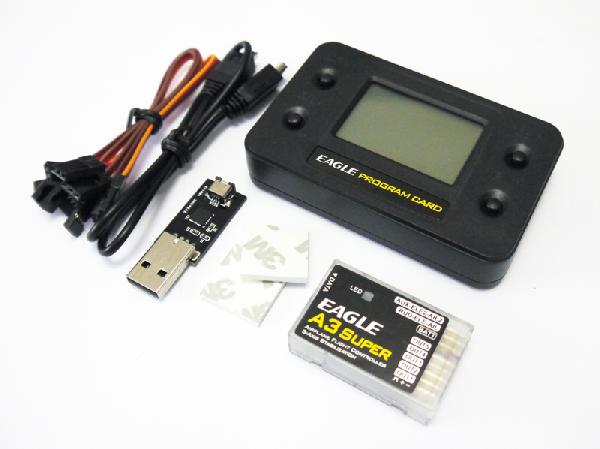

We also provide you a program card. Without connecting to a PC, you can easily setup all the functions and parameters even during the outdoor flight. The firmware can be upgraded through the USB adapter.
l Integrated design of 6-axis (3 gyro+3 acc ) MEMS sensor forself-stability and self-balance.
l 4 flight modes: Normal Stabilization, 3D Attitude Locking,Self-balance and Gyro Deactivated Modes.
l 3 control behaviors: stable, normal and sport modes.
l Separate dual aileron and elevator with dual input supported.

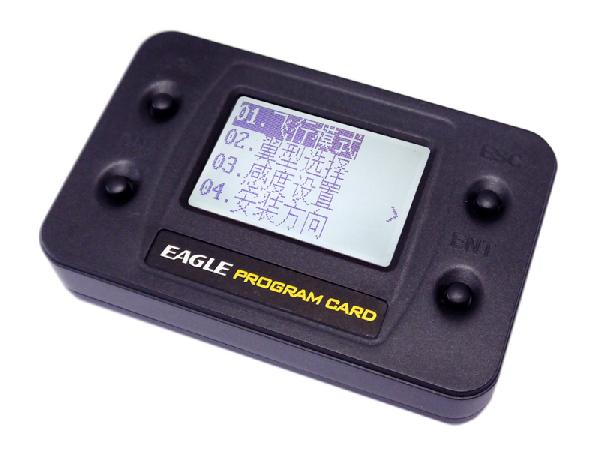

l Easy-to-use program card which supports both Simplified Chinese andEnglish.
l Independent gyro gain adjustment and gyro ratio selection for eachflight mode.
l Separate adjustments of servo travel limit to both sides of neutral.
l Mixing functions of delta-wing (flying-wing) and v-tail.
l More advanced configurations can be customized such as servo operating frequency, gyro response rate, gyro switch, level offset, stick centering and stick deadband.
|
l Gyroscope: ±2000 dps
l Accelerometer: ±4g
l Input Voltage: DC5V~9V
l Supported Servo Type: 1520μsanalog and digital servo
l Operating Temperature: -40 ℃ ~ 85 ℃
l Size: 43×27mm
l Weight: 10g (excludingreceiver wires)
l Flight Mode (NORM/3DAL/SBAL 3-position assignment)
l Wing Type (Normal/Delta-wing/V-tail)
l Normal Gain (Aileron/Elevator/Rudder 0~100%)
l 3D Flight Gain (Aileron/Elevator/Rudder 0~100%)
l Self-balance Gain (Aileron/Elevator 0~100%)
l Gain Ratio (NORM/3DAL/SBAL S/M/L)
l Mount Orientation (Face Up/Face Down)
l Servo Limits (AIL-L/AIL-R/ELE-U/ELE-D/RUD-L/RUD-R 0~100%)
l Gyro On-Off (3-axis ON/OFF)
l Gyro Direction (3-axis NOR/REV)
l Servo Frequency (55Hz/66Hz/83Hz/111Hz/166Hz/333Hz)
l Response Rate (Very Slow/Slow/Standard/Fast/Very Fast)
l Control Behavior (Stable/Normal/Sport)
l Self-balance Delay (Roll/Pitch 0~100%)
l Level Offset (Roll/Pitch ±10°)
l Stick Centering
l Stick Deadband (0-10%)
l Data Save (5 copies)
l Data Load (5 copies)
l 语言/Language (简体中文/English)
l Device Info.
l Card Info.
l Data Reset
|
|
