  Features:

Features:

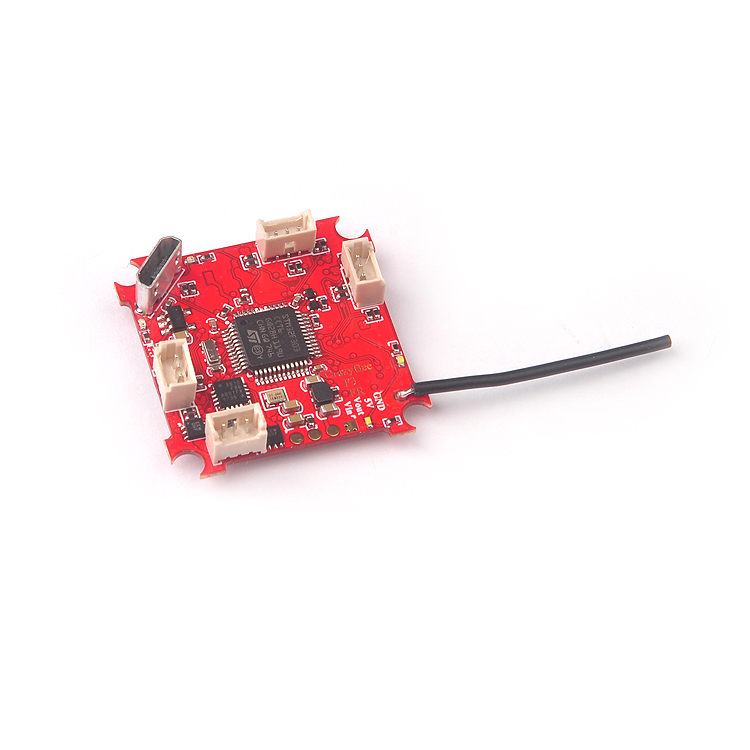

Crazybee F3 flight controller is a Ultimate version for 1S Whoop brushless racing drone, it’s the world first Tiny whoop size brushless flight controller with Receiver/4in1 ESC/OSD/Current Meter all in one design, include all your needs .
  Specifications:

Crazybee F3 flight controller built-in Frsky receiver, 4in1 esc, OSD, current meter for 1S brushless tiny whoop

Specifications:
Firmware: Betaflight_3.3.0_Crazybee
MCU: STM32F303CCT6 (72MHZ, 256K FLASH)
Sensor: MPU-6000(SPI connection)
Power supply: 1S battery input (DC 3.5-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Frsky receiver with telemetry(D8/D16 switchable)
Built-in Betaflight OSD(SPI Controll)
Built-in Current meter (Max 14A,could be modified to 28A by replace resistor)
Built-in 5V 0.8A BEC with LC filter
Built-in voltage detection
BLHELI_S pass-through Ready
Heading LED Ready
Board size: 28.5 * 28.5MM
Board weight: 3.5 g


ESC parameters:
Power supply: 1S LiPo/LiPo HV (4.2v/4.35v)
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_L_5_REV16_6.HEX
Signal Support: Dshot150/Dshot300/Dshot600/Oneshot125/Multishot/PWM


Receiver parameters:
SPI BUS receiver
Frsky D8/D16 switchable
Channels: 8ch or 16ch
Failsafe support
No ground interference ( Transmitting and receiving 1 m from the ground): 300m






                                                                                          Telemetry data (above)




                                                                                                                            OSD Display  (above)



  Includes/Requires:

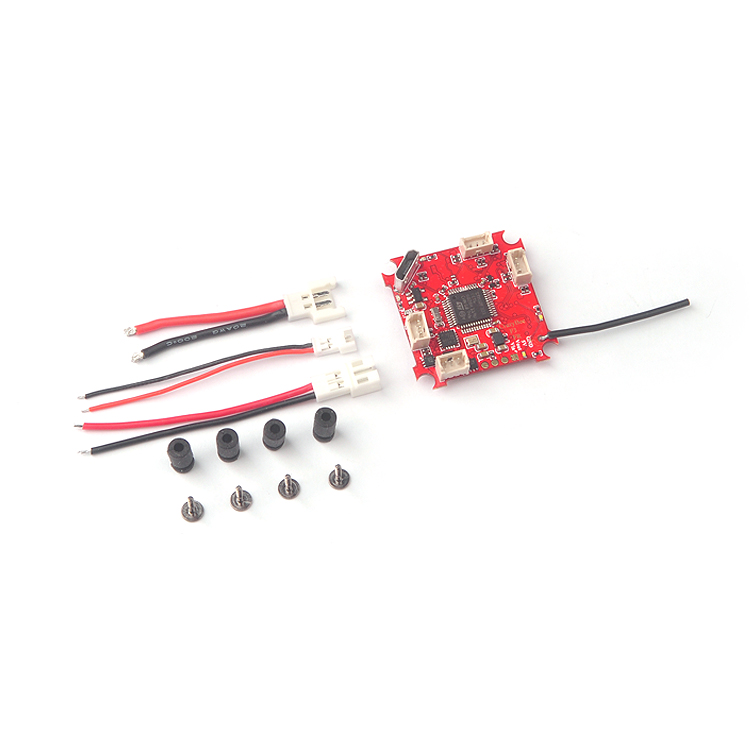

Includes:
