| SKU | SLIM2019 |
|---|---|
| Brand | FrSky |
| Added | 2019/09/13 |
| Updated | 2019/09/13 |
Features:
FrSky R9 and R9M radio control system is the first FrSky long range system which works in the frequency of 900MHz. The R9M module offers 4 switchable RF power outputs so you can choose the appropriate power for different flight situations. Compared to another FrSky 2.4GHz long range receiver like the L9R, the R9 receiver has a longer operating range up to 10KM and above. Moreover, the R9 is also a redundancy receiver which can connect to another receiver to ensure the security of your aircraft.
Features:
● 900MHz/868MHz working mode
● Long range, low latency and high precision RC system
● 4 Optional RF power (Non-EU Version)
● Telemetry mode（25mW）/non-telemetry mode（200mW / 500mW） (EU Version)
● RF Power (Flex): 10mW/100mW/500mW/1W (telemetry supported for all levels)
● Smart Port enabled and support telemetry data transmission
Specifications:
FrSky 900Mhz Long Range RF Module R9M 2019 + R9 Slim+ Receiver Combo
- Compatibility: R9 series
- Vin Voltage Range: 6.5V~13V
- External Power Supply: 6.5V~13V
- Telemetry Interface: Smart Port
- Upgrade Interface: Smart Port
- Modulations: PXX or CPPM (auto-detected)

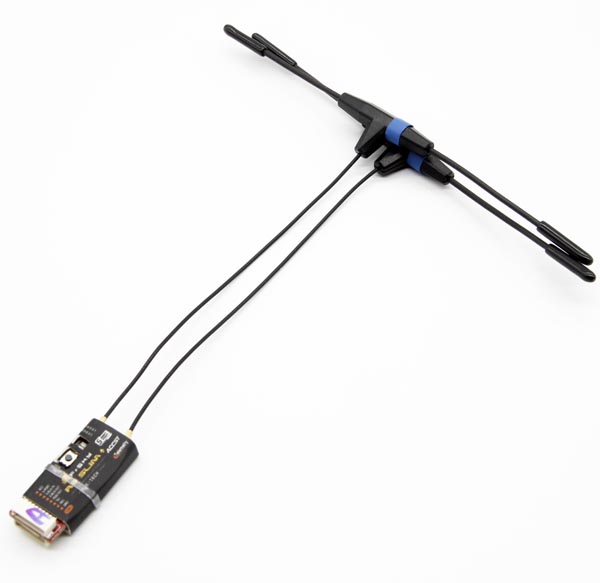

R9 Slim+ receiver Specs:
- Dimension: 32*13.5*5mm (L × W × H)
Weight: 4.3g (with antennas)
Number of Channels:
Non-EU Version: 6/16CH (Telemetry)
EU Version: 6/8CH (Telemetry) / 6/16CH (Telemetry) / 6/16CH (No Telemetry)
With RSSI Output: Analog 0~3.3V
Operating Voltage Range: DC 3.5V~12.6V(3s Li-Battery)
Operating Current: 100mA@5V
Operating Range: Up to 10km or above
Firmware Upgradable
Compatibility: R9M and R9M Lite, R9M 2019
Includes/Requires:
Includes:1 x R9M 2019 RF Module
1 x R9 Slim+ receiver
