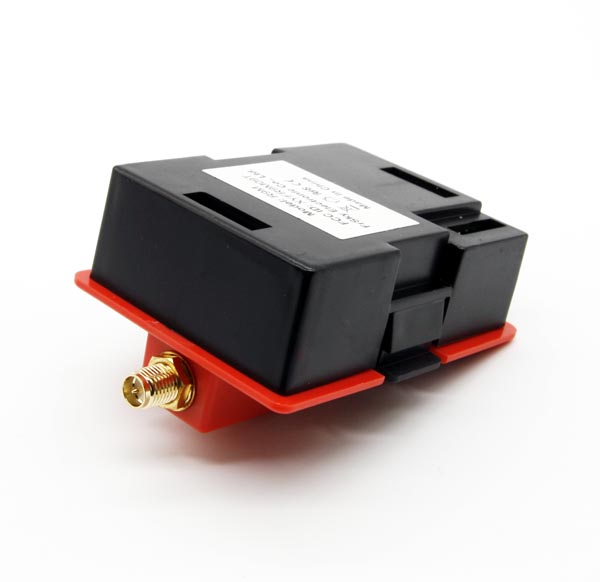

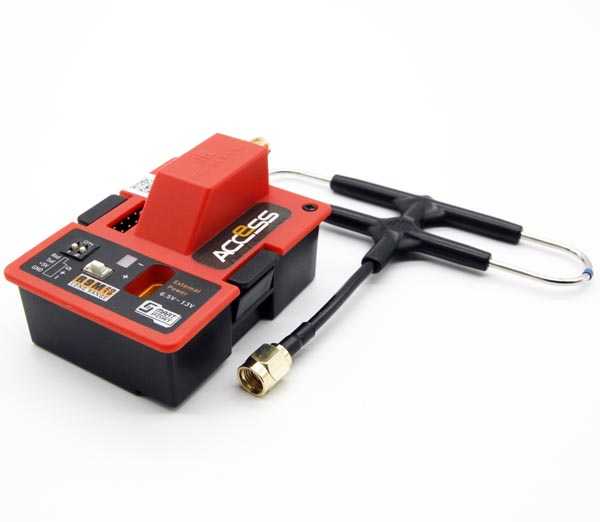

FrSky 900Mhz Long Range RF Module R9M 2019
    SKU R9M2019
    Brand FrSky
    Added 2019/09/10
    Updated 2019/09/10
    Tags: FrSky_900Mhz_Long_Range_RF_Module_R9M_2019


    FrSky R9 and R9M radio control system is the first FrSky long range system which works in the frequency of 900MHz. The R9M module offers 4 switchable RF power outputs so you can choose the appropriate power for different flight situations. Compared to another FrSky 2.4GHz long range receiver like the L9R, the R9 receiver has a longer operating range up to 10KM and above. Moreover, the R9 is also a redundancy receiver which can connect to another receiver to ensure the security of your aircraft.


    ● 900MHz/868MHz working mode

    ● Long range, low latency and high precision RC system

    ● 4 Optional RF power (Non-EU Version)

    ● Telemetry mode(25mW)/non-telemetry mode(200mW / 500mW) (EU Version)

    ● RF Power (Flex): 10mW/100mW/500mW/1W (telemetry supported for all levels)

    ● Smart Port enabled and support telemetry data transmission


    FrSky 900Mhz Long Range RF Module R9M 2019

    • Compatibility: R9 series
    • Vin Voltage Range: 6.5V~13V
    • External Power Supply: 6.5V~13V
    • Telemetry Interface: Smart Port
    • Upgrade Interface: Smart Port
    • Modulations: PXX or CPPM (auto-detected)



    1 x R9M 2019 RF Module
