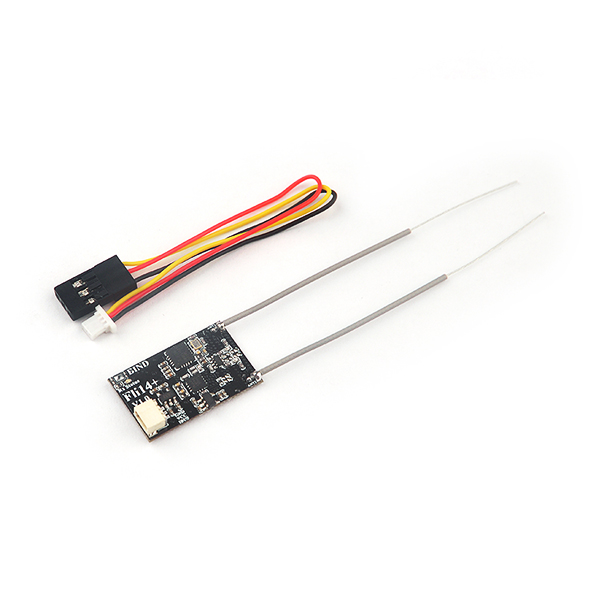

Flysky Fli14+ Mini Receiver w/ RSSI OSD Double Antenna 500m Distance for FS-i6 FS-i6S
    SKU FLI-14
    Added 2019/04/03
    Updated 2019/04/03

    Tags: Flysky_Fli14_Mini_Receiver_w_RSSI_OSD_Double_Antenna_500m_Distance_for_FS-i6_FS-i6S

    Features:

    Features:

    - Customized for Betaflight
    - RSSI Display Via OSD without any hack compatible with all Flysky AFHDS-2A protocol transmitter
    - Telemetry output: RSSI & RX Battery

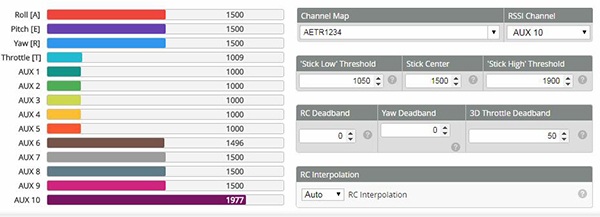

    - Support RSSI Via Channel14(Aux10 in Betaflight)
    - Best for FPV Racing drone
    - Compatible with FS-i4, FS-i6, FS-I6X, FS-i6S, FS-i10, FS-iT4S, Eachine I6 etc.

    Specifications:

    Flysky Fli14+ Mini Receiver w/ RSSI OSD Double Antenna 500m Distance for FS-i6 FS-i6S


    Channel #: 14
    Protocol: AFHDS-2A
    2.4G Mode: The second generation of an enhanced version of the automatic FM digital system
    Antenna Length: 70mm  (Dual Antennas)
    Input Power: 4.0-6.5V DC
    Weight: Only 1.7g
    Size: 25mm*15mm*5mm
    Color: Black

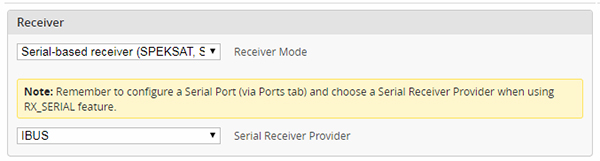

    Signal Output: IBUS
    RSSI Output: Channel14
    No ground interference ( Transmitting and receiving 1 m from the ground): >500m



    Binding procedure:
    1.Power for the Fli14 Receiver while press and holding the bind button
    2.The LED will blinking fast , this indicates the receiver is in binding mode
    3.Get the Flysky transmitter into binding mode , the LED on the receiver will getting to be solid and this indicates binding successfully





    Includes/Requires:

    Includes:
    1 x receiver
    1 x cable
