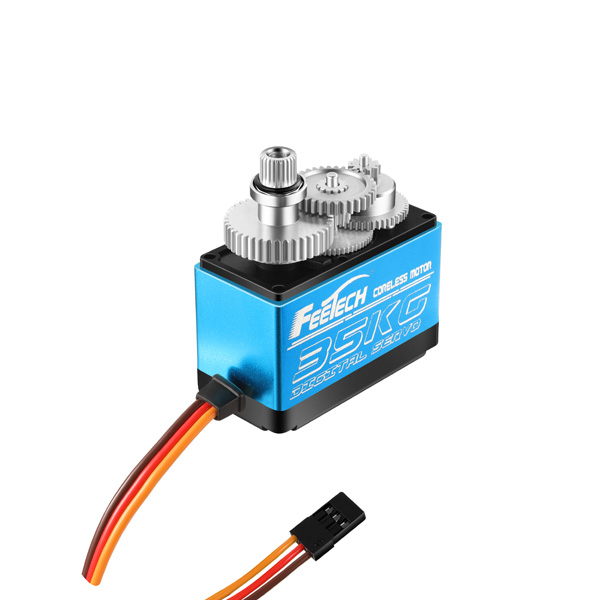

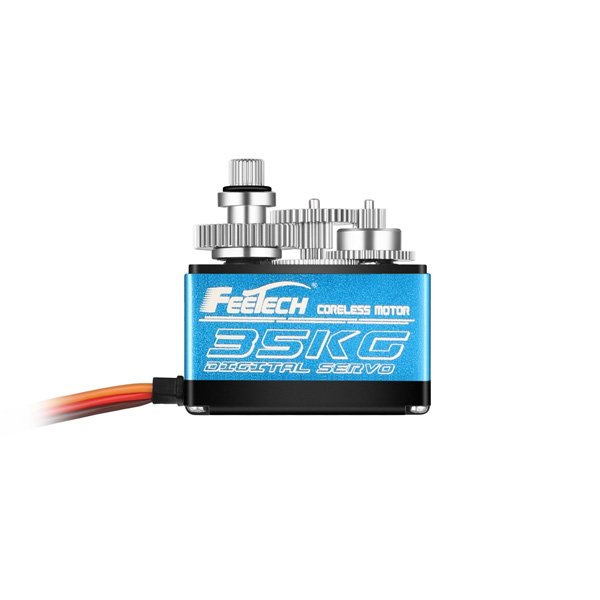

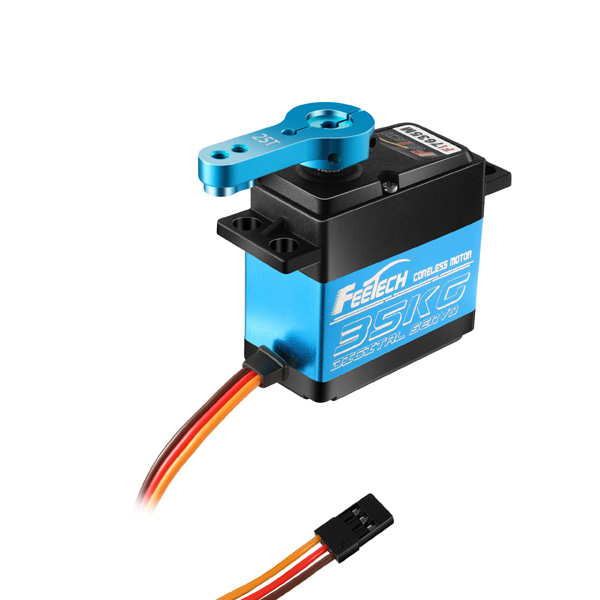

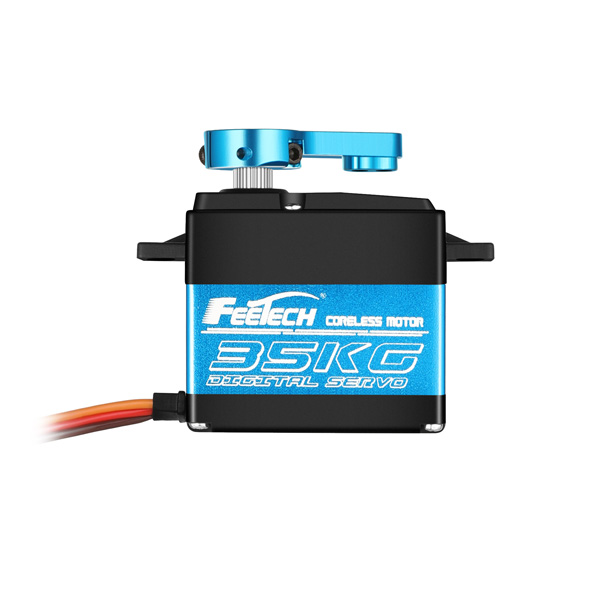

FeeTech 7.4V 35kg .138sec Coreless Motor Metal Gear 180 degree Digital Servo F17635
    SKU FI7635
    Added 2020/10/07
    Updated 2020/10/07

    Tags: FeeTech_7.4V_35kg_.138sec_Coreless_Motor_Metal_Gear_180_degree_Digital_Servo_F17635

    Specifications:

    FeeTech 7.4V 35kg .138sec Coreless Motor Metal Gear 180 degree Digital Servo F17635


    项目(Item)规格(Specification)规格(Specification)
    工作电压 Operating Voltage6V7.4V
    空载速度 No Load Speed0.172sec/60°(58PM)0.138sec/60°(72RPM)
    空载电流
    Running Current ( no load)
    120mA150mA
    堵车扭力 Stall Torque (at locked)28.8kg.cm35.5kg.cm
    400.65oz.in493.86oz.in
    堵转电流
    Stall Current (at locked)
    2.8A3.5A
    静态电流
    Idle Current (at stopped)
    6mA6mA
    工作电压 Input Voltage4V-8.4V
    额定负载 Rated Torgue9.5kg.cm11.8Kg.cm
    额定电流 Rated Current950mA1150mA
    Kt常数10kg.cm/A

    项目(Item)规格(Specification)
    外观尺寸 Size55X20X38
    机构极限角度 Limit AngleNo limit
    外壳材质 Case materialPA+Aluminum
    齿轮材质 Gear materialMetal Gear
    轴承类型 Bearing type滚珠轴承 Ball bearings
    角度传感器 Angle Sansor类型TypeCarbon-Film Potentiometer
    角度 Angle220°
    寿命 Life1000000Cycles Min
    连接器和电缆
    Connector and Cable
    类型 TypeJR
    Material材质PVC
    线长度Length30CM
    引脚定义
    Pin Definition
    1Signal
    2Vcc
    3GND
    重量The Weight 65± 1g
    出力轴 Horn Type25T/5.9mm
    减速比Gear Ratio1/356
    齿轮虚位Back Lash≦0.5°
    摇臂虚位
    The rocker phantom
    出力轴螺丝
    The rocker screw
    M3X6
    马达MotorCoreless Motor

    Includes/Requires:

    Includes:
    1 x servo
    1 x accessory bag
