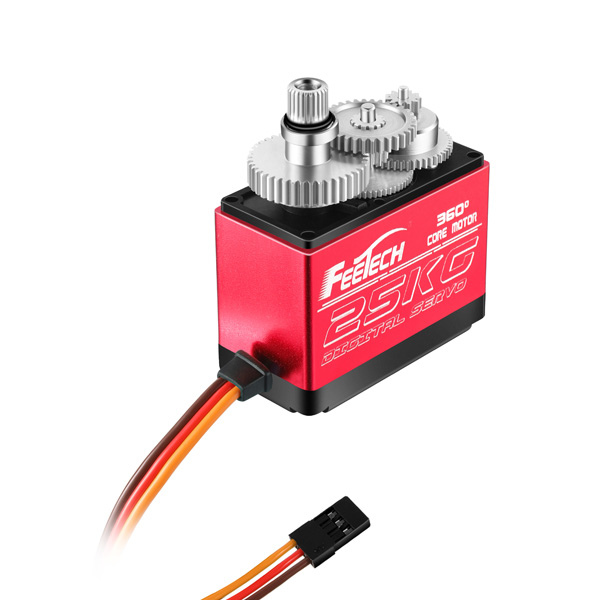

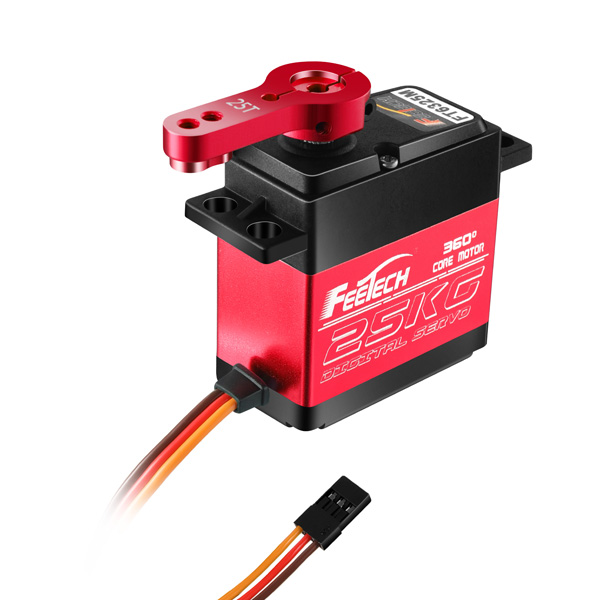

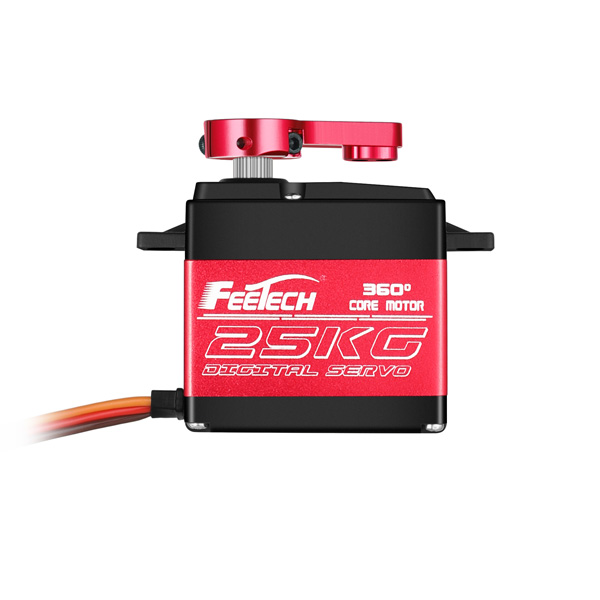

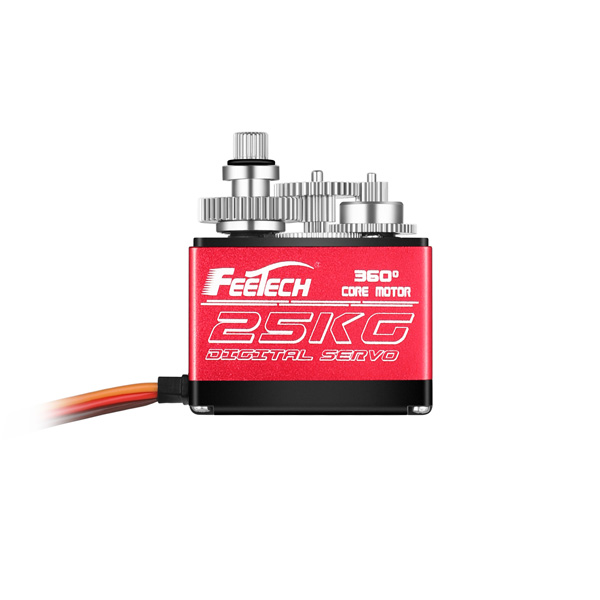

FeeTech 7.4V 25kg .151sec Metal Gear 360 degree Magnetic Coded Digital Servo FT6325M
    SKU FT6325
    Added 2020/10/07
    Updated 2020/10/08

    Tags: FeeTech_7.4V_25kg_.151sec_Metal_Gear_360_degree_Magnetic_Coded_Digital_Servo_FT6325M

    Specifications:

    FeeTech 7.4V 25kg .151sec Metal Gear 360 degree Magnetic Coded Digital Servo FT6325M



    存储温度 Storage Temperature Range
    -30℃~80℃
    运行温度 Operating Temperature Range:-20℃~60℃

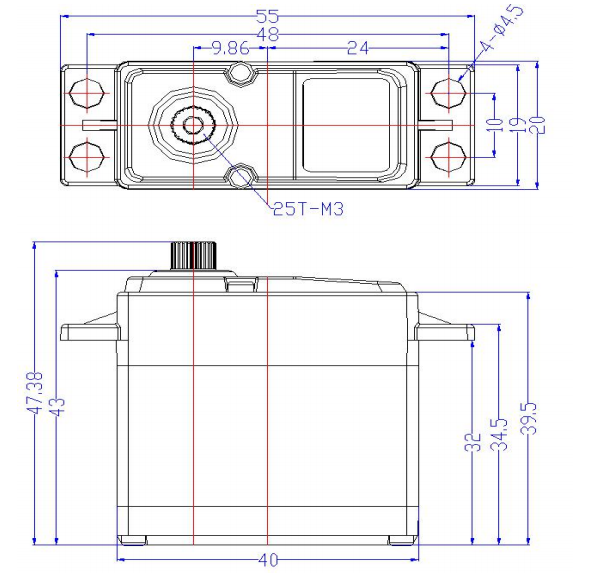

    尺寸 Size:

    A:55mm B:20mm C: 43mm

    重量 Weight:

    67土1g

    齿轮类型 Gear type:

    钢Steel

    机构极限角度 Limit angle:

    NO limit

    轴承 Bearing:Ball bearings
    出力轴 Horn gear spline:

    25T/5.9mm

    摆臂 Horn type:Plastic POM
    外壳 Case:PA+A lumi num
    舵机线 Connector wire:30CM
    马达 Motor:

    Core Motor

    工作电压Operating Voltage Range:

    6V-8.4V

    静态电流Idle current (atstopped) 6MA@7.4V

    空载速度 No load speed:

    0.151sec/60°@7.4V

    空载电流 Runnig current(at no load) :120mA@7.4V

    堵转扭矩 Peak stall torque:

    25kg.cm@7.4V

    额定扭矩 Rated torque:

    8.3kg.cm@7.4V

    堵转电流 Stall current:3.5A@7.4V
    控制信号Command si gnalPulse width modification
    放大器类型Amplifier typeDigital compara tor
    脉冲宽度范围Pulse width range500~2500 μ sec
    中立位置Stop position1500 μ sec
    旋转角度Running degree

    360° (at500→2500 μ sec)

    死区宽度Dead band width≤4 μ sec
    旋转方向Rotating direction逆时针 Counterclockwise (在1500→2000 μ sec)

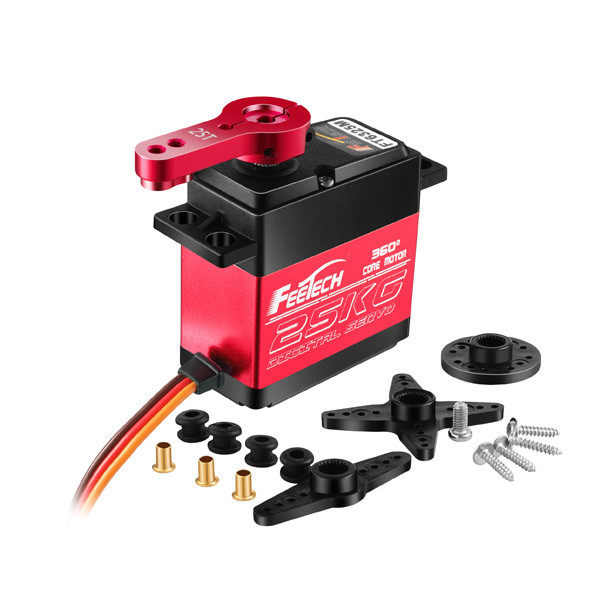

    Includes/Requires:

    Includes:
    1 x servo
    1 x accessory bag
