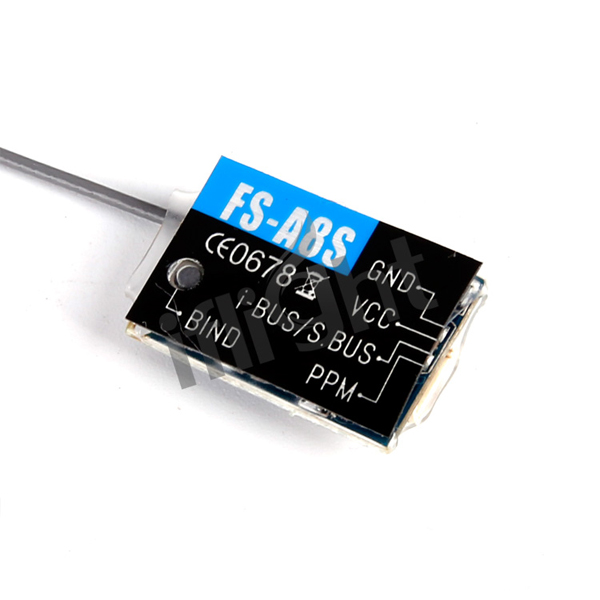

FLYSKY FS-A8S 8ch 2.4G PPM iBUS Recevier for I10 I6S I6X TM10 TM8 RC transmitter
    SKU FS-A8S
    Added 2016/12/21
    Updated 2016/12/21

    Tags: FLYSKY  FS-A8S  8ch  2.4G  PPM  iBUS  Recevier  for  I10  I6S  I6X  TM10  TM8  RC  transmitter

    Features:

    Flysky FS-A8S 2.4G 8CH Mini Receiver with PPM i-BUS SBUS Output for FS i4 i6 i6S i6X TM10 TM8 Transmitter


    - Flysky A8S mini receiver uses the AFHDS 2A(Aotumatic Frequescy Hopping Digital System) protocol,supports standart PPM output and has i-BUS support for up to 18 channels


    - Compatible Transmitter: Compatible with FS-i4,FS-i6, FS-i6S,FS-i6X,FS-i10, FS-GT2E,FS-GT2G,FS-GT2F rc transmitter


    - No ground interference ( Transmitting and receiving 1 m from the ground): 300m


    - Channels: PPM 8CH, i-BUS 18CH. DSC port: PPM/i-BUS/S.BUS


    - Mini size, light weight. Size: 20*14*5.3mm. Weight: 1.2g


    The FS-A8S is a compact 1-way receiver designed for multi-rotor aircraft.
    It uses the AFHDS 2A(Aotumatic Frequescy Hopping Digital System) protocol, supports standard PPM output and has i-BUS support for up to 18 channels.

    Specifications:

    FLYSKY FS-A8S 8ch 2.4G PPM iBUS Recevier for I10 I6S I6X TM10 TM8 RC transmitter


    Brand Name:Flysky
    Item Name:FS-A8S Receiver
    Channels: PPM 8CH, i-BUS 18CH
    Model type: Multi-rotor
    Frequency range: 2.408-2.475GHz
    Band width: 500KHz
    Band number: 135
    RX Sensitivity: -92 dBm
    2.4GHz system: AFHDS 2A
    Modulation type: GFSK
    DSC port: PPM/i-BUS/S.BUS
    Transfer method: FHSS
    Data output: 1.5mm*3 Pin PPM/i-BUS/S.BUS
    Antenna length: 26mm (Not including brass contacts)
    Input power supply: 4.0-8.4V
    Display method: LED
    No ground interference ( Transmitting and receiving 1 m from the ground): andgt;300m
    Working current: 40mA
    Each channel data: depend on the transmitter
    Channel delay: andlt;15mS
    Size: 20*14*5.3mm
    Weight: 1.2g
    Certificate: CE0678, FCCID: N45ZA8S00
    Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F


    Change i-BUS/S.BUS mode

    When turned on and bound, the transmitter and receiver can change output mode to i-BUS and S.BUS modes by pressing and holding the bind button for 2 seconds
    .LED truns off for 1 second when flashed twice:i-bus OURPUT MODE
    .led flashes twice then turns off for 1 second: S.BUS output mode active

    Includes/Requires:

    Includes:
    1 x FS-A8S receiver
