| SKU | CS239MG |
|---|---|
| Brand | CORONA |
| Added | 2020/10/09 |
| Updated | 2020/10/09 |
Specifications:
Corona CS-239MG Thin Metal Wing Analog Servo (Metal Gear) 4.6kg / 0.14sec / 22g
Item： CS239MG
Size： 30x10x34.5mm(1.18"x0.4"x1.35")
Weight： 22g(0.77OZ)
Voltage： 4.8V /6.0V
Current： 300mA / 400mA
Operating speed： 0.15sec.60º/ 0.14sec.60º
Stall Torque： 4.kg.cm / 4.6kg.cm
Dead Band： ≤5uSec
Operating Travel： 40º/One side pulse 400us
Potentiometer 3 slider/Indirect Drive
Ball bearing MR85x2
Gear Metal
Connector wire length 215mm
Operating Temperature Range -20 ℃ to +60℃
Includes/Requires:

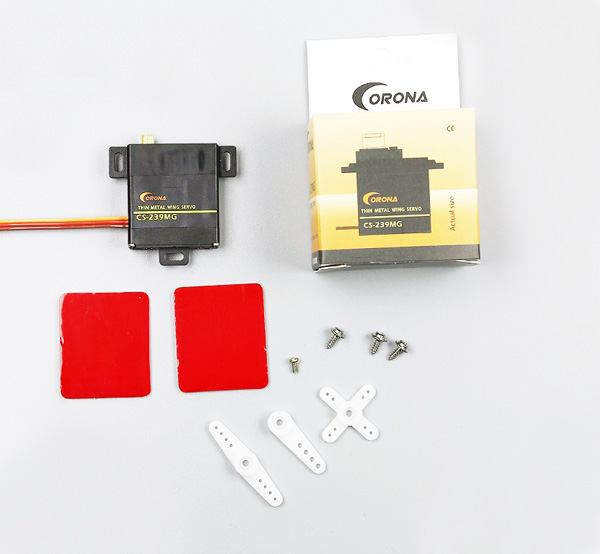

Includes:1 x servo with servo horns
