Φ6 2-point Air Retracts Kit for 120-180 Class SZ000-51001
    SKU SZ51001
    Brand HiModel
    Added 2010/12/11
    Updated 2012/07/04

    Tags: D6_2-point_Air_Retracts_Kit_for_120-180_Class_SZ000-51001

    Specifications:

    Φ6 2-point Air Retracts Kit for 120-180 Class SZ000-51001

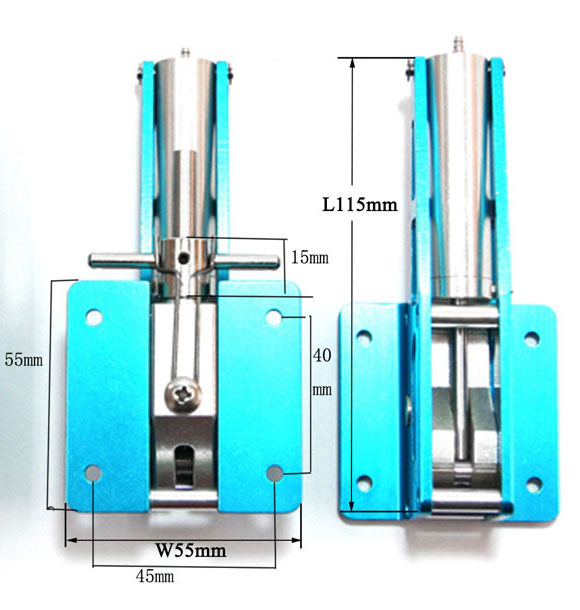

    Sizes : L115 x W55 x H32 mm
    Net Weight : 392 g
    Model class: 120 - 180 class
    Suitable model weight: 9 - 12kg
    Suitable model wing span: 2.2+ meters
    Material: Aluminum alloy.

    * Color of different batch may vary from the picture.



    Includes/Requires:

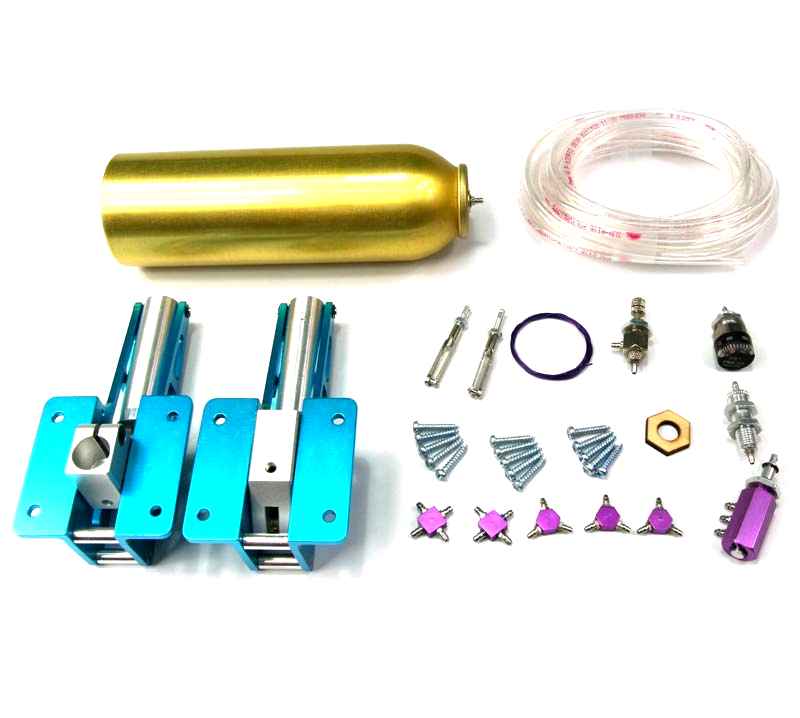

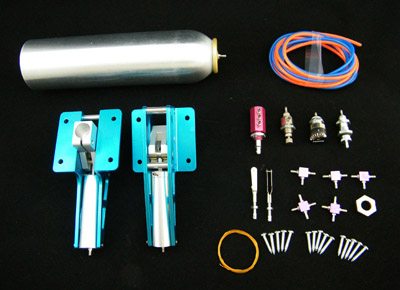

    Includes:

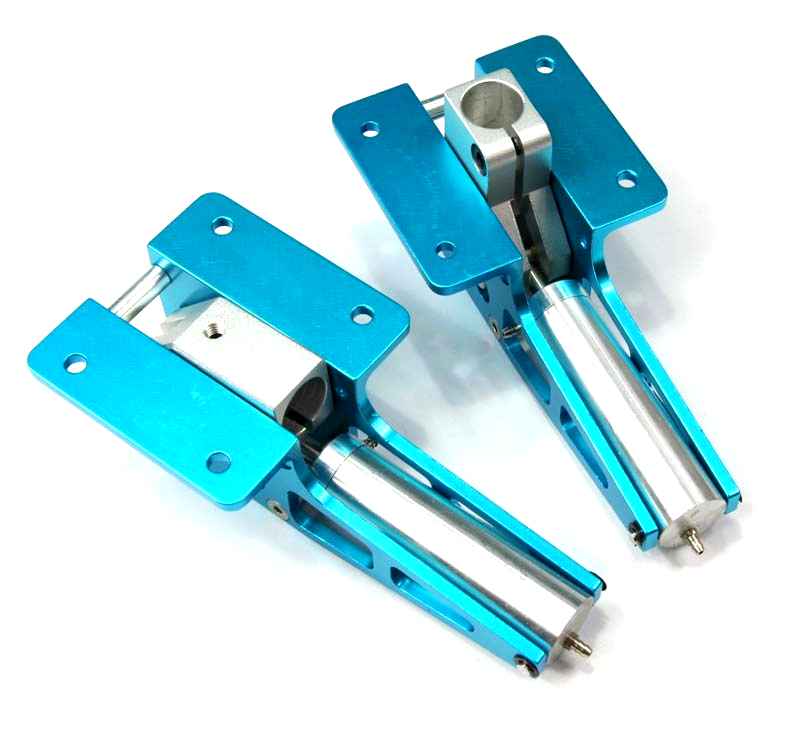

    2 x air retract gears
    1 x pressure tank
    2 x metal clevis
    1 x one way fill valve
    0 x steering arm
    1 x Fill valve ring
    1 x soft steel wire (1M)
    1 x pressure adjustable regulator
    1 x air pressure gauge
    1 x air valve
    1 x pressure tubing (4M)
    2 x air X junction
    3 x air Y junction
    15 x screws
