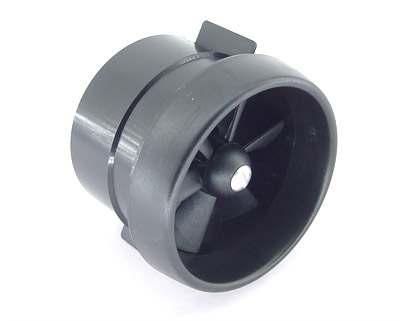

Φ65×H58 Ducted Fan ( EDF )
    SKU 03-101
    Brand HiModel
    Added 2005/06/29
    Updated 2010/09/04

    Tags: D65×H58_Ducted_Fan_EDF

    Specifications:

    Type: Φ65×H58 Ducted Fan ( EDF )
    Applicable motor: Brushed 380 class 3000 RPM above; Brushless B28 4000KV ( not included )
    Thrust: Brushed motor 250-400 g; Brushless motor 750-950 g
    Speed controller required: 25A ( brushed ); 36A (brushless) ( not included )
    Inner Diameter: 65.6mm
    Outer Diameter:69.4mm (Not including the flange nor fins)
    Hight: 44.5mm / 61mm ( Without / with the flange ring )
    Motor Housing Inner Diameter:29mm
    Motor Collet Diameter: 3.17mm motor shaft
    Weight: 43g / 1.5oz

    Includes/Requires:

    Requires:
    380 Class Motors 3000 RPM above or Brushless B28 4000KV
