SP Racing F4EVO Flight Control - 2-6S Input, built-in BEC
    SKU F4-EVO
    Manual Manual 1
    Added 2017/07/19
    Updated 2018/09/28
    Tags: SP  Racing  F4EVO  Flight  Control  -  2-6S  Input,  built-in  BEC


    Software feature:
    3 primary flight modes: Acrobatic, Angle and Horizon
    Extensive control and switch configuration
    Battery Monitoring and Warnings
    Signal Strength Monitoring (RSSI)
    Failsafe system
    Altitude Hold Mode
    Heading Hold Mode
    In-flight tuning
    Customizable LED colors
    Android phone support (via EZ-GUI GCS)


    SP Racing F4EVO Flight Control - 2-6S Input, built-in BEC

    36x36mm board with 30.5mm mounting holes
    Weight ~5 grams
    STM32405 CPU, 168Mhz inc FPU
    MicroSD card slot (SD/SDHC, upto 32GB)
    ICM20602 accelerometer/gyro (connected via SPI)
    BMP280 barometer
    Built-in inverters for TELEMETRY and SERIAL RX.
    MicroUSB socket for configuration and ESC programming
    3 LEDs for 5V, 3V and STATUS (Green, Blue, Red)
    BOOT switch for easy firmware upgrades.
    Supports Cleanflight, Betaflight and iNav firmware.
    Work voltage 2s~6s
    Built in 5V 1A BEC

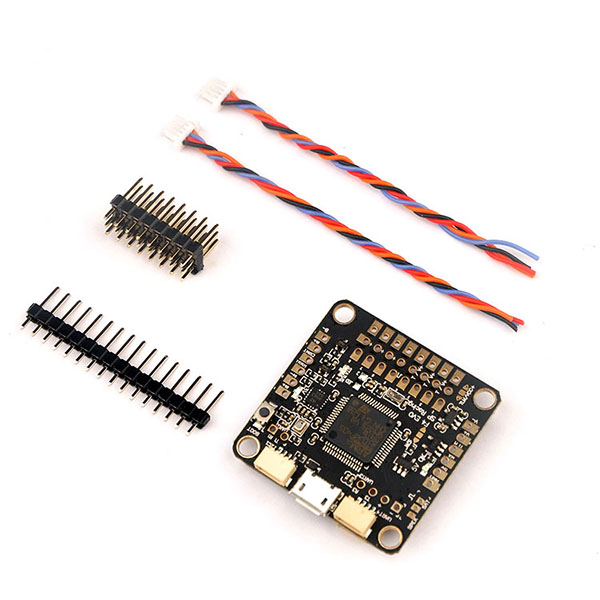

    1x  flight control board
    2 x cables
    2 x pins
