    RadioLink Ultrasonic Sensor SUI04 Obstacle Avoidance Module for Pixhawk / Mini PIX Flight Controller
    0S0104030802
    Price(USD):$12.52     In stock
    Price(USD):Member Price:$12.52     In stock Sign in for member price
    Price(USD):Buy:$12.52     In stock
    Add To Cart     Add To Wish List
    SKU SUI-04
    SKUAdded SUI-042019/03/21
    SKUUpdated SUI-042019/03/21
    SKU
    SKU

    Tags: RadioLink_Ultrasonic_Sensor_SUI04_Obstacle_Avoidance_Module_for_Pixhawk_Mini_PIX_Flight_Controller

    Features:

    Specifications:

    RadioLink Ultrasonic Sensor SUI04 Obstacle Avoidance Module for Pixhawk / Mini PIX Flight Controller


    Model: SUI04
    Size: 20*22*19mm
    Weight: 8g (with wires)
    lInput voltage: 4.5~5.5V(do not support HV)
    lCurrent: 18mA@5V
    lPower: 90mA
    lOperating temperature: -20°C~80°C
    lDetection distance: 40cm~450cm
    lDetecting precision: 0.1cm
    lAcoustic emission frequency: 40±1.0KHz
    lBeam angle: 60°(transmitting receiving hybrid)
    lFade area: 0 (it will show 40cm)
    lOutput protocol: I2C
    lDuty Cycle: 30ms

    Includes/Requires:

    Includes:
    1x Ultrasonic Sensor SUI04 Module
    1x Cable

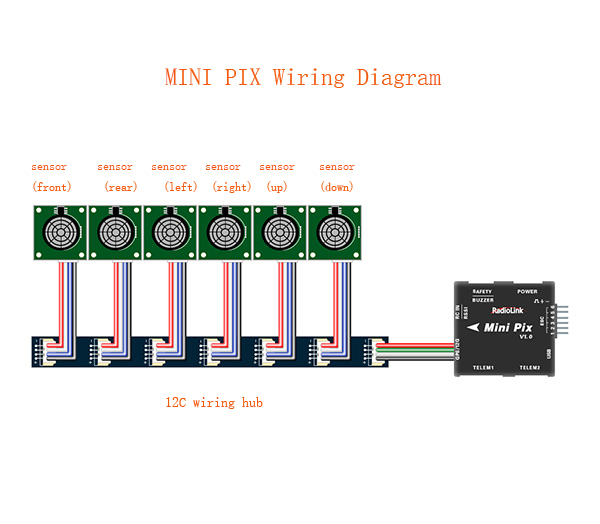

    * This is ONE sensor (with cable) only, the wiring hub and FC shown in the wiring diagram are NOT included.
