Tags: Micro  Pixhawk  PX4  Pixfalcon  Flight  Controller  W  M8N  High  Precision  GPS

Features:

New features:


- The PIXFALCON Micro flight control using same main processor and sensors, functions and hardware compatibility also same as Pixhawk flight control.
-  Buzzer and safety switch are integrated in the new version, wiring is neater. The safety switch can be installed to outer shell when your multicopter has cover for main frame.

Specifications:

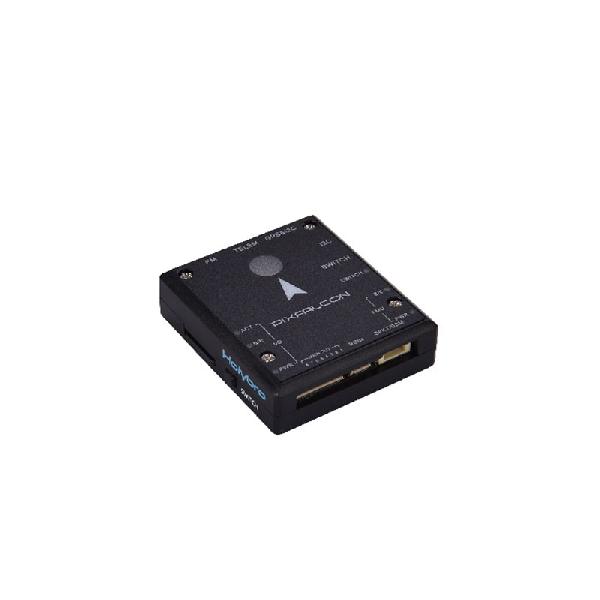

PIXFALCON Micro Flight Controller W/ M8N High Precision GPS

Processor
. 32bit STM32F427 Cortex M4 core with FPU
. 168 MHz
. 256 KB RAM
. 2 MB Flash
. 32 bit STM32F103 failsafe co-processor
Sensor
. ST Micro L3GD20H 16 bit gyroscope
. ST Micro LSM303D 14 bit accelerometer / magnetometer
. Invensense MPU 6000 3-axis accelerometer/gyroscope
. MEAS MS5611 barometer
Interfaces
. 1x UART (serial ports)
. Spektrum DSM / DSM2 / DSM-X Satellite compatible input
. Futaba S.BUS compatible input and output
. PPM sum signal input
. I2C
. Internal microUSB port
Power System and Protection
. Ideal power multiplexer with automatic current Limit
. All peripheral outputs over-current protected, all inputs ESD protected

Includes/Requires:

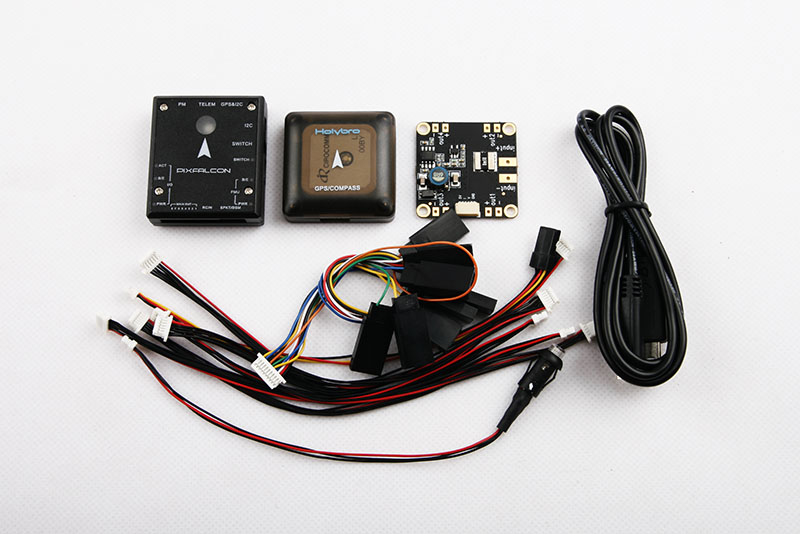

Includes:
1x PIXFALCON autopilot main board
1 x GPS
1 x current sensor
1 x USB cable
1 x wire set
