OMNI F7 Pro Flight Controller W/ OSD BEC | (Betaflight 3.2.0 firmware)
    SKU F7-PRO
    Added 2017/07/11
    Updated 2018/04/28

    Tags: OMNI  F7  Pro  Flight  Controller  W  OSD  BEC  |  (Betaflight  3.2.0  firmware)

    Specifications:

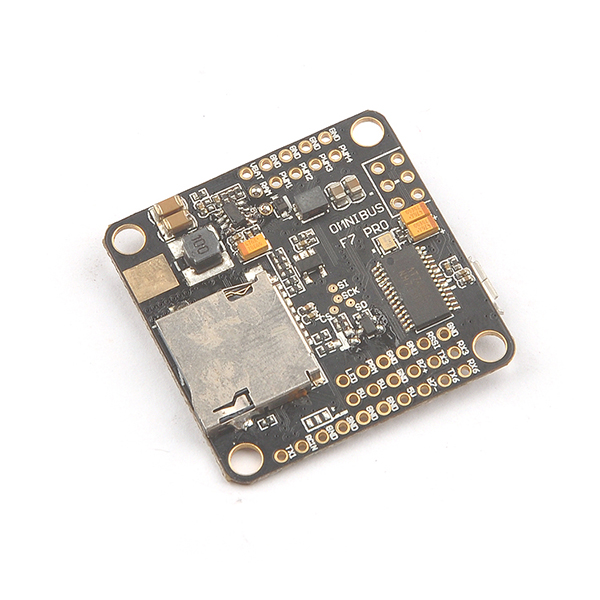

    OMNIBUS F7 Pro Flight Controller W/ OSD BEC | (Betaflight 3.2.0 firmware)

    - STM32 F745 MCU - faster than the current F3 and F4 processors
    - Two gyros on the flight controller: an MPU6000 for sampling up to 8khz and ICM20608 for sampling up to 32khz
    - Built in betaflight OSD
    - Built in Current sensor
    - Built in 5V LC-power filter
    - Built in Barometer
    - D-shot esc Support(Dshot600 Ready)
    - 36x36mm, mount holes 30.5x30.5mm
    - Weight: 6.6g
    - SD card reader for recording black box data (SD card not included)
    - Supports 2-4s natively, 5-6s with 220uf 35V capacitor
    - 5v/1A regulator
    - Support PPM/SBUS/IBUS/DSM2/DSMX protocol receiver
    - LED_strip ready pin headers
    - Buzzer ready pin headers
    - Smart port ready Pin headers
    - Compatible 4 in 1 ESC with JST-SH 1.0 6pin housing
    - Firmware version: Betaflight 3.2.0 OmnibusF7


    Includes/Requires:

    Includes:
    1 x  OMNI F7 Pro Flight Controller
    4 x  Nylon poles
    4 x screws
    4 x nuts
    3 x  set pins
