NGH GF38 38CC 4-Stroke Petrol Engine
    SKU NGH-GF38
    Brand NGH
    Manual Manual 1Manual 2
    Added 2012/11/06
    Updated 2013/07/19

    Tags: NGHengine,  petrol  engine,  gasoline  engine,  nitro  style  gasline  engine,  4  stroke

    Features:

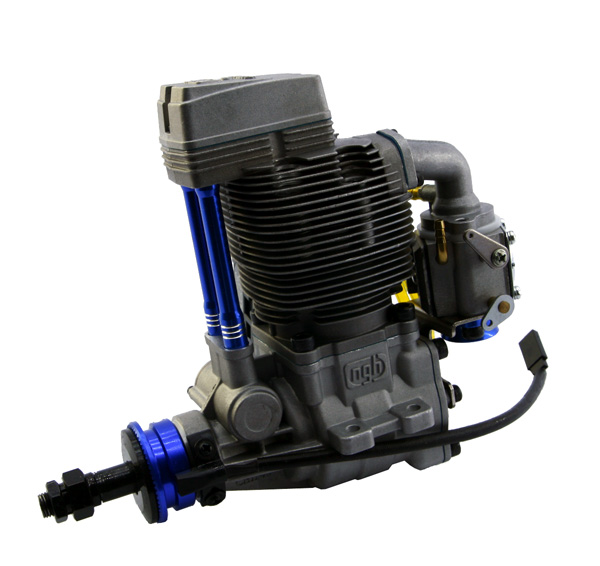

    This is the NGH GF38cc 4-stroke gasoline engine.

    Specifications:

    Type: 4-stroke Air cooled Gasoline Engine for Model Airplane Use Only
    Displacement: 37.97cc
    Bore*Stroke (mm): 39*31.8
    Compression ratio: 9
    Carburetor: Walbro custom WT1022
    RPM range: 1800-8000rpm
    Spark plug type: CM-6
    Break in fuel oil ratio: 25:1
    General use fuel oil ratio: 35:1
    Recommended propellers: 18*10, 19*8, 19*10, 20*8
    Weight: 1310g

    Includes/Requires:
