Tags: JC  Engines,  petrol  engine,  gasoline  engine,  JC-60EVO

Features:

- 2 Stroke air cooled single cylinder

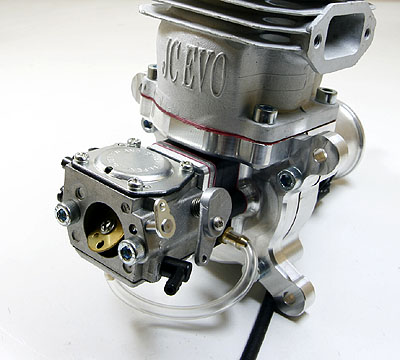

- Walbro membrane pump carburetor with dual needles and manual choke
- Automatic advancing electronic ignition

Specifications:

Engine Parameter:

Engine type ： 2—Stroke gasoline engine
Displacement：60cc
　　 Bore × Stroke: 45mm × 38mm
　　 park plug: NGK CM6 or JC CM6
　　 Carburetor: Walbro special-designing vacuum pump diaphragm type duplex needle carburetor
　　 Max power ： 6.0hp/7500rpm
　　 Practical running speed ： 1100 － 7500rpm
　　 Net Weight ：1740g (incoulding CDI and muffler) Engine:1440g, pitts:180g, Ignition:120g,
　　 Ignition system ： CDI battery ignition (battery voltage: 4.8v—6v)
　　 Grease oil ratio ： 25-30:1 used during the break-in (the initial 2 working hours); 35-40:1 used after the break-in.
Screw propeller dimension ： 23*8, 23*10, 24*8, 24*10, 25*8

Muffler interface inner size: 26 x 14.8mm (approx.)
Muffler mounting hole spacing: 40mm (approx.)

Testing video:



Fly video:

Includes/Requires:
