iSDT C4 Smart Charger (for cylindrical batteries)
    SKU ISDTC4-EN
    Added 2018/07/05
    Updated 2018/07/05

    Tags: iSDT  C4  Smart  Charger  (for  cylindrical  batteries)

    Features:


    Specifications:

    iSDT C4 Smart Charger (for cylindrical batteries)


    Model

    C4

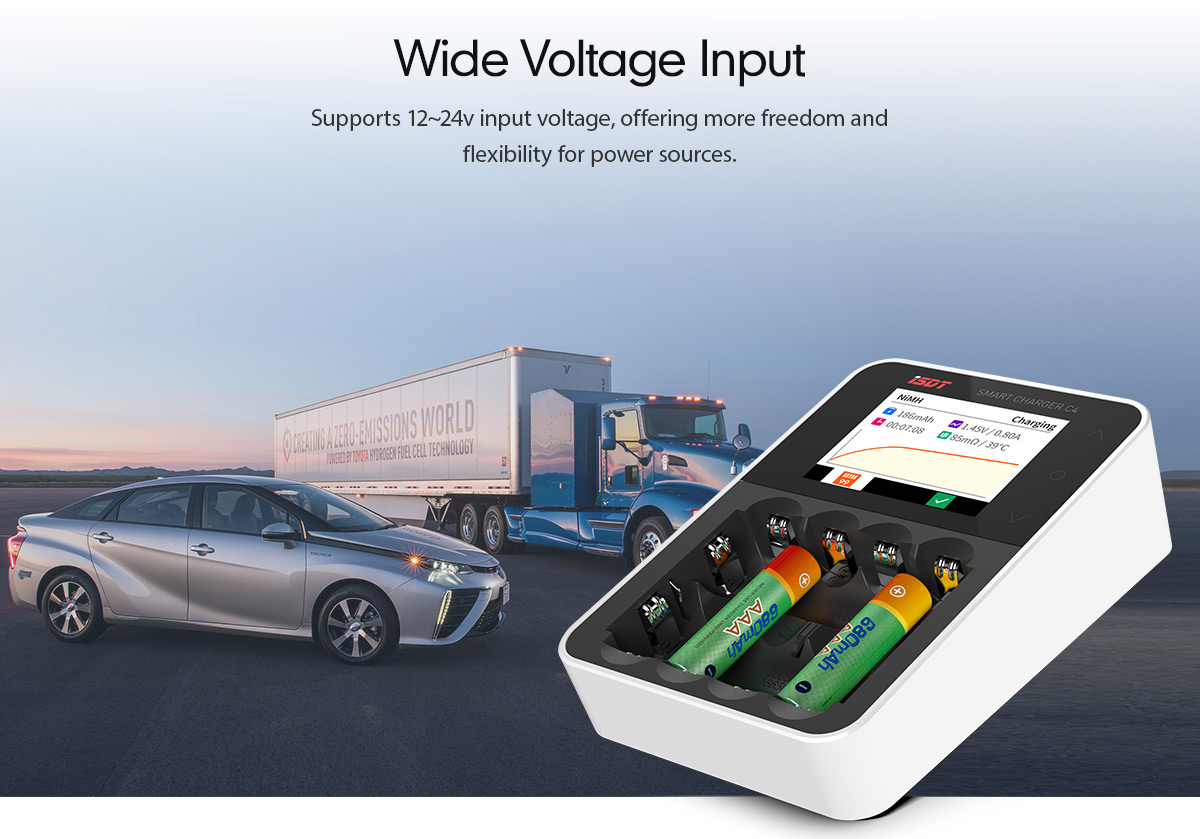

    Input PowerDC 12-24V/2.5A
    Circuit Powermax. Charge power 25W max. Discharge power 10W
    Battery Count1 – 4 single cells, cylindrical
    Battery SizeAAA,AA,10440,10500,12500,12650,
    13500,13650,14500,14650,16650,
    17650,18650,20650,22650,26650
    Operating Voltage Range0.2V – 5.0V/slot
    Battery Chemistry TypeNiMH, NiCd, NiZn, Eneloop, Li-Ion, LiHv, LiFePO4

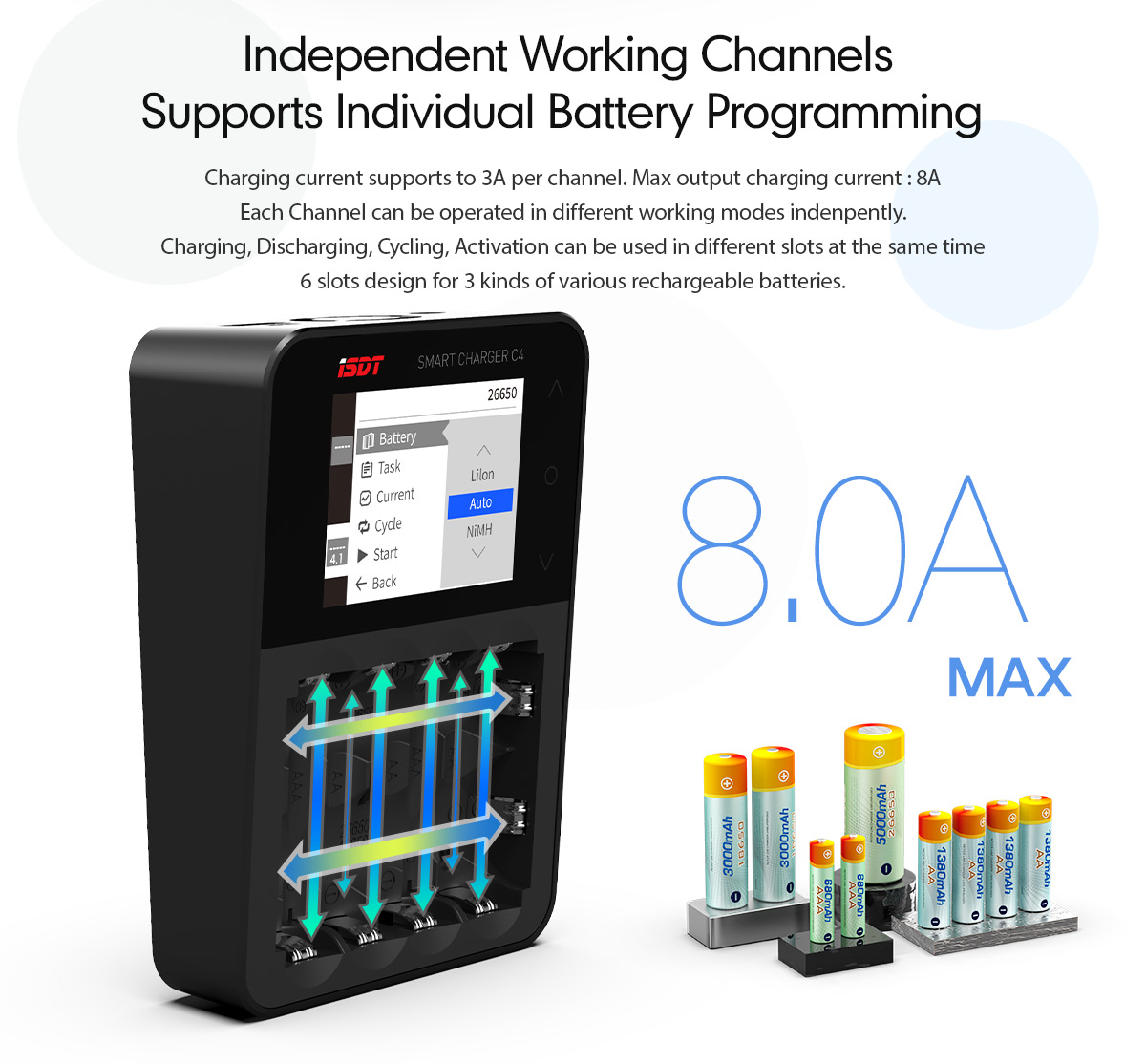

    Charge Current Range0.1A – 3.0A/slot
    Discharge Current Range0.1A – 1.5A
    Operation ModesCharge, Discharge, Storage, Cycle, Activation, Analysis
    Cycle Count1 – 66 cycles

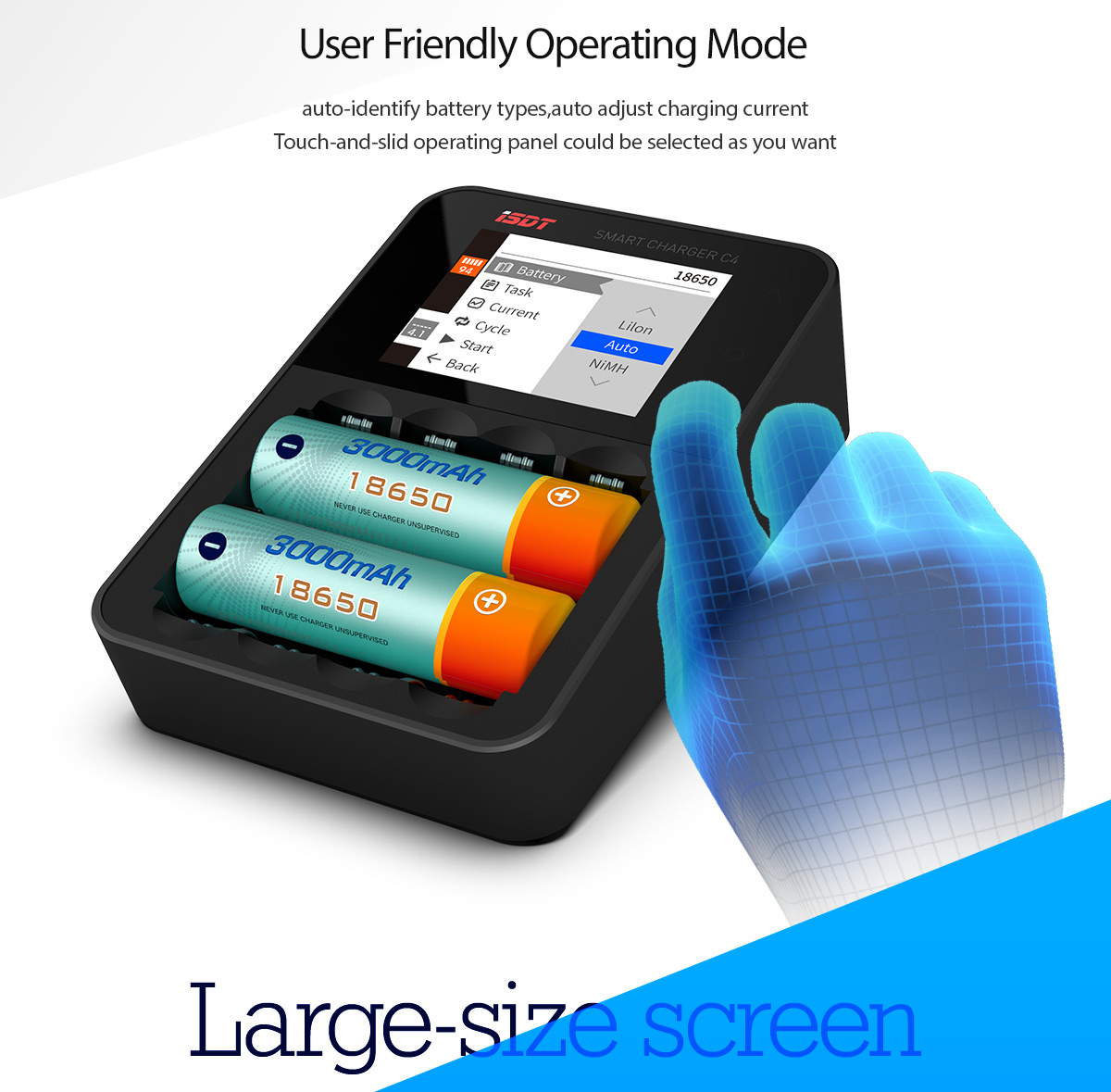

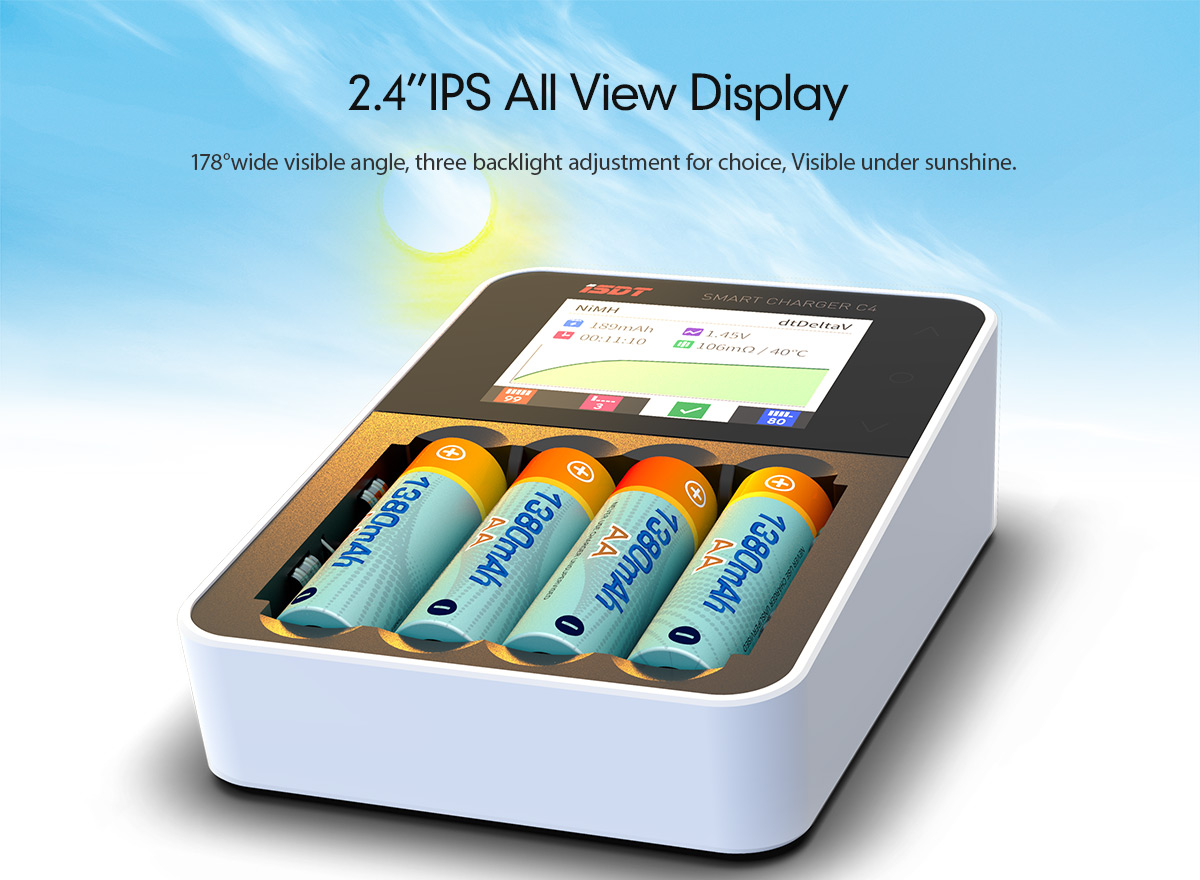

    Display320×240 IPS LCD
    Beep SoundMulti-tone
    Temperature Sensors5 for inner

    Operating Temperature0℃ – 40℃
    CalibrationFactory calibration
    Voltage Measurement±10mV internal resolution
    Current Measurement±10mA internal resolution
    Standby Current Drain<0.05mA/battery

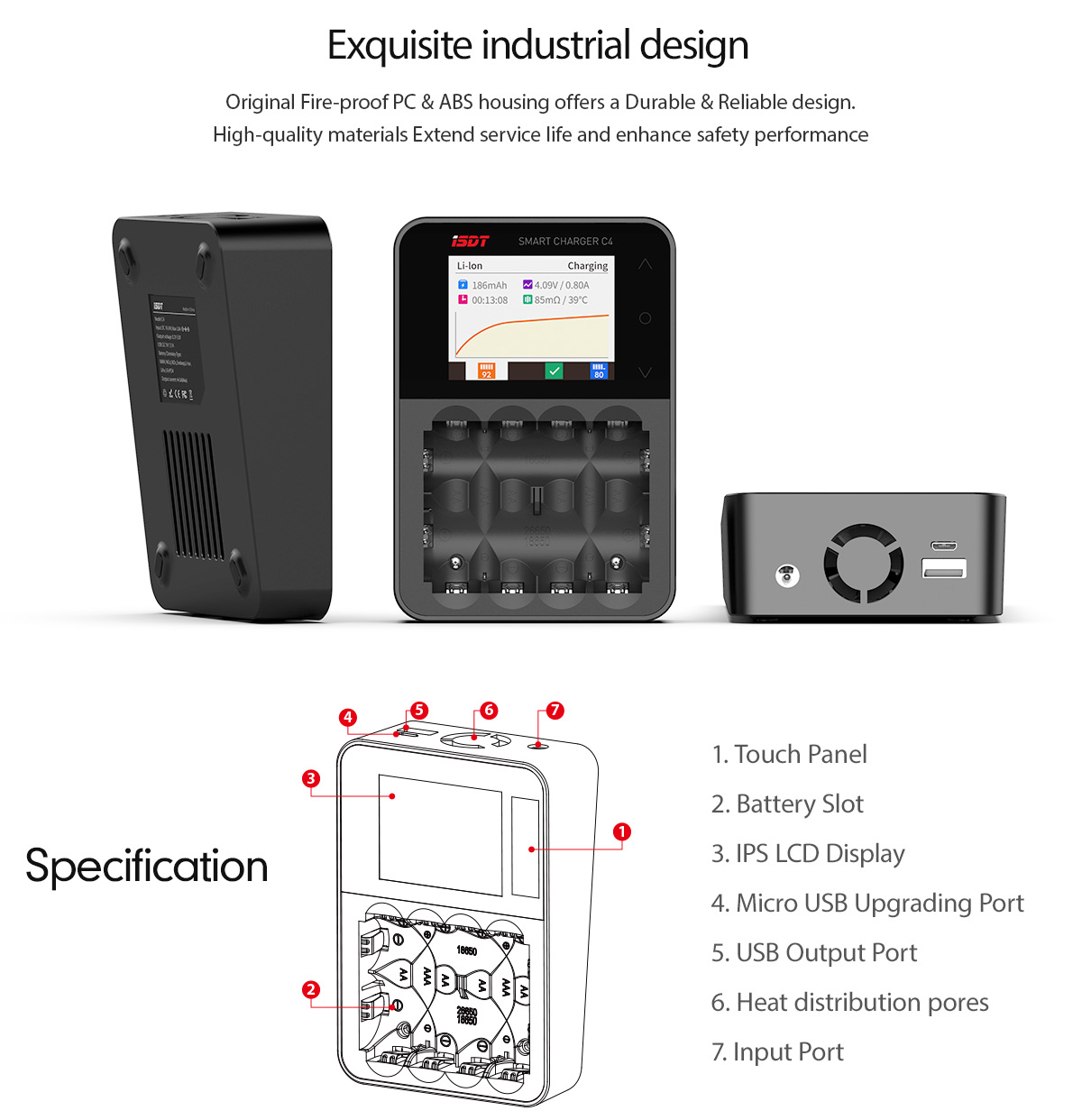

    External PortsDC Input, Micro USB Link, USB power output

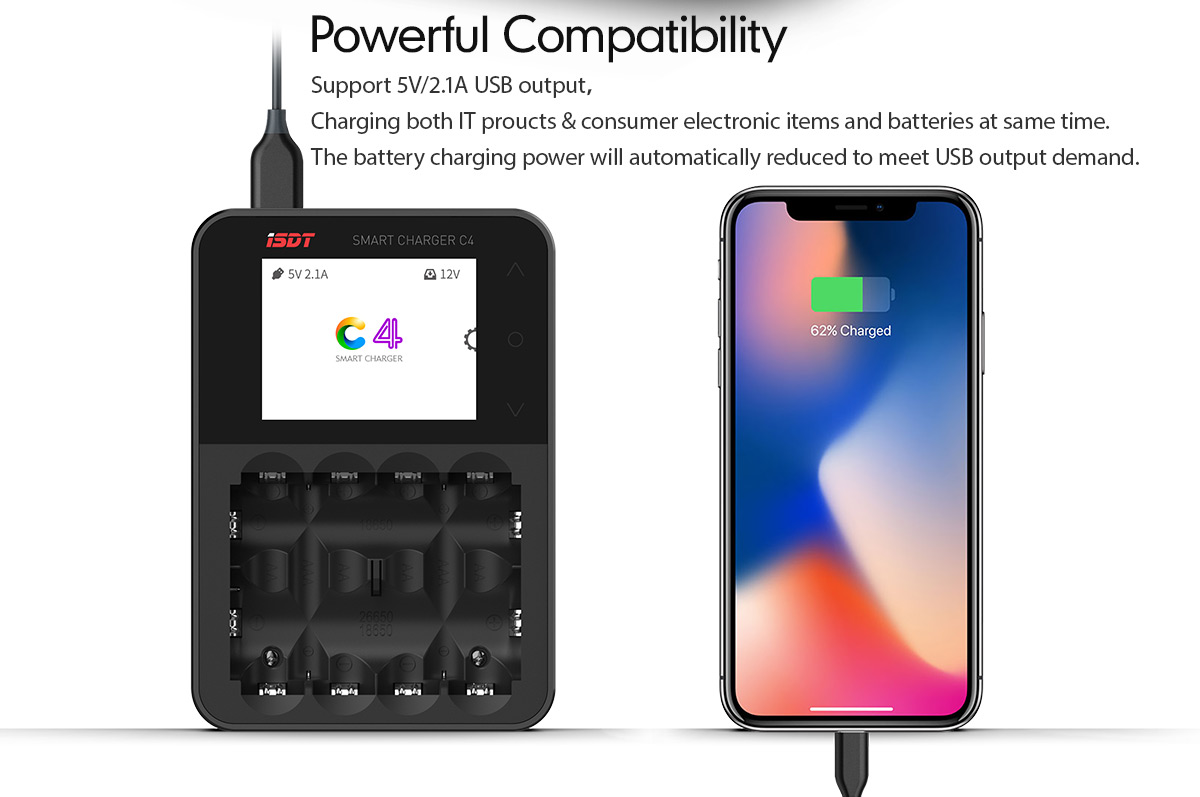

    USB Power OutputDC 5V / 2.1A

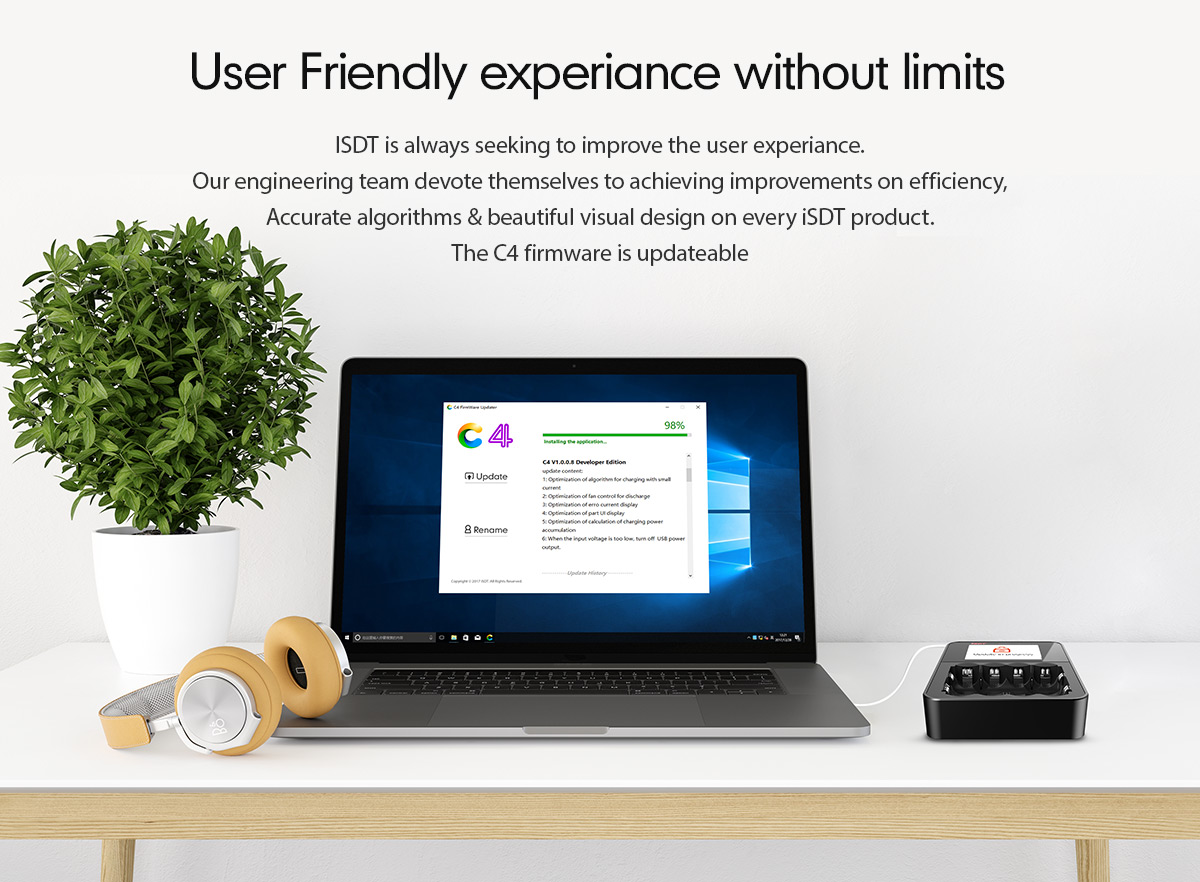

    Firmware UpdateYes

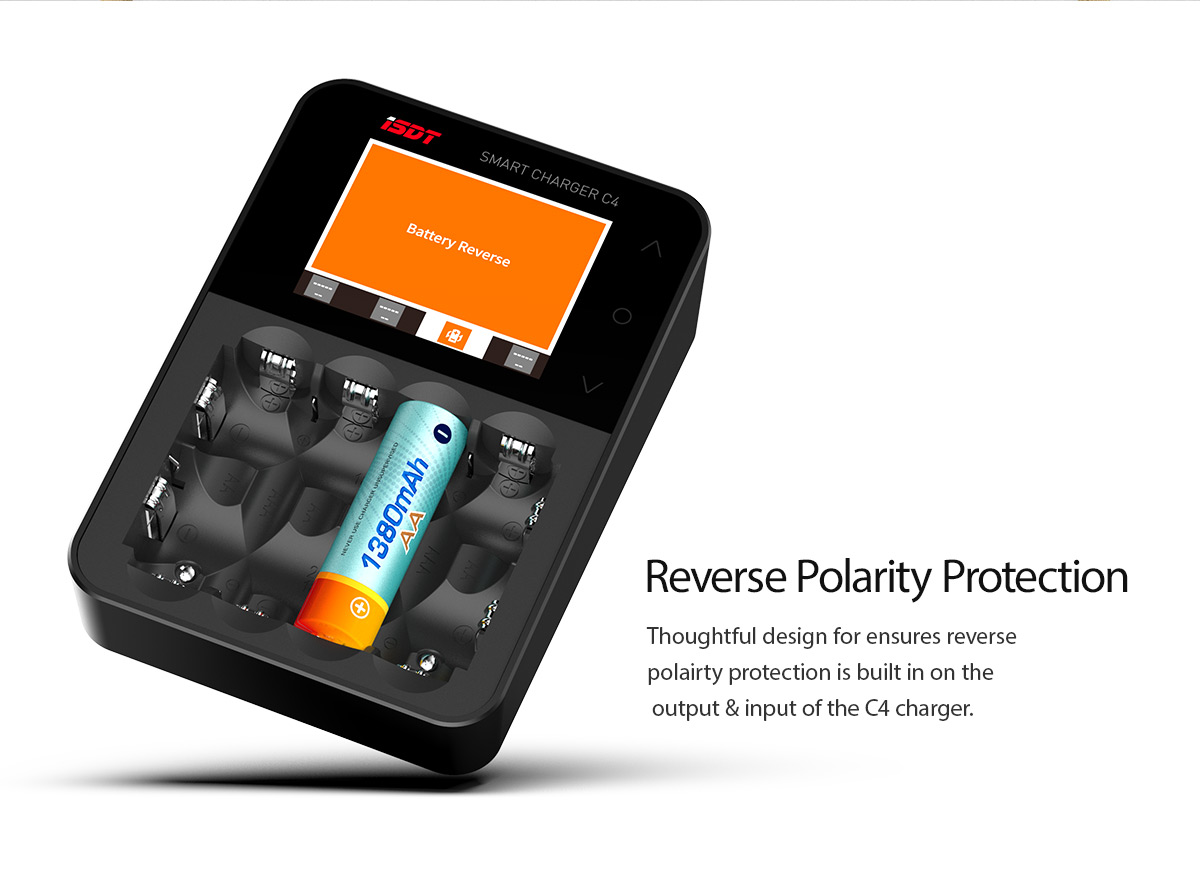

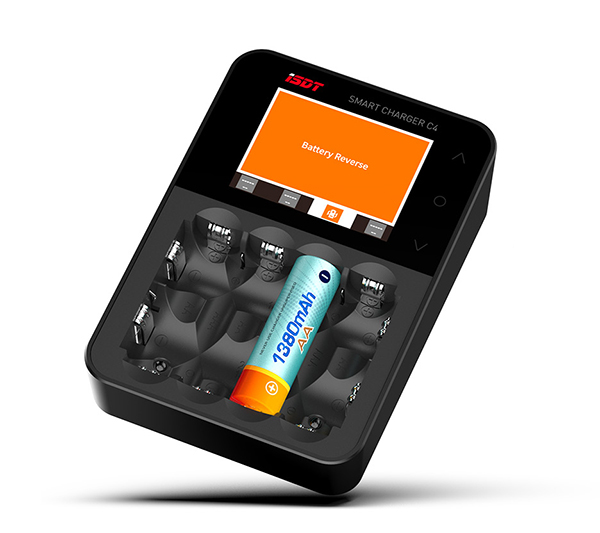

    Reverse polarity protectionsupport
    Over temperature protectionsupport
    Over capacity protectionsupport
    Dimensions (L×W×H)122×85×38mm
    MaterialPC+ABS casing, aluminum heatsink
    Weight153g(approx.)


    Includes/Requires:

    Includes:
    1 x charger
    1 x accessory bag
    1 x manual
