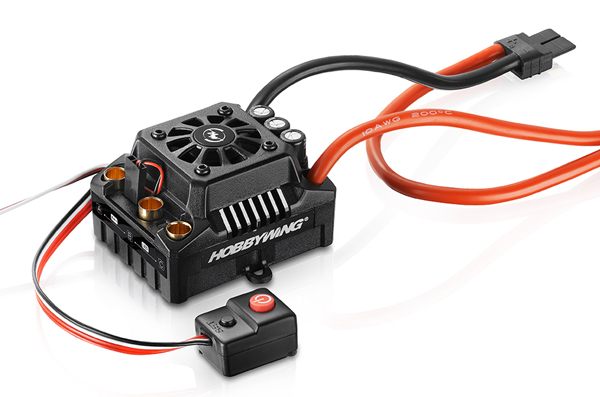

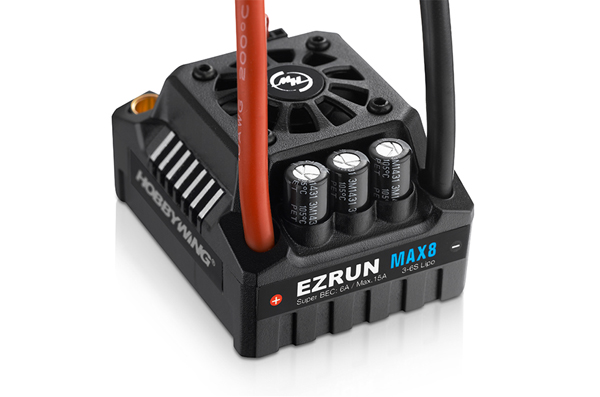

eZRun MAX8 V3-T PLUG 150A Brushless ESC for 1/8 Touring Car/Buggy/Truck
    SKU EZR-MAX8
    Brand HOBBYWING
    Added 2017/02/15
    Updated 2017/02/15

    Tags: eZRun  MAX8  V3-T  PLUG  150A  Brushless  ESC  for  1  8  Touring  Car  Buggy  Truck

    Features:

    High Reliability & Durability
    Reliable hardware combined with advanced software allows the ESC to not only provide extremely high
    output but also protect itself timely from damages caused by overload. It significantly reduces the
    possibility of getting damaged by heavy load and improves the reliability and durability.

    Great Flexibility & Versatility
    The ESC has strong outbreak and stable output, so vehicle can do different moves without
    a problem, no matter aggressive start-up and wheelie, 720-degree flip (note 1), high speed
    running on straight tracks or flying over slopes. It always provide the power more than
    sufficient. Besides, driver can adjust relevant parameters for smooth and soft start-up.
    Note 1: Not every vehicle can do the 720-degree flip because of different chassis design.
    It’s known that HPI SAVAGE can do this move.

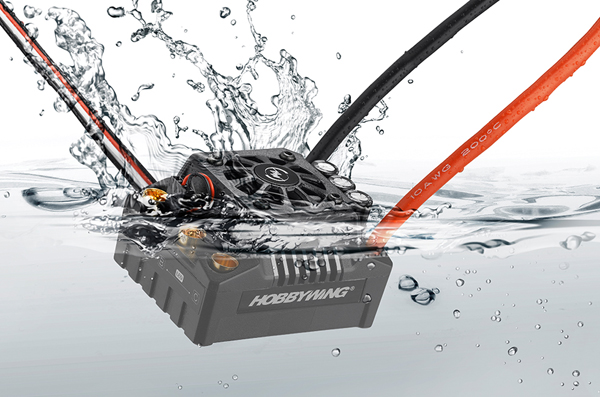

    Applicable to All Weather Conditions
    Outstanding waterproof and dust-proof capability makes the ESC applicable to all weather
    conditions, no matter the track is covered with dust, gravel, snow or puddles.

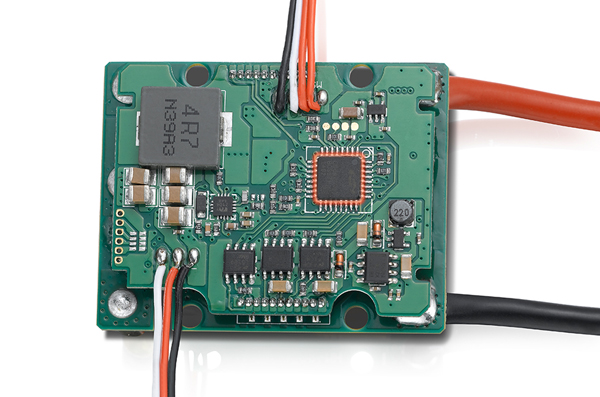

    Super Built-in BEC
    The world’s 1st 1/8th scale ESC adopted the super built-in BEC with the max. output current of up to 15A and switchable output
    voltage (6V/7.4V). It can drive different servos, high voltage
    servos at ease and bring amazing control feel to drivers.

    Advanced and Secure Electronic Switch
    The electronic switch with the lifespan of over 50000 times of switching on & off features a
    completely waterproof, dust-proof and shock-resistant design, completely solved problems
    like stuck reed and rust contact points caused by dust and moisture, switching off
    automatically caused by violent dash (like landing after flying over slopes) conventional
    mechanical switches often have.

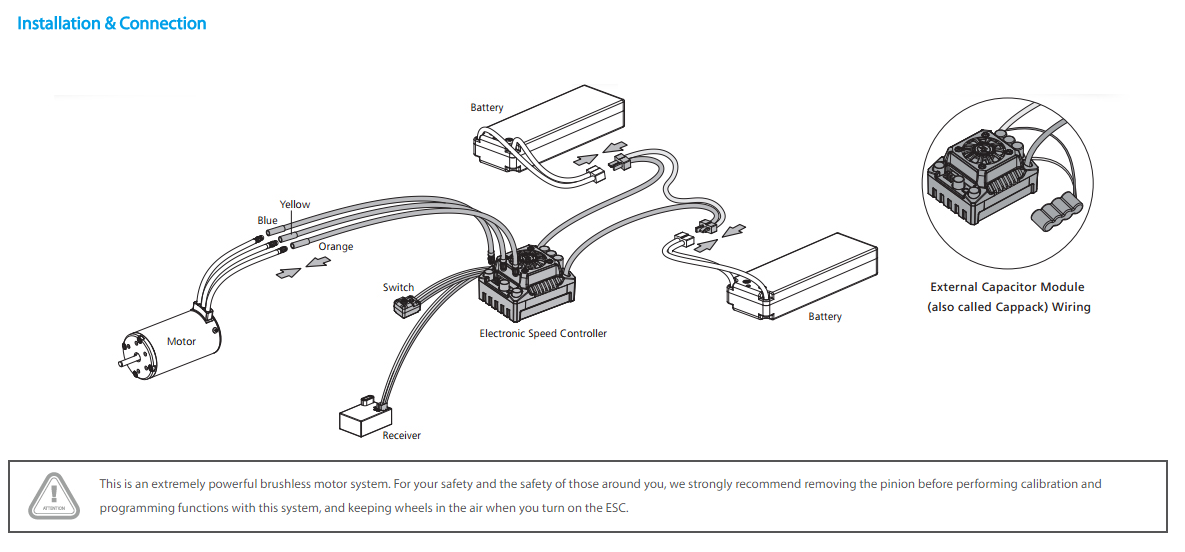

    Plug and Play

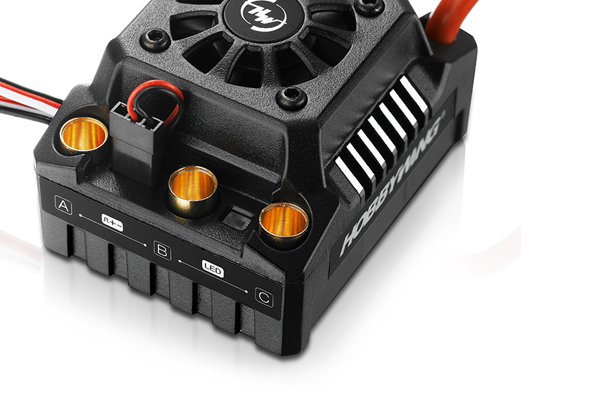

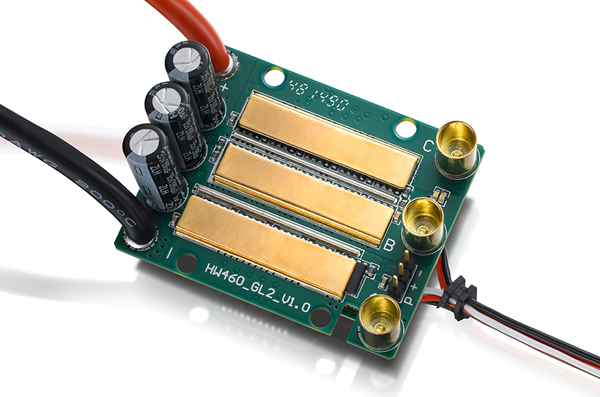

    Standard 6.5mm gold-plated connectors at the ESC’s output end are
    perfectly compatible with stock motor connectors of many popular
    1/8th scale monster trucks like TRAXXAS’s and HPI’s. Moreover,
    TRAXXAS style or DEANS/T plug(s) have been soldered to the ESC’s
    input end for different battery connectors, driver can plug and play
    and free from possible re-soldering work.

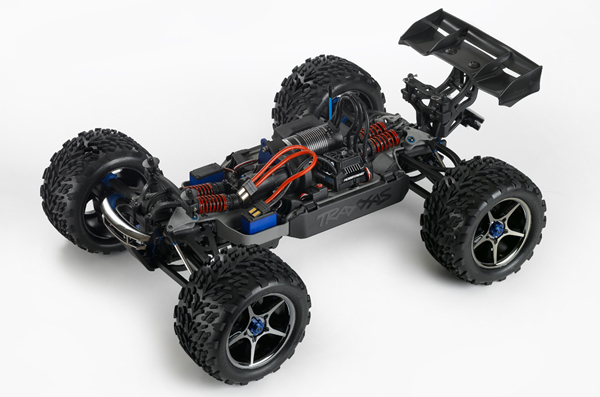

    For perfectly matching the mounting holes on TRAXXAS chassis, we
    have added some mounting holes to the ESC case accordingly.

    Wide Applicability
    The ESC provides the optimal upgrade solution for many popular 1/8th scale monster
    trucks like TRAXXAS E-REVO & E-MAXX, HPI SAVAGE, and THUNDER TIGER E-MAT.
    It’s also applicable to other trucks and buggies.


    Almost Maintenance Free
    The whole ESC except the cooling fan is basically maintenance free.
    Besides, the fan has also adopted the special anti-shock design,
    reduced damage brought by frequent jumps of the vehicle, greatly
    reduced maintenance work to the fan.

    Specifications:

    eZRun MAX8 V3-T PLUG 150A Brushless ESC for 1/8 Touring Car/Buggy/Truck


    Specifications

    Product Name

    EzRun MAX8 V3

    Product Number

    30103200(T-Plug)/30103201(Traxxas-plug)

    Type

    Scale

    1/8th

    Brushed/Brushless

    BL

    Sensored/Sensorless

    SL

    Waterproof

    WP

    Specifications

    Cont./Peak Current

    150A/950A

    Input

    3-6S LiPo/9-18 Cells NiMH

    BEC Output

    Switch Mode:6V/7.4V,6A

    Wires & Connectors

    Input Wires

    Red-10AWG-200mm*1/Red-10AWG-150mm*1/Black-10AWG-150mm*1

    Output Wires

    Black-10AWG-200mm*3

    Input Connectors

    T Plug/Traxxas Plug

    Output Connecotors

    6.5mm Famale Gold Connectors (pre-soldered onto the PCB)

    (Note: All the wire length above is the original length not the length you see from the outside.)

    Fan

    Size

    30.0x30.0x10.0mm

    Voltage Range

    5-7.4V

    Powered by

    Powered by BEC

    ESC Programing via

    SET Button on ESC

    Supported

    LED Program Box

    Supported

    LCD Program Box

    Supported

    WiFi Module

    Supported

    Program Port

    FAN/Program Port

    Firmware

    Firmware Upgrade

    Supported

    Size & Weight

    Size

    59.8x48.0x36.8mm

    Weight

    174g

    Applications

    Motors

    SL BL Motors/SD BL Motors(only in SL mode)

    Vehicles

    1/8th Touring Car/Buggy/Truck

    KV Rating/T Count

    4S LiPo:KV≤3000;/6S LiPo:KV≤2400(40XX Series of Motors)


    Includes/Requires:

    Includes:
    1 x ESC
