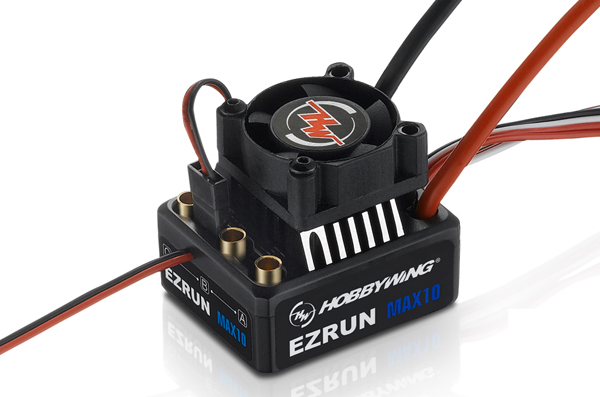

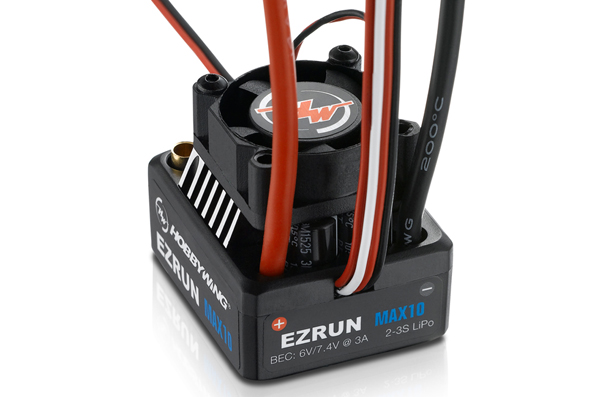

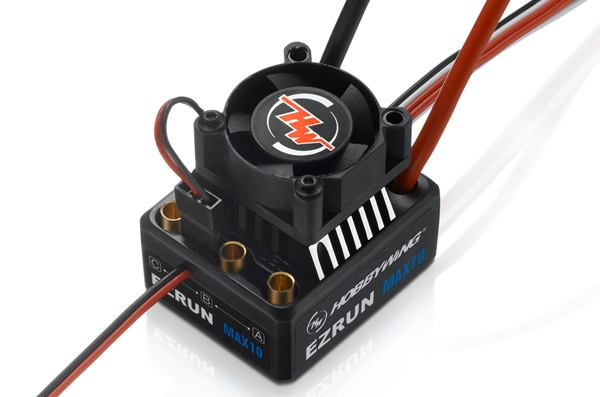

eZRun MAX10 SCT-120A Brushless ESC for 1/10 Truck/ Short Truck/ Monster Truck
    SKU EZR-MAX10S
    Brand HOBBYWING
    Added 2017/02/11
    Updated 2017/02/11

    Tags: eZRun  MAX10  SCT-120A  Brushless  ESC  for  1  10  Truck  Short  Truck  Big  Wheel

    Features:

    High Reliability & Durability
    Built with the most rugged and high-quality components and coupled with
    cutting-edge firmware, the EzRun MAX10 SCT is able to deliver unmatched power and performance for even
    the most hardcore of racing applicatinos, but is also responsive enough to protect itself from
    damage due to overloading due to physical abuse, overuse or even human error.

    Great Flexibility & Versatility
    With incredible acceleration capabilities and a rock-solid, stable output,
    the MAX10 SCT can handle instant full-torque start-ups for wheelies,
    high-speed racing on straightaways and powering through the bumpiest terrian.
    The user will have the choice of adusting the ESC parameters as per his perference and ability.

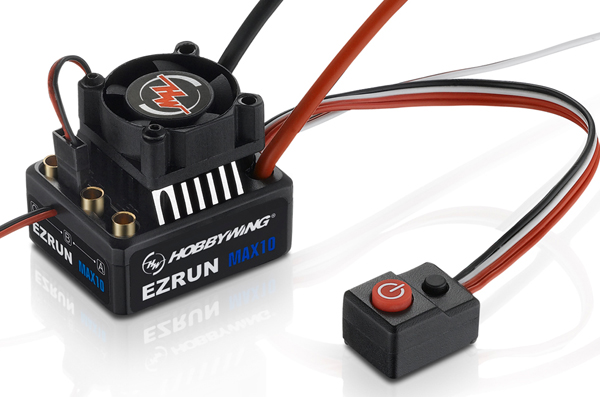

    Advanced and Secure Electronic Switch
    The MAX10 SCT features an electronic switch with a lifespan of over 50000 on/off cycles,
    housed in a completely waterproof, dust-prood and shock-resistant design.

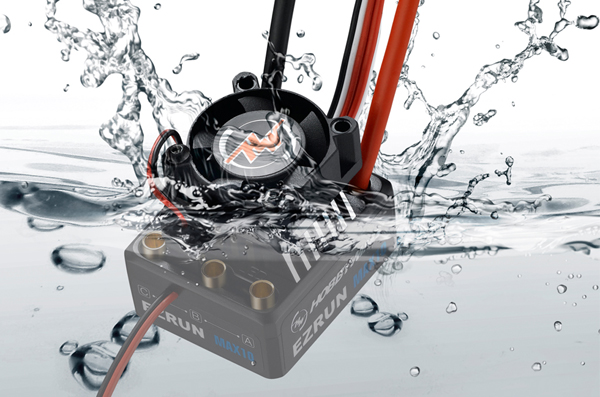

    Applicable to All Weather Conditions
    The waterproof and dust-proof design allows the MAX10 SCT to be used in all weather conditions
    without any issue of damage caused to the ESC from water or dust.

    Innovative Filter Capacitor Thermal Protection
    The filter capacitor thermal protection first implemented in the MAX10 SCT will effectively protect
    capacitors from exploding and causing irreversible damage to the ESC due to overload.

    Regular Firmware Updates
    Free of Charge
    You can upgrade the MAX10 SCT with the HobbyWing
    USB LINK software, a multifunction LCD program box
    and a laptop. HobbyWing updates its ESC firmware
    regularly giving you upgraded features more often
    when available.

    Wide Applicability
    This MAX10 SCT ESC is applicable to various 1/10th scale vehicles like
    trucks, short-course trucks, monster trucks, and etc.


    Specifications:

    eZRun MAX10 SCT-120A Brushless ESC for 1/10 Truck/ Short Truck/ Monster Truck


    Specifications

    Product Name

    EzRun MAX10 SCT

    Product Number

    30102601

    Type

    Scale

    1/10th

    Brushed/Brushless

    BL

    Sensored/Sensorless

    SL

    Waterproof

    Yes

    Specifications

    Cont./Peak Current

    120A/830A

    Input

    2-4S LiPo/6-12 Cells NiMH

    BEC Output

    Switch Mode:6V/7.4V,4A

    Wires & Connectors

    Input Wires

    Red-12AWG-200mm*1/Black-12AWG-200mm*1

    Output Wires

    Black-12AWG-200mm*3

    Input Connectors

    No

    Output Connecotors

    4.0 Bullet Connectors (Female)

    (Note: All the wire length above is the original length not the length you see from the outside.)

    Fan

    Size

    25.0x25.0x10.0mm

    Voltage Range

    5-7.4V

    Powered by

    Powered by BEC

    ESC Programing via

    SET Button on ESC

    Supported

    LED Program Box

    Supported

    LCD Program Box

    Supported

    WiFi Module

    Supported

    Program Port

    FAN/Program Port

    Firmware

    Firmware Upgrade

    Supported

    Size & Weight

    Size

    49.0x39.5x34.7mm

    Weight

    105g

    Applications

    Motors

    SL BL Motors/SD BL Motors(only in SL mode)

    Vehicles

    1/10thSCTs/Truck/Monster Truck

    KV Rating/T Count

    2S LiPo:KV≤6000;3S LiPo:KV≤4000;4S LiPo:KV≤3000(36XX Series of Motors)


    Includes/Requires:

    Includes:
    1 x ESC
