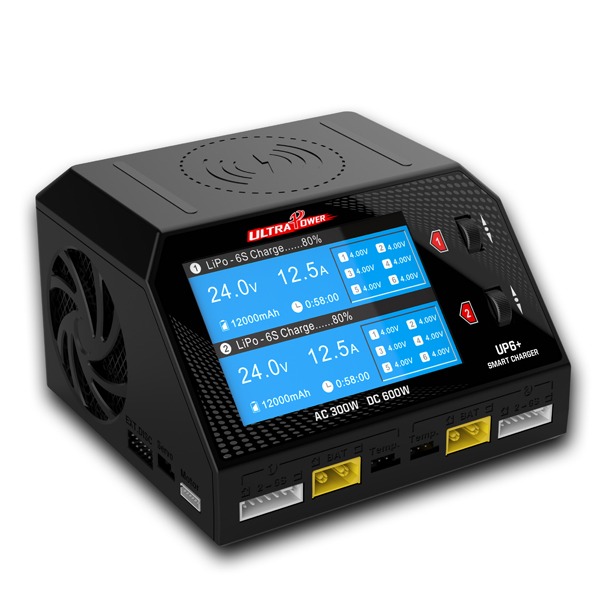

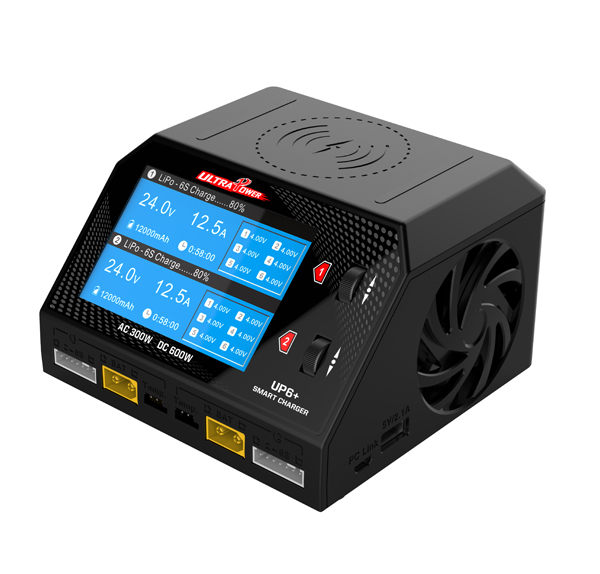

UltraPower UP6+ 600W 16A AC/DC Dual Channel Large Power Balance Charger
    SKU UP6-300W
    Added 2019/06/29
    Updated 2019/06/29

    Tags: UltraPower_UP6_600W_16A_AC_DC_Dual_Channel_Large_Power_Balance_Charger

    Features:

    Features:
    1)Two independent shuttle key control the charger.

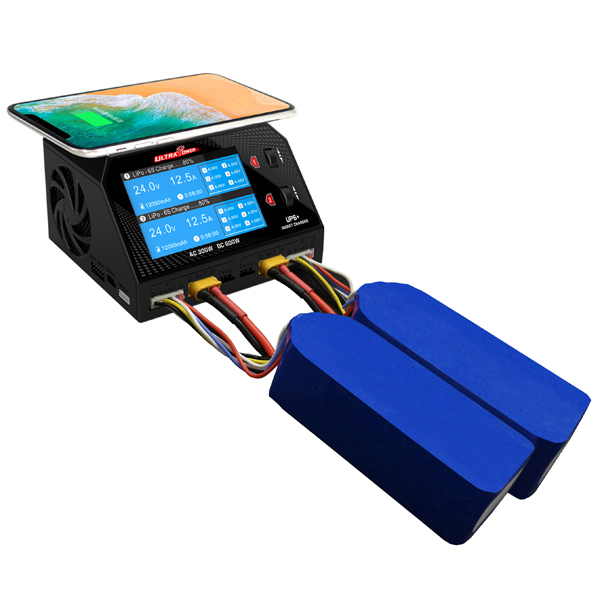

    2)Wireless charging port, support to charge at Max.10W.

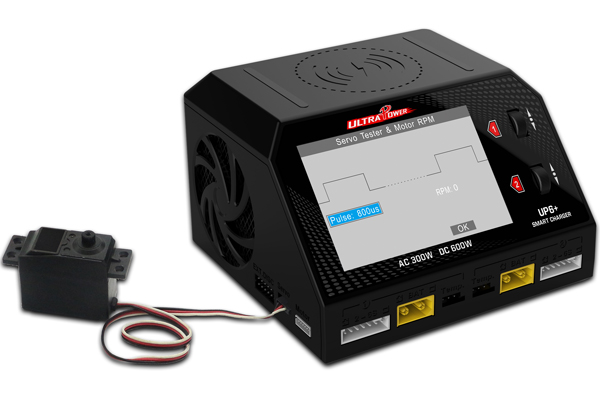

    3)Support testing the servo and motor.

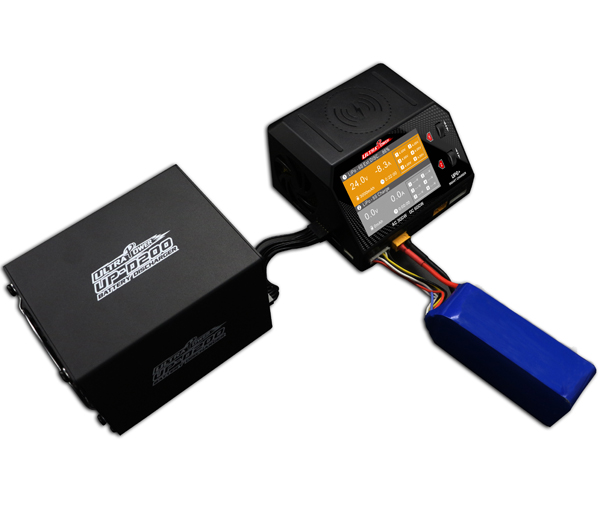

    4)Support external discharging at Max.200W, 15A.
    5)Support power distribution both in AC and DC mode.
    6)With a USB port: 5V/2.1A.
    7)PC Control & Firmware Upgrade



    Specifications:

    UltraPower UP6+ 600W 16A AC/DC Dual Channel Large Power Balance Charger


    Input Voltage: AC 100-120V or 220-240V,
    DC 9-32V
    Output Voltage: 0.1-30.0V
    Charge current: 2 x Max.16.0A
    Discharge current:CH1: 0.1-3.0 A / 0.1-15.0 A
    (External discharge mode)
    CH2: 0.1-3.0 A
    Charge power:AC 2x150 W/DC 2x300W Support
    power distribution
    Wireless Charge Power:Max. 10W
    Discharge power: CH1: 8W/200W( External
    discharge mode)
    CH2: 8W
    Balance current: Max. 1000 mA/cell
    Support Battery Types:
    LiPo/LiFe/LiHV/LiIo cell count: 1-6 cells
    NiCd/NiMH battery cell count: 1-16 cells
    Pb battery voltage: 2V-24V (1-12 cells)
    LCD Screen type: 3.5 ”480×320 LCD

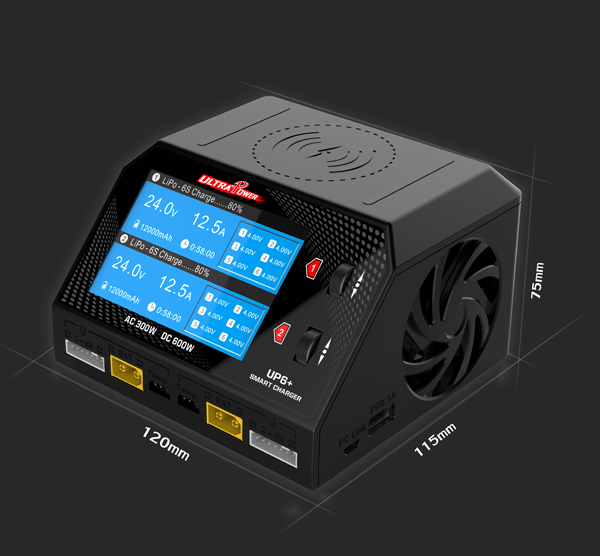

    Dimensions:120x115x75 mm
    Weight:810g

    Includes/Requires:

    Includes:
    1 x charger
    1 x AC cable
