| SKU | X3508SK3 |
|---|---|
| Added | 2013/11/02 |
| Updated | 2013/11/02 |
Specifications:

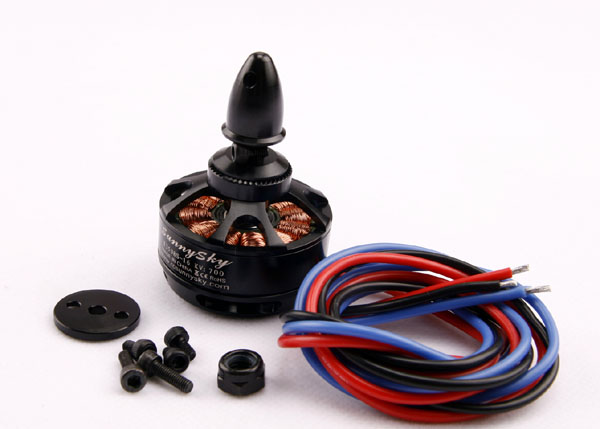

SUNNYSKY X3508S 380KV Outrunner Brushless Motor for Multi-rotor (6S)Model: X3508S 380KV
| Stator Diameter | 35mm | ||
| Stator Thickness | 8mm | ||
| No. of Stator Arms | 12 | ||
| No. of Stator Poles | 14 | ||
| Motor Kv | 380 | ||
| No-Load Current (A/10V) | 0.1A | ||
| Motor Resistance | 0.28Ω | ||
| Max Continuous Current | 15A/30S | ||
| Max Continuous Power | 333W | ||
| Weight | 106g | ||
| Outside Diameter | 42mm | ||
| Shaft Diameter | 4mm | ||
| Body Length | 26.5mm | ||
| Overall Shaft Length | 33mm | ||
| Max Lipo Cell | 6S | ||
| Recommended Prop(inch) | APC11x4.7 APC12x3.8 | ||
| Prop | Volts | Amps | Thrust(g) | RPM | Watts (W) | Efficiency (g/W) | Under load temperature @ full throttle | |
| (inch) | (V) | (A) | (RPM/Min) | |||||
| APC1147 | 22.2 | 1 | 330 | 3565 | 22.2 | 14.86486486 | ||
| 2 | 520 | 4397 | 44.4 | 11.71171171 | ||||
| 3 | 680 | 4962 | 66.6 | 10.21021021 | ||||
| 4 | 810 | 5382 | 88.8 | 9.121621622 | ||||
| 5 | 920 | 5717 | 111 | 8.288288288 | ||||
| 6 | 1040 | 6077 | 133.2 | 7.807807808 | ||||
| 7 | 1140 | 6351 | 155.4 | 7.335907336 | ||||
| 8 | 1220 | 6565 | 177.6 | 6.869369369 | ||||
| 8.9 | 1310 | 6805 | 197.58 | 6.630225731 | 52° | |||
| APC1238 | 22.2 | 1 | 340 | 3325 | 22.2 | 15.31531532 | ||
| 2 | 510 | 4037 | 44.4 | 11.48648649 | ||||
| 3 | 690 | 4517 | 66.6 | 10.36036036 | ||||
| 4 | 810 | 4842 | 88.8 | 9.121621622 | ||||
| 5 | 940 | 5091 | 111 | 8.468468468 | ||||
| 6 | 1070 | 5365 | 133.2 | 8.033033033 | ||||
| 7 | 1150 | 5580 | 155.4 | 7.4002574 | ||||
| 8 | 1260 | 5760 | 177.6 | 7.094594595 | ||||
| 9 | 1350 | 5905 | 199.8 | 6.756756757 | ||||
| 10 | 1410 | 6060 | 222 | 6.351351351 | ||||
| 11.3 | 1540 | 6362 | 250.86 | 6.138882245 | 60° | |||
Includes/Requires:
Includes:1 x motor
1 x prop adaptor
1 x prop holding-down plate
6 x screws
