Hobbywing QuicRun WP-10BL60 60A Waterproofing Brushless ESC for Cars

SKU	WP10BL60
Brand	HOBBYWING
Added	2021/10/23
Updated	2021/10/23

Features:

Specifications:

Hobbywing QuicRun WP-10BL60 60A Waterproofing Brushless ESC for Cars

Product Name

QuicRun WP 10BL60

Product Number

30107100

Type

Scale

1/10th

Brushed/Brushless

Sensored/Sensorless

Waterproof

Specifications

Cont./Peak Current

60A/360A

Input

2-3S LiPo/6-9 Cells NiMH

BEC Output

Switch Mode:6V/3A

Wires & Connectors

Input Wires

Red-14AWG-150mm*1/Black-14AWG-150mm*1

Output Wires

Black-14AWG-100mm*3

Input Connectors

Output Connecotors

4.0 Gold Connector (Female)

(Note: All the wire length above is the original length not the length you see from the outside.)

Fan

Size

30.0x30.0x10.0mm

Voltage Range

5-7.4V

ESC Programing via

SET Button on ESC

Supported

LED Program Box

Supported

LCD Program Box

Not Supported

WiFi Module

Not Supported

OTA Programmer

Not Supported

Program Port

FAN/Program Port

Firmware

Firmware Upgrade

Not Supported

Size & Weight

Size

48.5x38.0x32.0mm

Weight

90g

Applications

Motors

SL BL Motors/SD BL Motors(only in SL mode)

Vehicles

1/10th Touring Cars/Buggies/Trucks/Monster Trucks

KV Rating/T Count

2S LiPo: 1/10th Touring Cars KV≤6000, 1/10th Buggies KV≤4000
3S LiPo: 1/10th Touring Cars KV≤4000, 1/10th Buggies KV≤3000
(36XX Series of Motors)

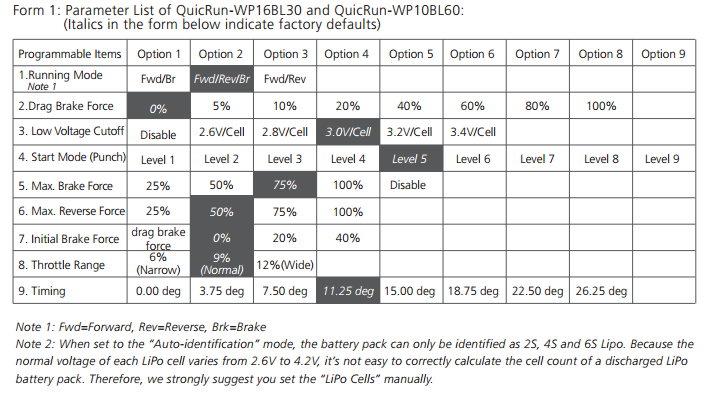

Programmable Items

Installation & Connection

Includes/Requires:

Includes:
1 x ESC
