HiModel Professional Series 60A / 80A Electric Brushless Speed Control Type Professional-60A
    SKU HW60P11
    Brand HiModel
    Manual Manual 1
    Added 2006/04/12
    Updated 2009/11/27

    Tags: HiModel_Professional_Series_60A_80A_Electric_Brushless_Speed_Control_Type_Professional-60A

    Features:

    ■ Military Standard Capacitor with extremely low resistance used on voltage input section, this will increase the ability of prevention of unwanted RF Noise/ Interference during flying.

    ■ Seperate PCB for control circuit and MOSFET circuit: adiabatic air gap between control circuit PCB and MOSFET circuit PCB reduces the heat exchange form MOSFET to control circuit, so the ESC works more reliable.

    ■ Extreme low resistance, super current endurance.

    ■ Microprocessor and BEC use separate voltage regulator IC, with good anti-jamming capability.

    ■Safety Arming Feature: Regardless the Throttle Stick position, the motor will not spin after battery connected. This will prevent any injury happened.

    ■ Throttle Calibration: Throttle range can be configured to provide best throttling linearity, fully compatible with all market available transmitters.

    ■ Programmable Items:

    ●Brake Settings:brake enabled / brake disabled, default is brake disabled

    ●Battery Type:Li-xx(Li-ion or Li-poly) / Ni-xx(NiMh or Nicd),default is Li-xx.

    ●Low Voltage Protection Mode(Cutoff Mode) :power reducing / power cutoff, default is power reducing.

    ●Low Voltage Protection Threshold(Cutoff Threshold) :low / medium / high, default is medium cutoff voltage.

    1) For Li-xx battery,number of battery cells are judged automatically,low / medium / high cutoff voltage for each cell are: 2.6V/2.85V/3.1V. For example: 3 Cells Li-Poly, when medium cutoff voltage is set, the cutoff voltage is: 2.85*3=8.55V.

    2) For Ni-xx battery, low / medium / high cutoff voltages are 0%(ie. never cut off )/45%/60% of the startup voltage. For example: a 10 cells NiMH battery pack, fully charged voltage is 1.44*10=14.4V, when medium cutoff voltage is set, the cutoff voltage is : 14.4*45%=6.5V.

    ●Startup mode: normal / soft / super-soft, default is normal startup.

    ●Timing: low / medium / high, default is medium timing. In normal cases, low timing can be used for most motors. But for high efficiency, we recommend the Low timing for 2 poles motor and Medium timing for 6 poles and above. For higher speed, High timing could be used.

    ■ Full Protection Features: Low-voltage cutoff protection / over-heat protection / throttle signal lost protection.

    Specifications:

    Type: Professional-60A
    Output: Continues 60A, Burst 80A up to 10 Secs.

    Voltage Input: Lithium : 2 – 6s or NiMH/NiCd 5 -18 Cells) b>Note: 4S and 4S above must be with BEC disabled

    BUILT-IN BEC (Battery Elimination Circuit) Output:3A @ 5V;

    Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: BrusheLess Motor)

    Size:70mm x 31mm x 15mm(length x width x high)

    Weight: 60g / 2.12oz

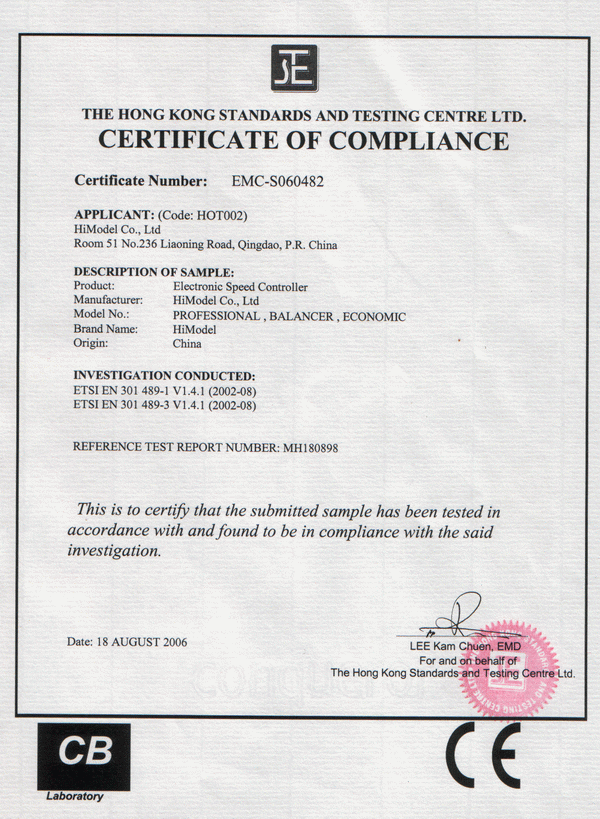

    Click here for CE Certificate
    All the HiModel electric speed controllers (ESC) are comply with RoHS standard, the certificate is under processing.

    Includes/Requires:

    Includes:
    1 x ESC
    1 x English Manual
