Tags: multi-rotor,  brushless  motor

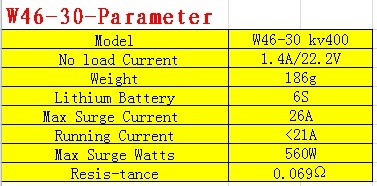

Specifications:

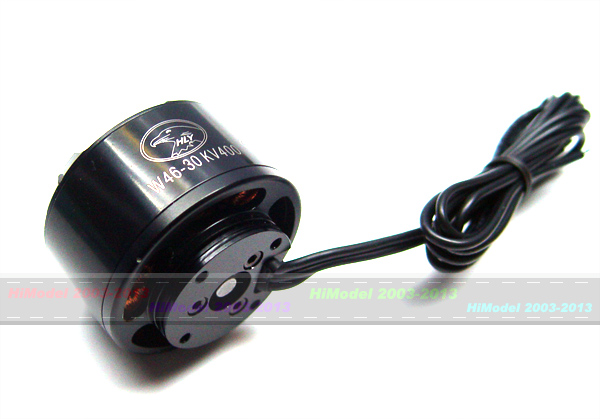

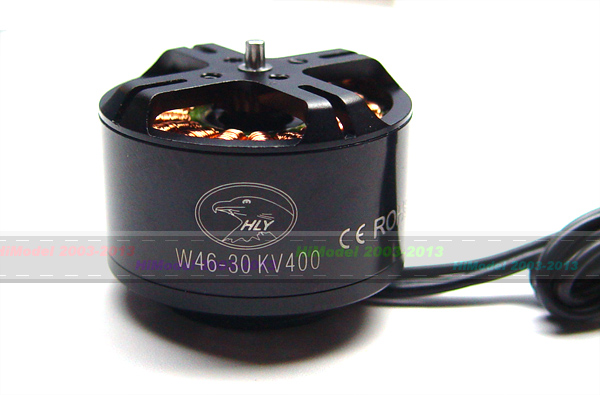

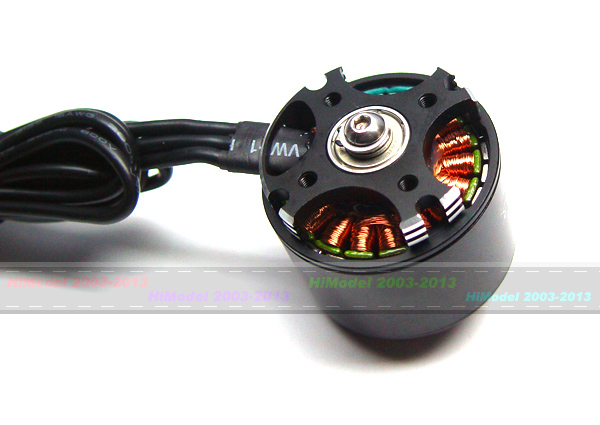

Model:  W46-30 400KV
Idol current: 1.4A at 22.2V
Net weight: 186g (excluding prop adaptor)
Mounting hole spacing: 25mm/ 25mm (cross side)
Max cell number supported: 6S Lipo
Wire length: 50CM
Mounting hole spacing:  25mm/25mm (cross side)
Max current: 26A
Working current: <21A
Max power:560W
Internal resistance: 0.069Ω

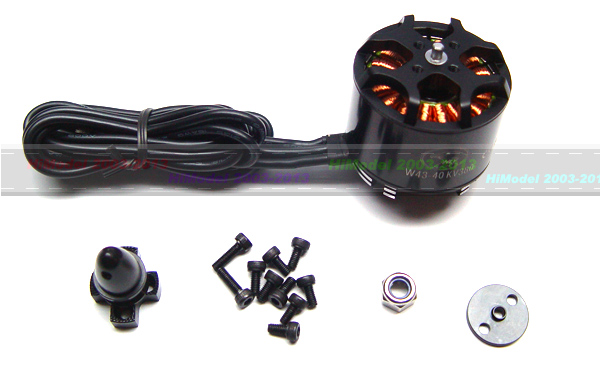

Includes/Requires:

Includes:
1 x motor
1 x prop adaptor
1 x M6 lock nut
8 x  M3x5mm screws
2 x M3x10 screws
1 x prop holding down disk

*Connectors are not included
