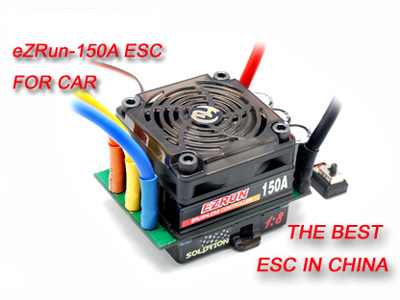

| SKU | EZRUN150 |
|---|---|
| Brand | HOBBYWING |
| Manual | Manual 1 |
| Added | 2009/02/09 |
| Updated | 2018/07/12 |
Features:
1 Specification
1.1 Output: Continuous current 150A, burst current 1080A.
1.2 Input: 6-18 cells NiMH/NiCd or 2-6 cells LiPo.
1.2 Input: 6-18 cells NiMH/NiCd or 2-6 cells LiPo.
1.3 BEC Output: 5.75V/3A (Switch mode built-in BEC).
1.4 Resistance: 0.0002 Ohm.
1.5 Motor Supported: Sensorless and sensored brushless motors
1.6 Suitable Brushless Motor: 3.5T and > 3.5T
1.7 Suitable Car: 1/5, 1/8 on-road or off-road cars / trucks for competitive race.
1.8 Size: 68mm(L) * 55mm(W) * 45mm(H).
1.9 Weight: 150g(Without wires)
1.8 Size: 68mm(L) * 55mm(W) * 45mm(H).
1.9 Weight: 150g(Without wires)
2 Features
1.1 Compatible with all sensorless brushless motors and most of sensored brushless motors such as Novak, LRP and Feigao, etc.
1.2 Excellent start-up, acceleration and linearity features.
1.3 3 running modes (Forward only with brake, Forward/Reverse with brake, Forward/Reverse immediately)
1.4 4 steps of maximum reverse force adjustment.
1.5 Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment and 4 steps of initial brake force adjustment.
1.6 9 start modes (Also called “Punch”) from “very soft (Level 1)” to “very aggressive (Level 9)”.
1.7 Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor blocked protection.
1.8 8 steps of timing adjustment by software.
1.2 Excellent start-up, acceleration and linearity features.
1.3 3 running modes (Forward only with brake, Forward/Reverse with brake, Forward/Reverse immediately)
1.4 4 steps of maximum reverse force adjustment.
1.5 Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment and 4 steps of initial brake force adjustment.
1.6 9 start modes (Also called “Punch”) from “very soft (Level 1)” to “very aggressive (Level 9)”.
1.7 Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor blocked protection.
1.8 8 steps of timing adjustment by software.
1.9 Built-in switch mode BEC has a powerful output to supply all the electronic equipments.
1.10 Easily program with only one button and compatible with pocket-sized Program Card.
1.11 Firmware can be updated through an USB adapter (Optional equipment).
1.12 Splash proof and dustproof.
1.10 Easily program with only one button and compatible with pocket-sized Program Card.
1.11 Firmware can be updated through an USB adapter (Optional equipment).
1.12 Splash proof and dustproof.
3 Programmable Items (Click the following picture to enlarge it)
For detail information, please read the user manual for reference.
4 Suggestion Of The Power System
Motor Type | Gear Rate | Power System Suggestion | Main Application |
For 4 cells Lipo: 12-19 | EZRUN-150A-SD ESC | 1:8 Monster, Crazy powerful | |
1:8 Off-Road: 10-15.5 | EZRUN-150A-SD ESC | 1:8 Monster, Very powerful |
Includes/Requires:
Includes:1 x ESC
