EMAX 1260KV Outrunner Brushless Motors W/ Prop saver Type Max-BL2215/20
    SKU 221520
    Brand EMAX
    Added 2006/06/27
    Updated 2010/04/10

    Tags: EMAX_1260KV_Outrunner_Brushless_Motors_W_Prop_saver_Type_Max-BL2215_20

    Features:

    EMAX 1260KV Outrunner Brushless Motors Type Max-BL2215/20

    It is the very high power delivered by these small and very robust, but light weight (60g) brushless motors with rotating case suitable for all models of 300-400 size . As a result of using the latest ferromagnetic materials the MAX-2215/xx motors offer extremely high efficiency and high load capability for their weight. MAX series motors with the high quality of manufacturing, reliability and performance are the best outrunners available in the market.
    Backplate forward and backword installation capable.

    Specifications:

    No. Of cells:2-3 Li-Poly
    RPM/V:1260 RMP/V
    Max. efficiency:82%
    Max. efficiency current: 13 A (>75%)
    No load current / 10 V:0,5 A
    Current capacity:22 A/60 s
    Internal Resistance:116 mohm
    Diameter: 29mm
    Length: 32mm (excluding motor shaft)
    Shaft length: 12mm (outside part of motor can)
    Shaft diameter:3 mm
    Weight:59 g
    Recommended model weight: 300 - 900 g
    Recommended prop without gearbox:APC 10X5 / APC 11X5.5APC / 10X4.7(SLOW)



    Model

    Cell Count

    RPM/V

    Prop

    RPM

    Current

    Thrust

    BL2215/20

    3S Li-Po

    1260

    11X5.5

    8000

    26A

    1326g/2.9lb



    10X5

    9100

    22A

    1171g/2.58lb

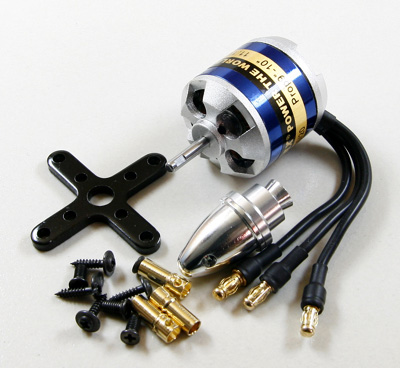

    Includes/Requires:

    Includes:
    1 x brushless motor
    1 x cross type motor mount
    1 x aluminum prop saver
    4 x countersunk screws
    4 x pan head screws
    3 x M3.5 female spring connectors

    Comments:

    HiModel Static Thrust Real Test Report
    Voltage
    Prop
    Typical Current(A)
    Peak Current(A)
    Typical Thrust(g)
    Max Thrust(g)
    RPM/V
    Internal Resistance(Ω)
    11.1V
    GWS Direct Drive 9x4.7
    17
    20.5
    1000
    1150
    859
    0.068
    11.1V
    GWS Direct Drive 9x4.5
    14
    17
    1000
    1130
    900
    a. The data only represent the results under our testing environment, we are not responsible for any inaccuracy.
    b. HiModel copyright reserved, copying or reproducing are prohibited.
