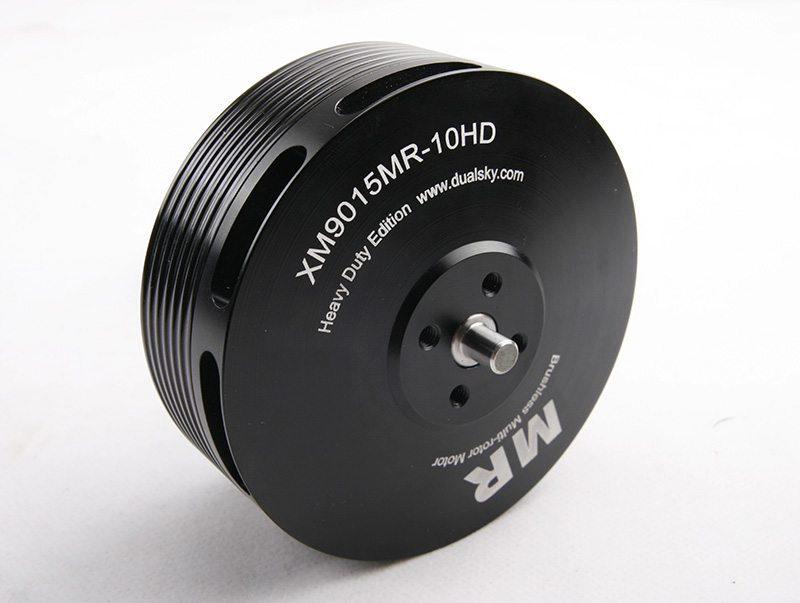

Dualsky XM9015MR-10HD 120KV 10-12S Heavy Duty Outrunner Brushless Motor (HV Version) | V2
    SKU 9015MR
    Brand DUALSKY
    Added 2015/05/19
    Updated 2015/10/12

    Tags: Dualsky  XM9015MR-10HD  120KV  10-12S  Outrunner  Brushless  Motor  HV  Version  heavy  duty

    Features:

    28 poles brushless motor, specially designed for
    high-end multi-rotor and UAV systems.
    Based on the mature TE-MR technology and
    all parts are newly designed
    2nd generation stator, using the best 0.2mm silicon material to improve motor efficiency
    Lower IR winding to decrease the temperature
    remarkably when long-time working
    detachable stator ,easier to maintain
    Imported over-sized ball bearing, lower noise
    and ultra-long working life
    Short shaft design
    High-precision rotor, dynamically balanced on both sides, lowest resonance in RC industry
    New stator cover to protect power wires
    Multiple mounting holes, compatible with DJI frames
    Lengthen silicon power wire, easy to install
    Laser-etching model data and factory serial number
    Comes with propeller adapters, can install traditional and professional CF propellers
    Recommended to work with Dualsky MRP series propellers to achieve best working efficiency
    Recommended to work with Dualsky MR series ESC (up to 433Hz control frequency)
    100% inspection in Shanghai Dualsky factory before shipment.
    Add 90mm motors to meet the need of big load market
    * HD series multi rotor motors are designed for big load multi-copter, with "heavy duty".
    * Upgrade based on MR series motor, including 70 mm and 90 mm
    * Provide single shaft up to 3000W output power
    * High voltage design, working voltage: 44.4 V 12S lipo
    * High efficiency, low temperature, suitable for long time running
    * Integrated fan on rotor
    * Sealed design, dust-proof and waterproof (IP34) during flying





    Specifications:

    Dualsky XM9015MR-10HD 120KV 10-12S Heavy Duty Outrunner Brushless Motor (HV Version) V2

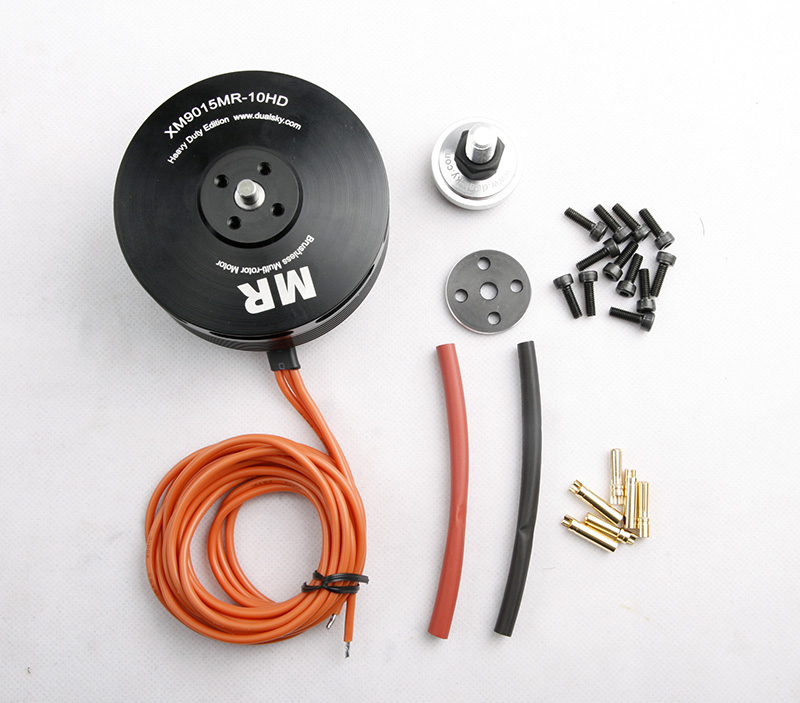

    Includes/Requires:

    Includes:
    1 x motor
    1 x prop holding-down plate
    1 x prop adaptor
    1 x screw bag
