Dualsky XM7010MR-7.5 330KV Outrunner Brushless Disk Type Motor for Large Scale Multi-rotor
    SKU 7010MR7
    Brand DUALSKY
    Added 2013/09/03
    Updated 2013/09/03

    Tags: multi-rotor,  brushless  motor,  XM7010MR-7.5,  dualsky,  large  scale

    Features:

    28 poles. High torque. High efficiency. Specifically designed for large scale Multi Rotor.



    Specifications:

    Dualsky XM7010MR-7.5 330KV Outrunner Brushless Disk Type Motor for  Large Scale Multi-rotor

    Specification´╝Ü
    RPM/V (KV): 330
    Net Weight(g): 289
    Diameter(mm): 70
    Length(mm): 35
    Diameter of Shaft(mm): 4.0, 8.0
    Mounting holes pitch(mm): 30/30
    Slots,Poles: 24, 28
    Idle Current(Io) @10V(A): 1.1
    Resistance(Ri)(mOhm): 53
    Cruising power(W)[8 mins]: 608
    Bursts current(A)[15s]: 50
    Peak power(W)[15s]: 1105
    Recommended ESC: 60-80A
    Setup (No. of Cell, Prop.): 6S, 20x6, 22x7

    Flight weight (for reference only):
    Max. weight of quad-copter(kg): 6.8
    Max. weight of hex-copter(kg): 10
    Max. weight of oct-copter(kg): 14

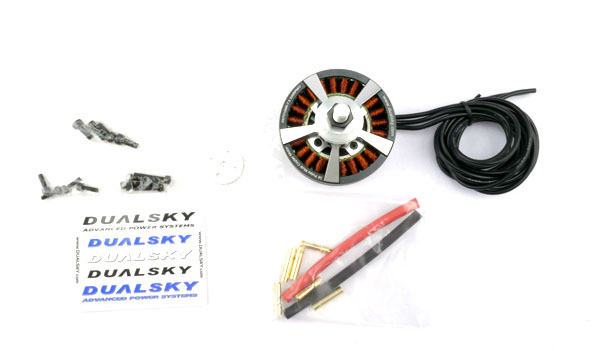

    Includes/Requires:

    Includes:
    1 x motor
    1 x prop holding-down plate
    1 x prop adaptor
    1 x screw bag
