| SKU | 9010HD13 |
|---|---|
| Brand | DUALSKY |
| Added | 2015/12/05 |
| Updated | 2015/12/05 |
Features:
This is the 2nd generation (V2) Heavy duty series for multi-copter.
Specifications:

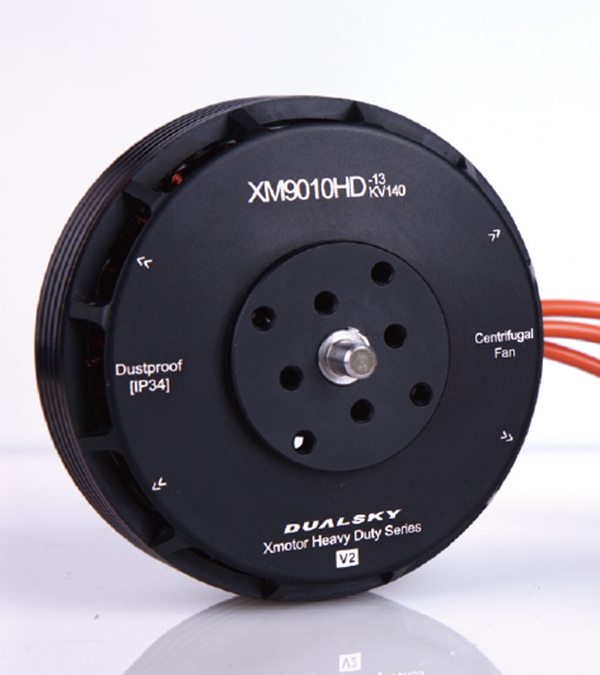

DUALSKY Xmotor Heavy Duty Series High Voltage (HV) Multi-copter Motor XM9010HD-13 10-12S 140KV - V2
| 2nd Generation Heavy duty series for Multi-copter | NO. 51453 |
| XM9010HD-13 | |
| RPM/V (KV) KV值 | 140 High Voltage |
| Weight w/o wires(g) 不含线重量 | 525 |

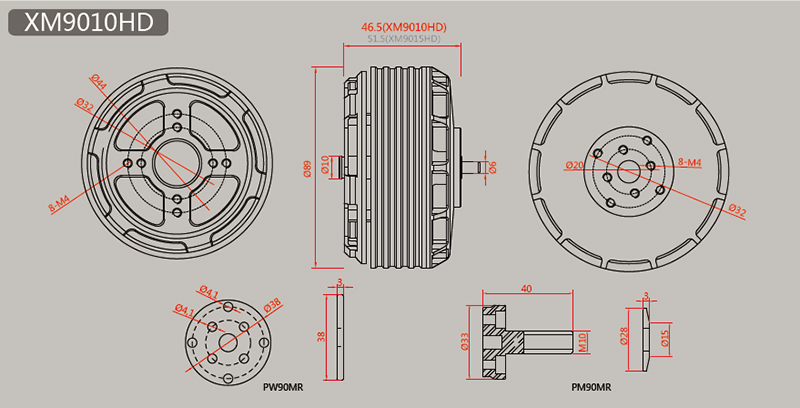

| Diameter(mm)直径 | 89 |
| Length(mm)长度 | 45.5 |
| Diameter of Shaft(mm)轴径 | IN:10.0, Out:6.0 |
| Propeller mounting holes [Pitch, Size] (mm)桨安装孔距 | (A)20mm, 4-M4 (B)32mm, 4-M4 |
| Motor mounting holes 马达安装孔距 [Pitch, Size] (mm) | (A)32mm, 4-M4, (B)44mm, 4-M4 |
| Slots,Poles槽数，极数 | 24, 28 |

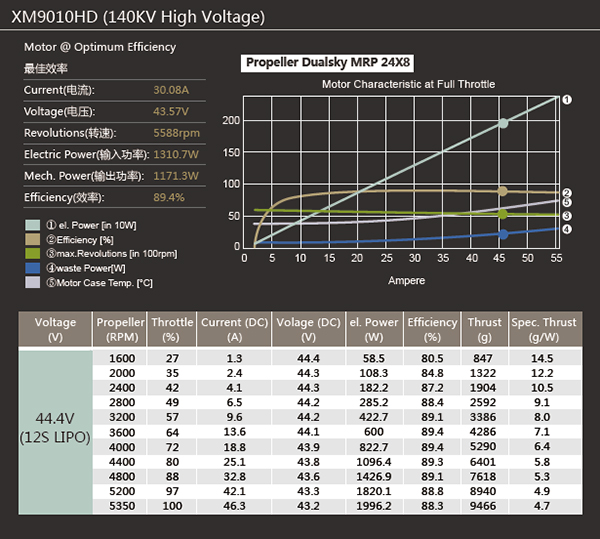

| Idle Current(Io) @10V(A)空载电流 | 0.8 |
| Resistance(Ri)(mOhm)电阻 | 70 |
| Nominal Voltage(V)额定电压 | 30-51V, 10-12S Lipo |
| Cruising power(W)[30 mins]续航功率 | 1420 |
| Bursts current(A)[30s]瞬时电流 | 58 |
| Peak power(W)[30s]峰值功率 | 2600 |
| Input Wire输入线 | 14AWG, 1000mm |
| Recommended ESC电调推荐 | PCU 80HV |
| Propeller桨 | MRP 24" |
| Propeller adapters 桨适配器 | Yes |
| Centrifugal fan 离心式风扇 | Yes |
| Dynamic balanced rotor 动平衡转子 | Yes |
| Heavy duty design 重型设计 | Yes |
| Water & dust proof 防水防尘 | Yes (IP34) |
| Maintenance free 免费维护 | Yes |
| Weight of Quad-copter(kg) 适合的四轴重量 | 15.8 |
| Weight of Hex-copter(kg) 适合的六轴重量 | 23.7 |
| Weight of Oct-copter(kg) 适合的八轴重量 | 31.6 |
| Memo 备注 | For business agriculture spray |
Includes/Requires:
Includes:1 x motor
