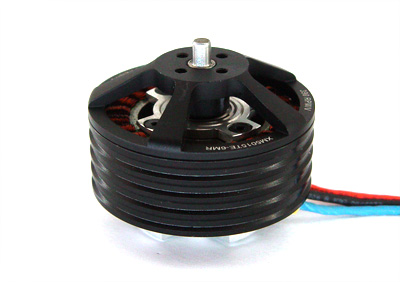

DUALSKY XM5015TE-6MR 390KV Outrunner Brushless Disk Type Motor for Multi-rotor (Short shaft)
    SKU 5015-6MR
    Brand DUALSKY
    Added 2012/10/09
    Updated 2012/10/09
    Tags: multi-rotor,  brushless  motor,  dualsky


    28 poles. High torque. High efficiency. Specifically designed for Multi Rotor.It also can be used for Remote control aircrafts.


    Model:XM5015TE-6 MR 390KV
    KV: 390RPM/V
    Weight: 158g
    Diameter: 50mm
    Length: 43mm
    Diameter of Shaft: 4mm
    Mounting holes pitch: 12/25mm
    Slots,Poles: 24, 28
    Idle Current(Io) @10V: 1A
    Resistance(Ri): 59mOhm
    Cruising power[8 mins]: 428.92W
    Bursts current[15s]: 35.13A
    Peak power[15s]: 779.85W
    Recommended ESC: 40A
    Setup 1 (No. of Cell, Prop.): 6S, up to 16x5
    Max. weight of 4-rotor copter: 4.29kg
    Max. weight of 3D models: 1.43kg
    Memo: 4KG 4-rotor copters, 30E 3D airplanes


    1 x motor
    1 x prop adaptor
    1 x motor mount
    4 x prop adaptor screws
