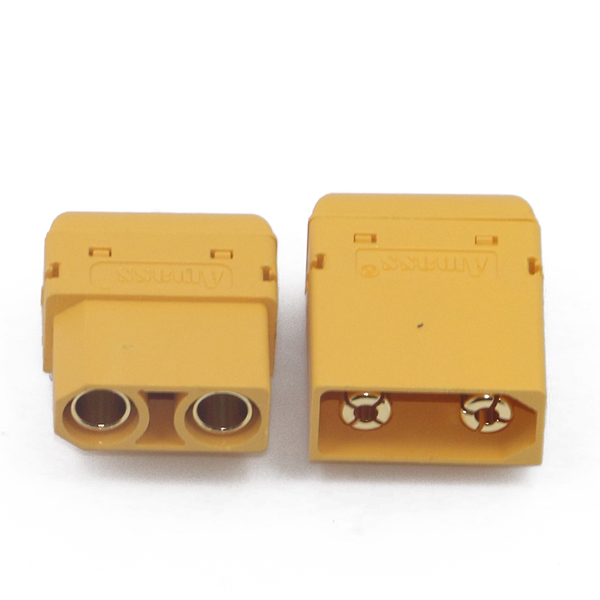

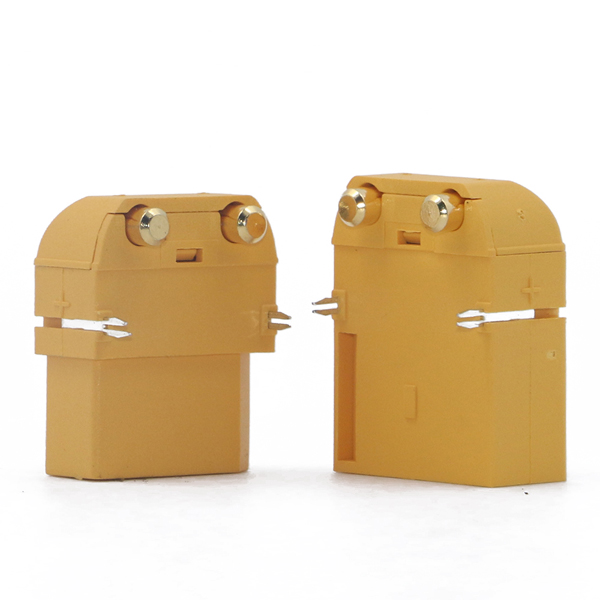

AMASS XT90PW-F 4.5mm Golden Plated 90 Degree PCB Connector - Female
    SKU XT90PW-M
    Added 2020/09/18
    Updated 2020/09/18

    Tags: AMASS_XT90PW-F_4.5mm_Golden_Plated_90_Degree_PCB_Connector_Female

    Specifications:

    AMASS XT90PW-F 4.5mm Golden Plated 90 Degree PCB Connector - Female


    Item No.: XT90PB-F
    Rated voltage: DC500V
    Rated  current: 45A
    Peak current: 90A
    Contact Resistance: 0.30mΩ
    Metal material: Brass, gold plated
    Plastic material: PA
    Temperature Rise: 96℃ @45A for 1 hour; 96℃ @90A for 1 minute
    Use times: 1000 times
    Cable spec:
    Working temperature: -20 to 120



    Includes/Requires:

    Include:
    1x XT90PB-F female Connector

    * One connector only (not a pair).
