| SKU | INSPRO |
|---|---|
| Brand | DJI |
| Added | 2015/10/03 |
| Updated | 2017/03/16 |
Features:
Specifications:

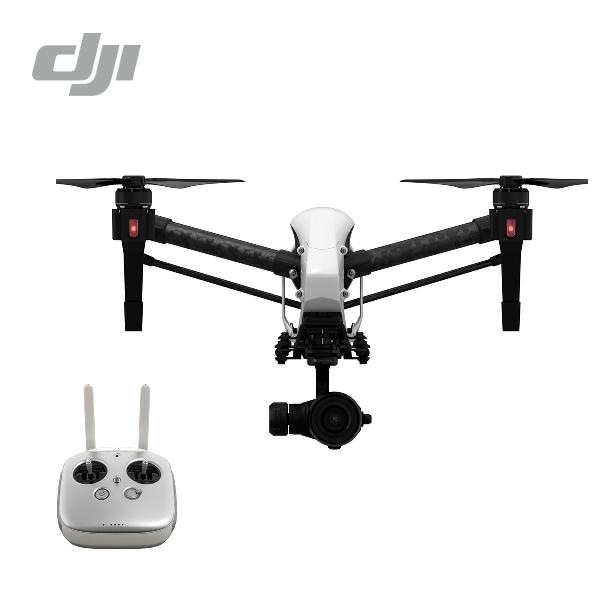

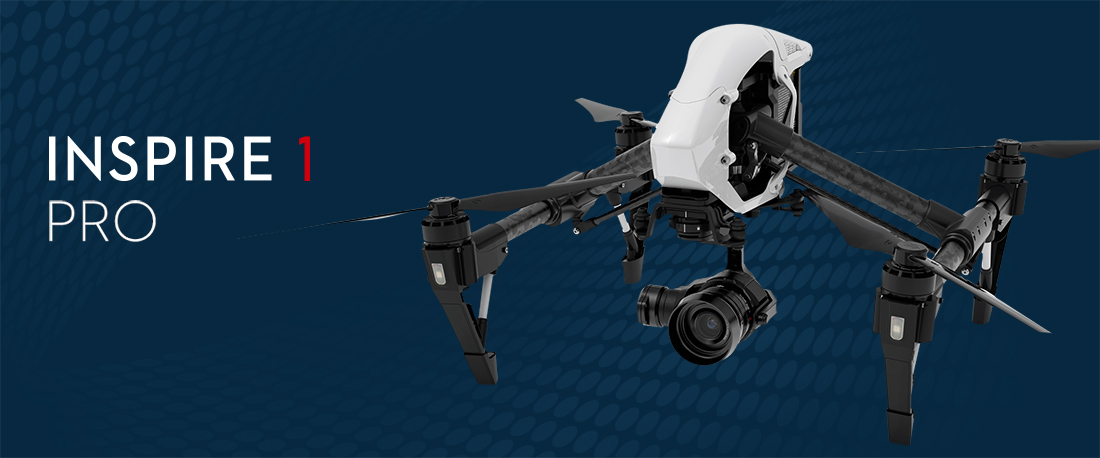

DJI INSPIRE 1 Pro Quadcopter Drone w/ Zenmuse X5 4K HD Camera, Single remote
Overview

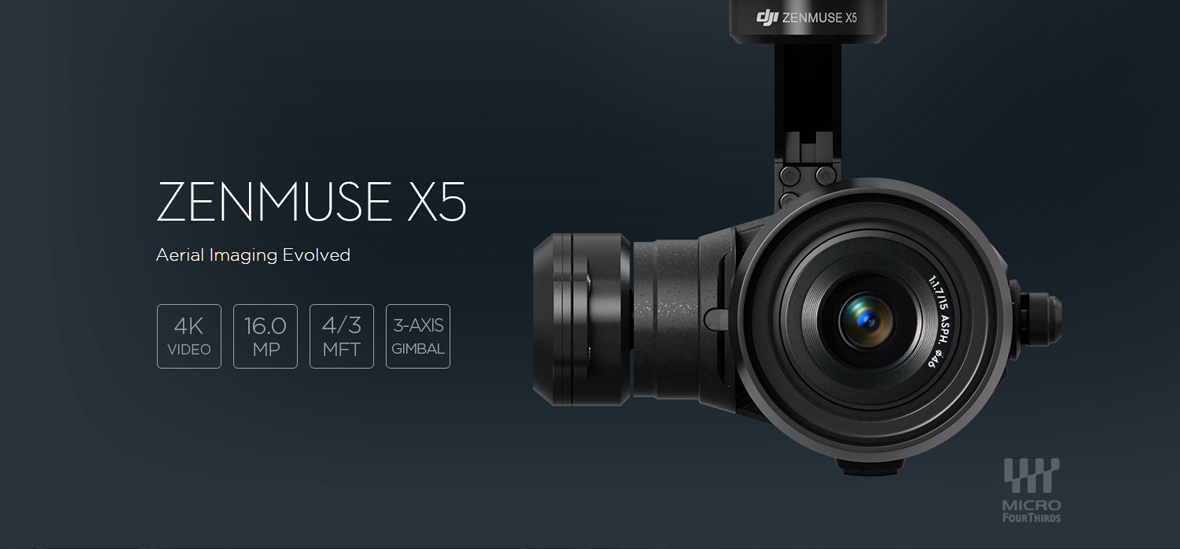

The Inspire 1 PRO comes with ZENMUSE X5. With the ZENMUSE X5 Series, you have the world's first set of Micro Four Thirds cameras built specifically for aerial photography and cinematography. Bringing unparalleled imaging quality together with integrated 3-axis gimbal stabilization and remarkable ease of use, each empowers you to shoot and complete jobs like never before.
Highlights
- Ready-to-fly aerial system
- Included professional 4K camera and 3-axis stabilization gimbal
- Live, wireless HD video transmission via DJI Lightbridge
- Dedicated remote with flight and camera controls

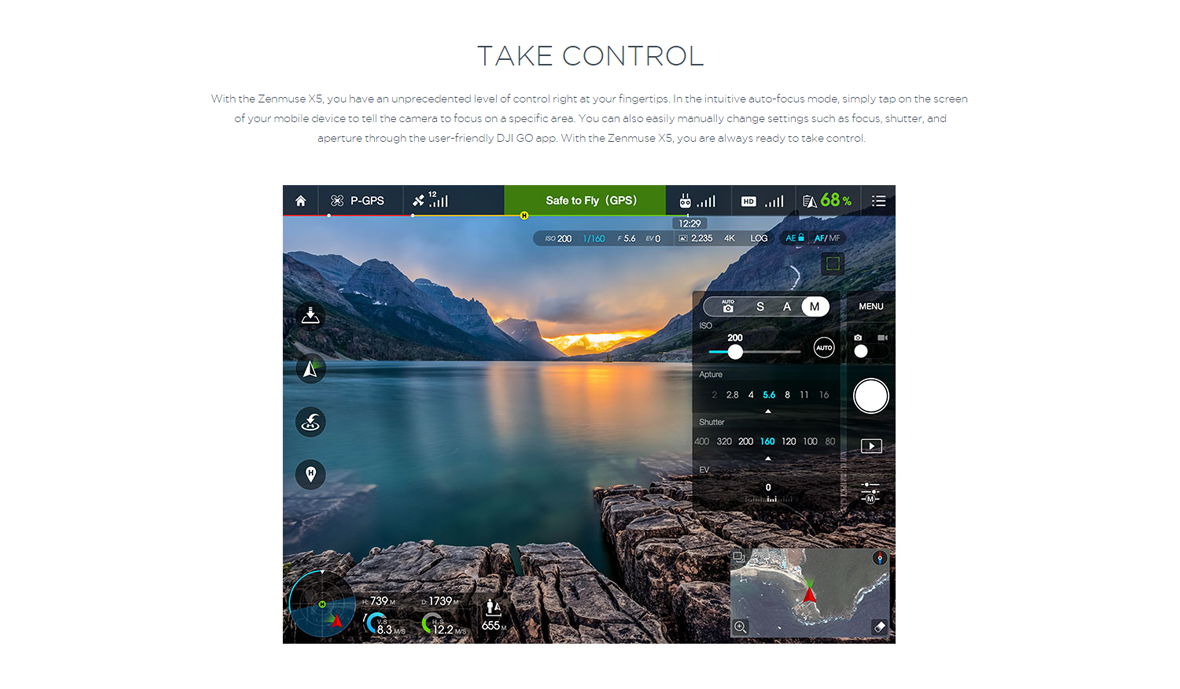

- Powerful app to adjust camera settings, edit videos, and more
- Vision Positioning system for GPS-free or indoor flight
- Perfect for high-level shoots and professional sets
Specifications
Aircraft | Model | T600 |
Weight (Battery Included) | 2935 g | |
Hovering Accuracy (GPS Mode) | Vertical: 0.5 m | |
Max Angular Velocity | Pitch: 300°/s | |
Max Tilt Angle | 35° | |
Max Ascent Speed | 5 m/s | |
Max Descent Speed | 4 m/s | |
Max Speed | 22 m/s (ATTI mode, no wind) | |
Max Flight Altitude | 4500 m | |
Max Wind Speed Resistance | 10 m/s | |
Max Flight Time | Approximately 18 minutes | |
Motor Model | DJI 3510 | |
Propeller Model | DJI 1345 | |
Indoor Hovering | Enabled by default | |
Operating Temperature Range | -10° to 40° C | |
Diagonal Distance | 559 to 581 mm | |
Dimensions | 438x451x301 mm | |
Power Spectral Density | 9.06mW/MHz | |
Remote Controller | Name | C1 |
Operating Frequency | 922.7~927.7 MHz (Japan Only) | |
Transmitting Distance (Outdoor And Unobstructed) | 2 km | |
EIRP | 10dBm@900m, 13dBm@5.8G, 20dBm@2.4G | |
Video Output Port | USB, mini-HDMI | |
Power Supply | Built-in battery | |
Charging | DJI charger | |
Dual User Capability | Host-and-Slave connection | |
Mobile Device Holder | Tablet or Phone | |
Max Mobile Device Width | 170mm | |
Output Power | 9 W | |
Operating Temperature Range | -10° to 40° C | |
Storage Temperature Range | Less than 3 months: -20° to 45° C | |
Charging Temperature Range | 0-40° C | |
Battery | 6000 mAh LiPo 2S | |
Charger | Model | A14-100P1A |
Voltage | 26.3 V | |
Rated Power | 100 W | |
Battery (Standard) | Name | Intelligent Flight Battery |
Model | TB47 | |
Capacity | 4500 mAh | |
Voltage | 22.2 V | |
Battery Type | LiPo 6S High voltage battery | |
Energy | 99.9 Wh | |
Net Weight | 570 g | |
Operating Temperature Range | -10° to 40° C | |
Storage Temperature Range | Less than 3 months: -20° to 45° C | |
Charging Temperature Range | 0° to 40° C | |
Max Charging Power | 180 W | |
Battery (Optional) | Name | Intelligent Flight Battery |
Model | TB48 | |
Capacity | 5700 mAh | |
Voltage | 22.8 V | |
Battery Type | LiPo 6S | |
Energy | 129.96 Wh | |
Net Weight | 670 g | |
Operating Temperature Range | -10° to 40° C | |
Storage Temperature Range | Less than 3 months: -20 to 45° C | |
Charging Temperature Range | 0° to 40° C | |
Max Charging Power | 180 W | |
Vision Positioning | Velocity Range | Below 8 m/s (2 m above ground) |
Altitude Range | 5-500 cm | |
Operating Environment | Brightly lit (lux > 15) patterned surfaces | |
Operating Range | 0-250 cm | |

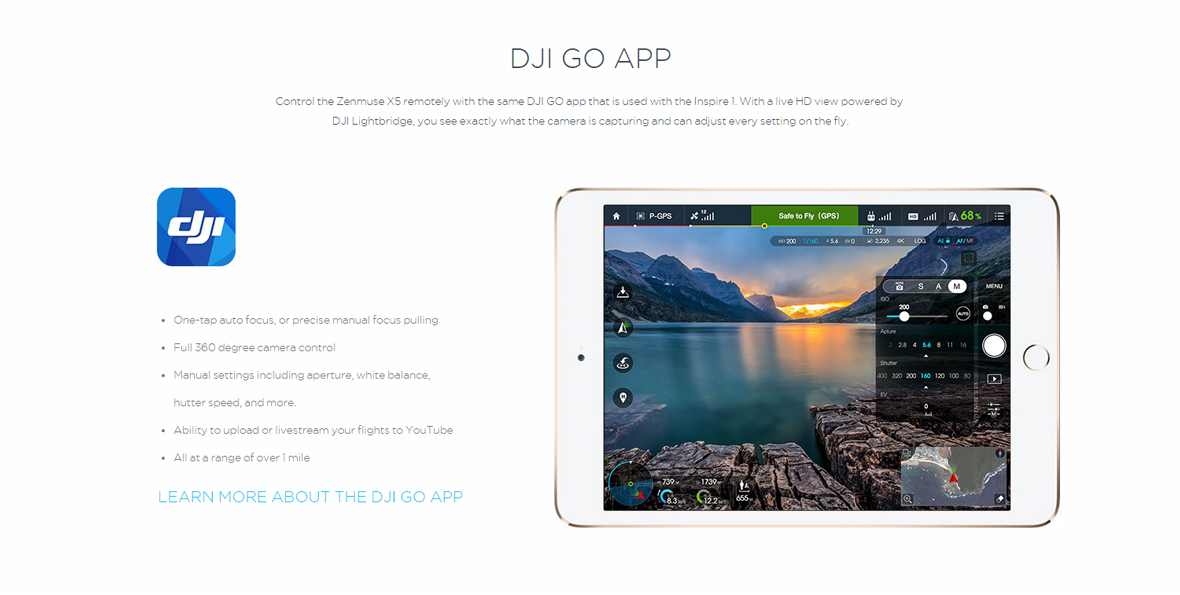

DJI GO App | Mobile Device System Requirements | iOS 8.0 or later, Android 4.1.2 or later |
Supported Mobile Devices | * Compatible with iPhone 5s, iPhone 6, iPhone 6 Plus, iPad Air, iPad Air Wi-Fi + Cellular, iPad mini 2, iPad mini 2 Wi-Fi + Cellular, iPad Air 2, iPad Air 2 Wi-Fi + Cellular, iPad mini 3, and iPad mini 3 Wi-Fi + Cellular. This app is optimized for iPhone 5s, iPhone 6, and iPhone 6 Plus. |

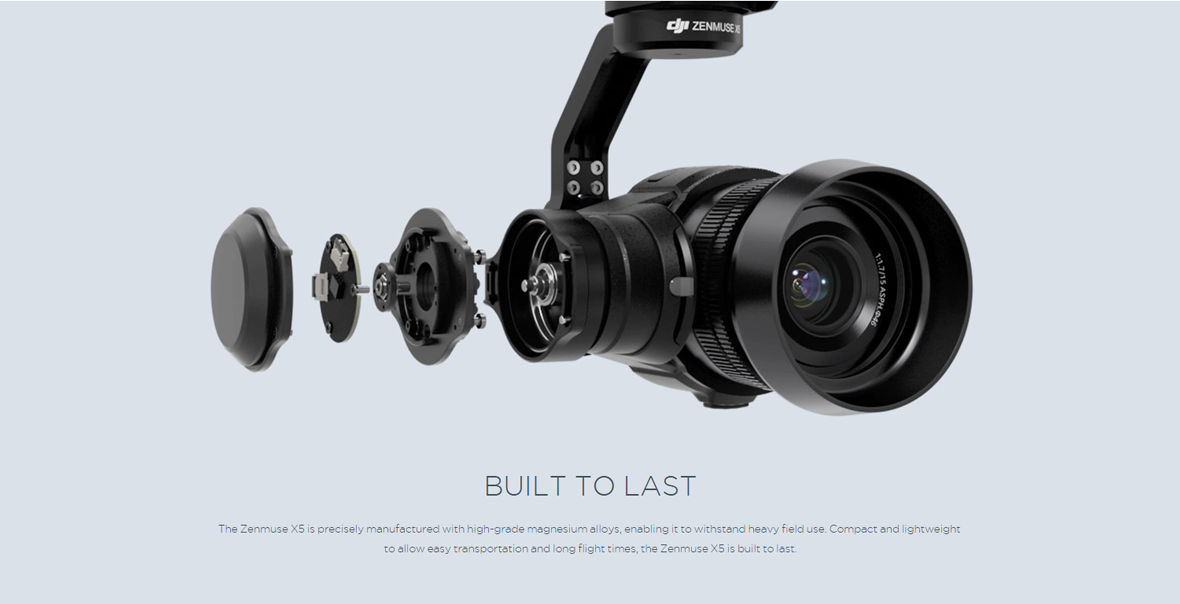

Zenmuse X5 | ||
General | Dimensions | 120mm (W) x 135mm (H) x 140mm (D) |
Weight (Standard Lens, Balancing Ring, Lens Hood, Micro SD Card Included) | 526 g | |
Static Output Power | 8 W | |
Peak Output Power | 13W | |
Operating Temperature | 32° to 104° F (0° to 40° C) | |
Camera | Lens | Replaceable lens |
Supported Lenses | DJI MFT 15mm f/1.7 ASPH | |

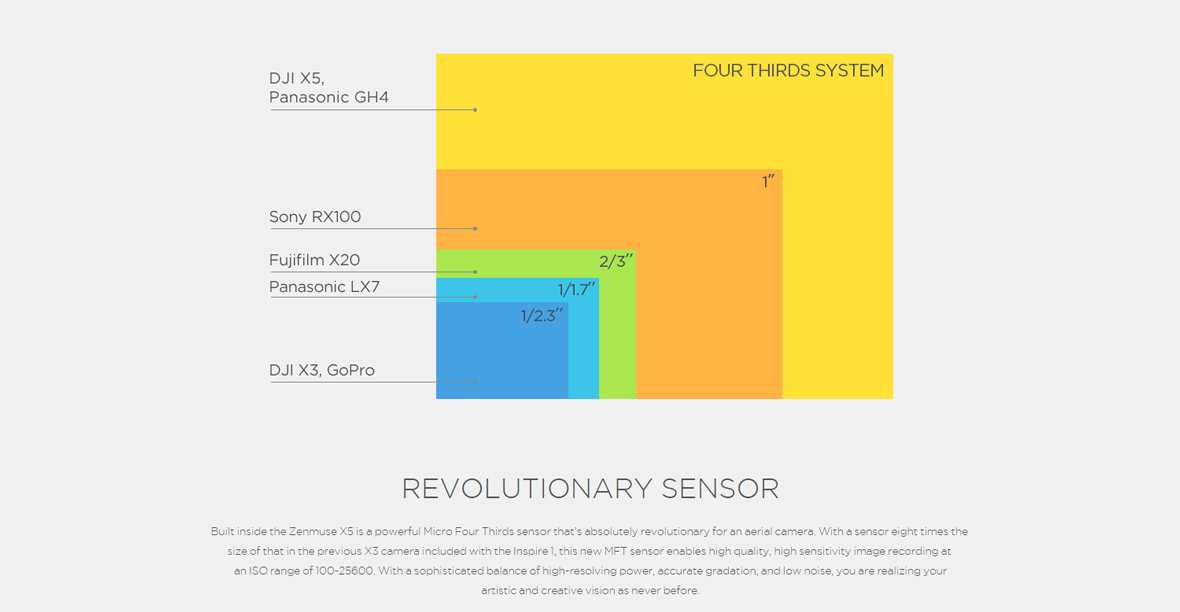

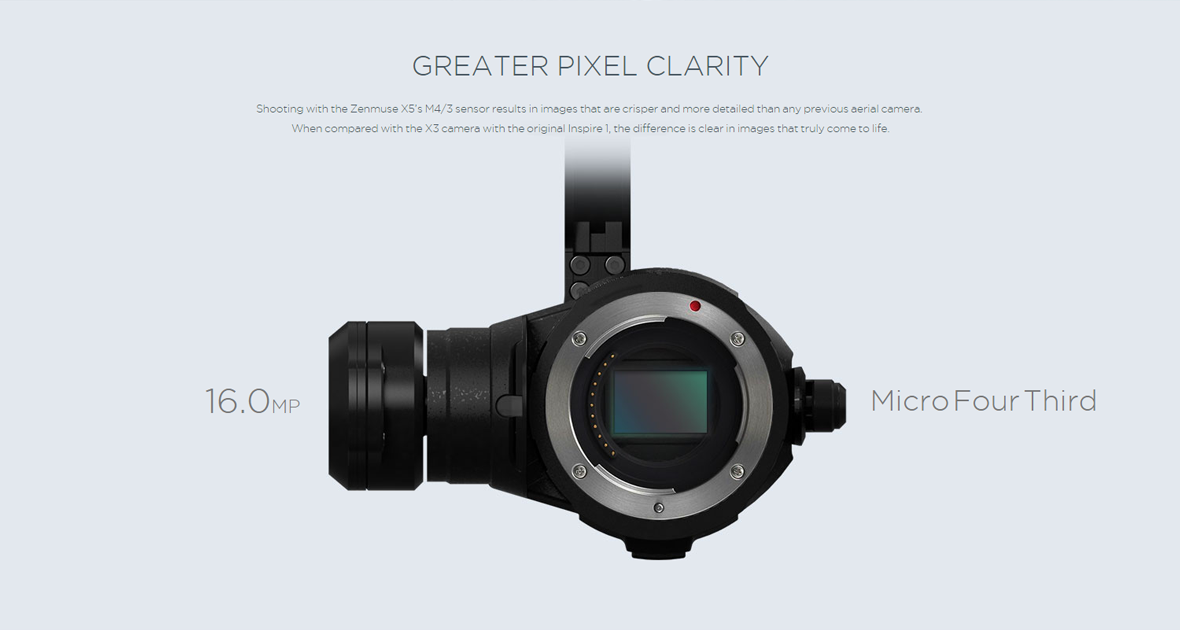

Sensor | 4/3-inch CMOS sensor | |
Effective Pixels | 16M | |
Max Resolution | 4608x3456 | |
ISO Range | 100~25600 | |
Electronic Shutter Speed | 8 to 1/8000 s | |
Field Of View (FOV) | 15mm/ f1.7：72° | |
Still Photography Modes | Single shot | |
Video Resolution | UHD: 4096×2160 (24/25p); 3840×2160 (25/30p); 2704x1520 (25/30p) | |
Max Video Bitrate | 60 Mbps | |
Supported File Formats | FAT32 / exFAT | |
Supported Storage Devices | Class 10 or UHS-1 or above Micro SD cards | |

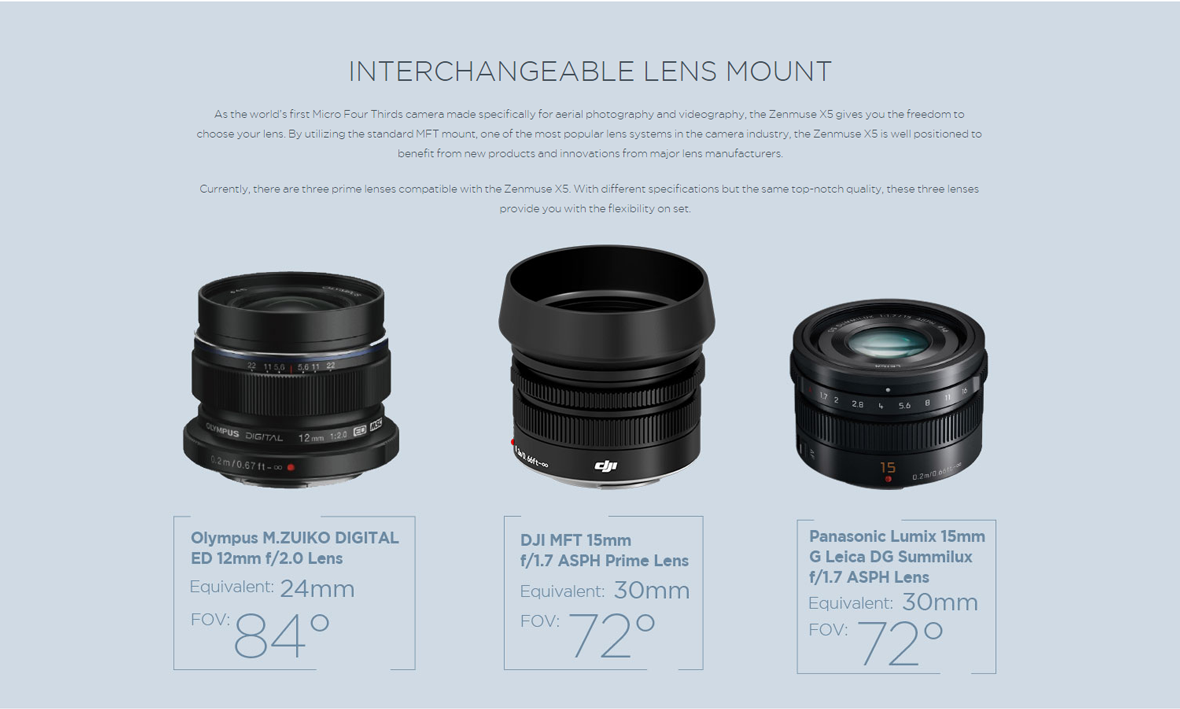

Default Lens | Name | DJI MFT 15mm f/1.7 ASPH |
Focal Length | f=15 mm (35 mm film camera equivalent: 30 mm) | |
Aperture Type | 7 diaphragm blades/circular aperture diaphragm | |
Maximum Aperture | F1.7 | |
Minimum Aperture Value | F16 | |
Lens Construction | 9 elements in 7 groups (3 aspherical elements) | |
In Focus Distance | 0.2 m to ∞ (from the focus distance reference line) | |
Mount | Micro 4/3 | |
Field Of View (FOV) | 72° | |
Max. Diameter | Approx. 57.5 mm | |
Overall Length | Approx. 36 mm | |
Mass | Approx. 115 g | |

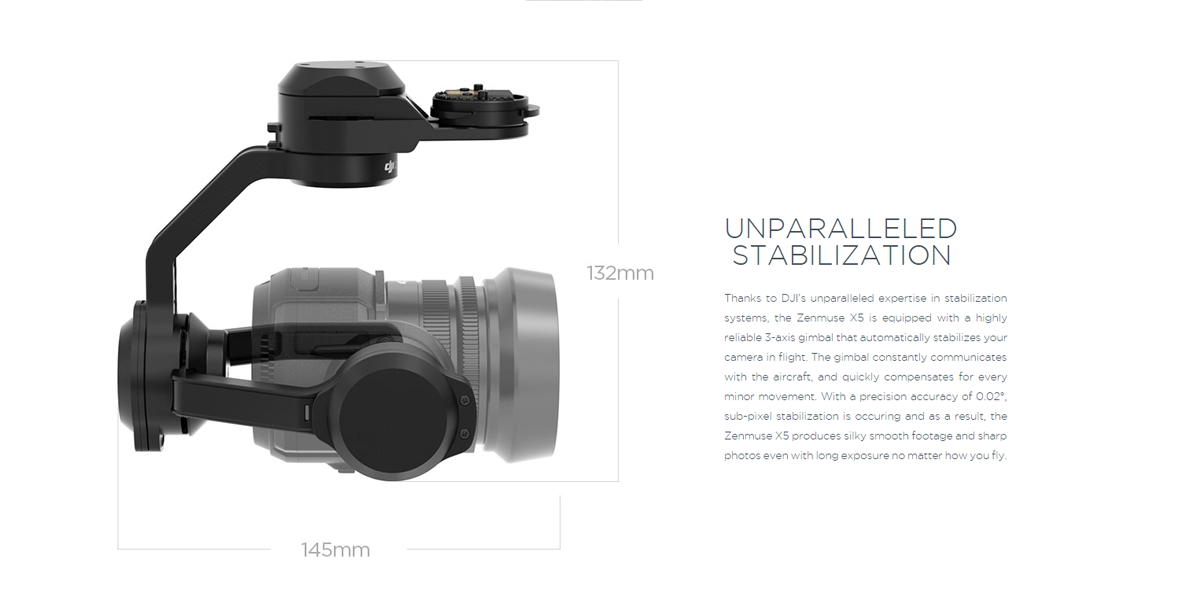

Gimbal | Model | Zenmuse X5 |
Angular Vibration Range | ±0.02° | |
Mount | Detachable | |
Controllable Range | Pitch: -90° to +30° | |
Max Controllable Speed | Pitch: 120°/s | |
Includes/Requires:
Included in the Package (Single Remote Version)1 x DJI Inspire 1 pro
1 x X5 camera
1 x remote controller
1 x charger
