X-CAM 3-axis Brushless Gimbal for GoPro A10-3H
    SKU A10-3H
    Manual Manual 1
    Added 2014/08/15
    Updated 2014/09/02
    Tags: X-CAM  3-axis  Brushless  Gimbal  for  GoPro  A10-3H

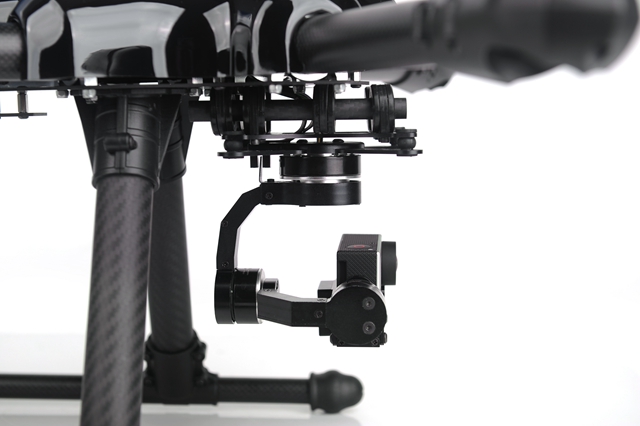

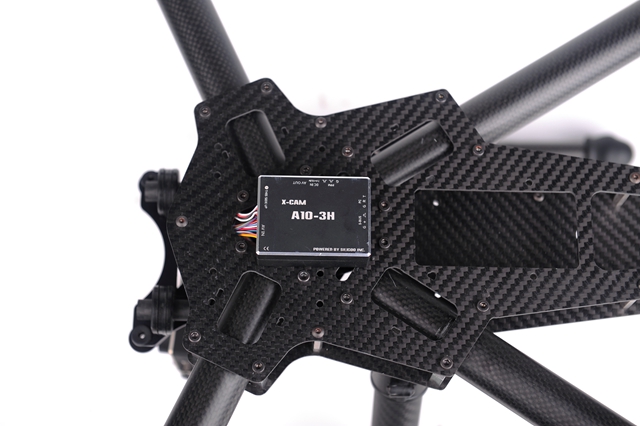

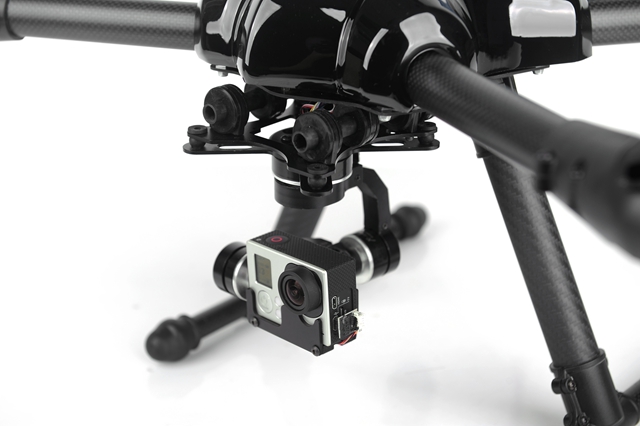

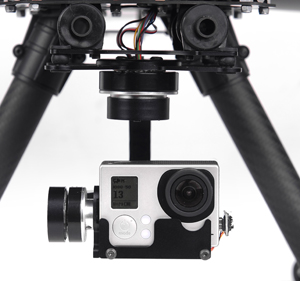

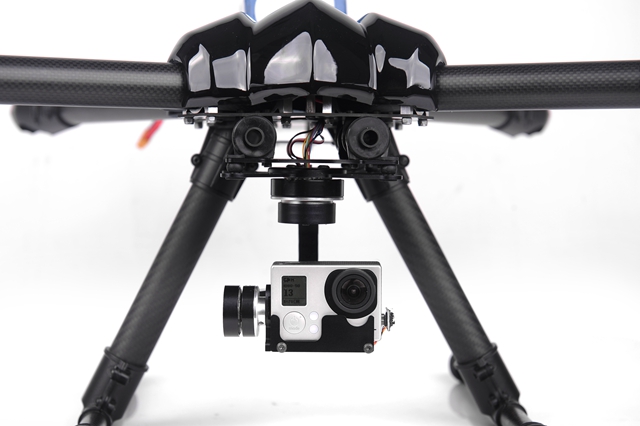

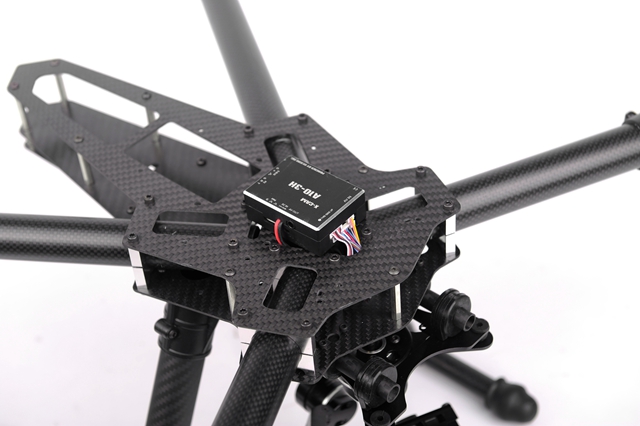

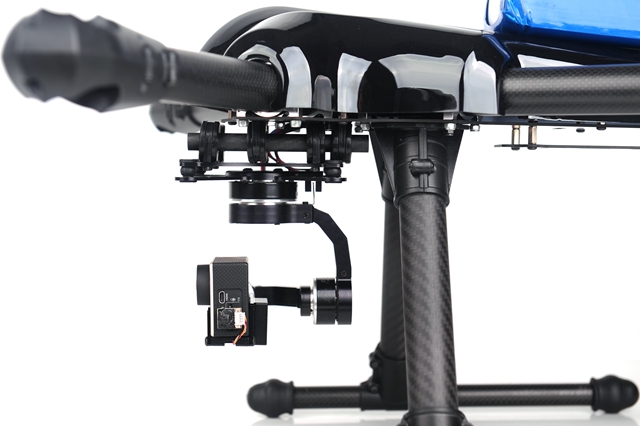

    X-CAM 3-axis Brushless Gimbal for GoPro  A10-3H

    Weight:  280g ( without GOPRO )
    Stabilization frequency:  5200Hz
    Input voltage:  7.4v ~ 16.8v ( 2S ~ 4S Lipo )
    Tilt travel:  +-90 degree; Roll travel:  +-45 degree
    YAW travel:  360 degrees unlimited rotation
    AV ouput & Charging Module has been insided
    Does not need any Auto Pilot System supporting
    3 Gyro sensors & 1 Position sensor inside
    Supports automatic location function

    The S-BUS output provides full functions, all function has been defined channel number:

    Channel 1 : ROLL Control

    Channel 2: Return to HOME

    Channel 3: TILT Control

    Channel 4: YAW Control

    Channel 5: Mode switch


    The recommend operation ways


    1. Single person: Just connect PPM channel for switch HEAD FOLLOWING , HEAD LOCK and AUTO BACK TO HOME, does not need to connect S-BUS channel, One receiver can be used.


    2. Two persons: Does not need to connect PPM channel, only S-BUS output channel provides full functions. But needs 2 receivers


      Notice: It does not need provide power to the receiver when you using two person mode, the A10-3H controller will provide the power to the receiver via the S-BUS.


    1.        Do not touch the gimbal during the initialization after turn on, Keep the gimbal in quietude

    2.        Do not use BEC for the gimbal power, pls use 2~4S Lipo battery

    3.        Strongly suggest using 12mm tube to mount the gimbal

    4.        Make sure the center of gravity of the gimbal  is correct before using.



     1 x X-CAM 3-axis Brushless Gimbal for GoPro  A10-3H
