SKU | VDOGLS |
---|---|
Manual | Manual 1 |
Added | 2010/07/23 |
Updated | 2012/04/17 |
Specifications:
Resolution: 640H x 480v x RGB(922K)Diagonal size: 0.44" (11mm)
Active area: 4.8mm x 3.6mm
Color configuration: vertical stripe
Angle of view: 24 degrees diagonal
Virtual image size: 68 inches diagonal at 2M
AV input terminal: 4-pole 3.5Φ
Video signal input: 1Vpp/72Ω
Audio signal input: 200mVrms/20KΩ
Input power: DC5V
Battery: 1000mAh Li battery
Consumption: 1W
Weight: 80g
Includes/Requires:

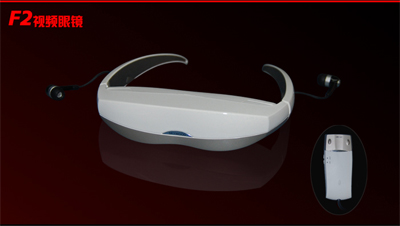

Includes:1 x video glasses with earphone
1x eye patches
1 x AC adapter
1 x USB cable to charge the battery
1 x AV connection cables
1 x connection cable
1 x control box
* There is no printed manual come with this product, download the English manual here.
