SKU | TL5D001 |
---|---|
Manual | Manual 1 |
Added | 2015/04/10 |
Updated | 2015/04/10 |
Features:

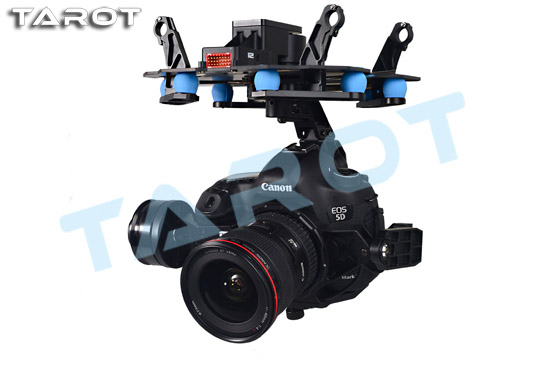

Description:Tarot 5D3 3-Axis brushless gimbal is specifically designed for Canon 5D Mark III. Integrated all the high technology for all the Tarot gimbals. CNC processed and industrial integrated structure brings lightness and stability. It is the professional choice for aerial photography. With the optional handheld bar (TL5D001), it is also can be used as a handheld gimbal. Tarot 5D3 3-axis gimbal has accuracy computing system and individual IMU to control the movement and attitude. All power cable and signal wire are placed inside the rack and structure. The innovative mechanical structure allows the operating speed controllable. The joystick movement is corresponding to axis speed; the bigger movement is, the faster axis speed will be.
Features:
Supports PC interface setting
Attitude Lock (AL) mode
Pan Follow (PF) mode
First Person View (FPV) mode.
Internal IMU module
Servo driver module for Tarot gimbal

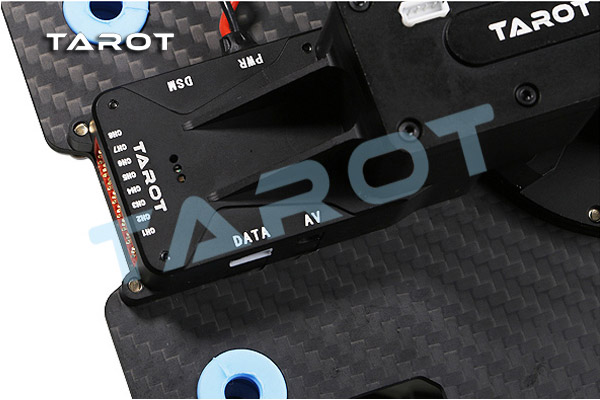

Output AV port
Shutter control
Wide range of input voltage
Supports S-Bus/PPM/DSM servo
Specifications:
Tarot 5D3 3-Axis Stabilized Brushless Gimbal TL5D001 for Canon 5D MARK 3 TL5D001
Angle control accuracy: ±0.02°Maximum control speed: PAN ±200°/s, TILT±200°/s, ROLL ±200°/s
Control range: PAN ±360° continuingly, TILT-135°~+45°, ROLL ±48°
Working voltage: 120mA (@25V) 180mA 3S-6S Li (11V-26V)
Locked motor voltage: 4A (@25V) 8A (@12V)
Working voltage: -20°C ~ 50°C
Weight: 1.51Kg
Size: 215mm x 240mm x 246mm
PC system requirement: Windows XP/VISTA/7/8 (32/64 bit)
Requirement:
Support camera: CANON EOS 5D MARK III
Support lens: CANON EF 17-40mm f/4L USM
Input power for gimbal control: 3S~6S Lipo battery
Receiver Channel: at least 4
Includes/Requires:
Includes:1 x gimbal
*Camera is NOT included.
