0M0100060504

Price(USD):	$28.19     Discontinued   Suggesting Restock
Price(USD):Member Price:	$28.19     Discontinued   Suggesting Restock Sign in for member price
Price(USD):Buy:	$28.19     Discontinued   Suggesting Restock     Add To Wish List

Tags: mini  AV  transmitter

Features:

Special features:

Amazing 5.8G mini size, super light A/V transmitter, integrated clover antenna, overall weight is only about 15g.


A good aerial photography solution for DJI Phantom or similar size multicopters.

Specifications:

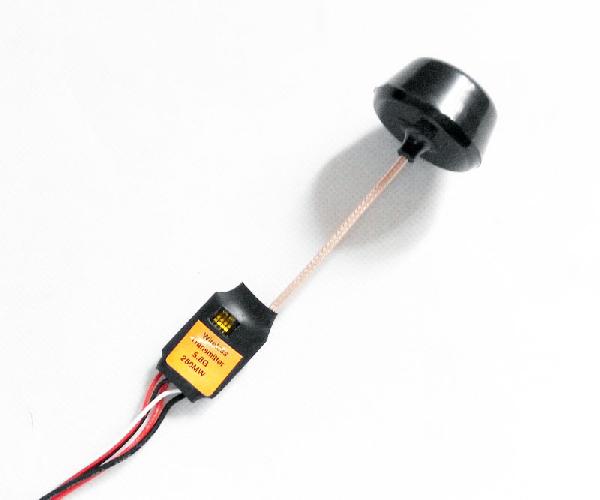

Super Light 5.8G 250mW  A/V Transmitter W/ Clover Antenna

Video format supported: NTSC/PAL
Working channel number: 8
Power input: DC +7.4V to +26.2V/ 2-6S Lipo, wide range power input (12V is recommended)
Power output: same as input power voltage
Video connector type: Futaba type connector (servo connector),  black wire for "negative", red for "positive", white for video signal
Weight: 15g (including wire)
Dimension: 3 x 2 x 7 cm

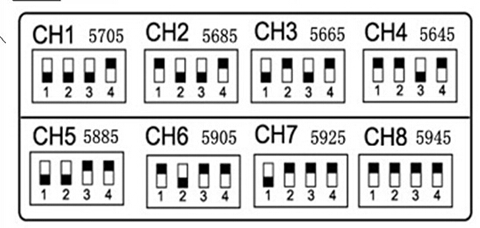

Working frequencies:

CH 1 :    5705              CH 2 :  5685

CH 3 :    5665              CH 4 :  5645

CH 5 :    5885              CH 6 :  5905

CH 7 :    5925               CH 8 :  5945

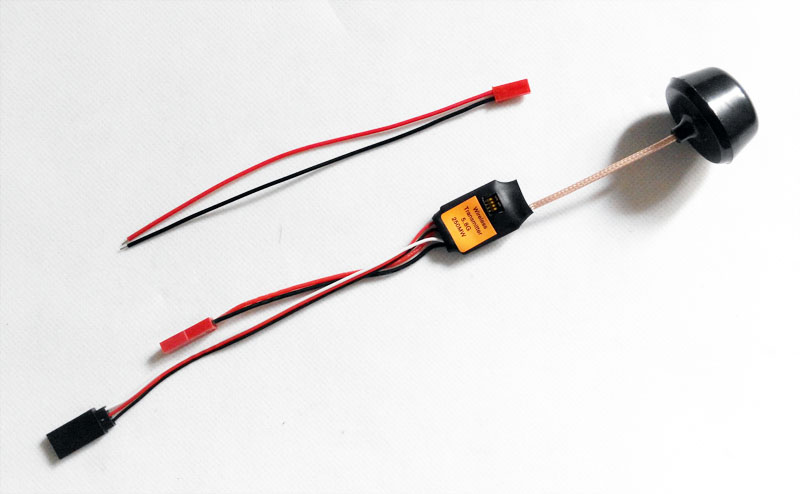

Includes/Requires:

Includes:
1 x A/V transmitter (TX)
