Features:

Special features:
- Super mini, super light, camera & MIC included, perfect FPV solution for for mini quadcopter/ multicopters.
- Whole set net weigth: 12g only.
- 2-6S Wide input voltage range.
- Integrated Circular Polarized antenna

Specifications:

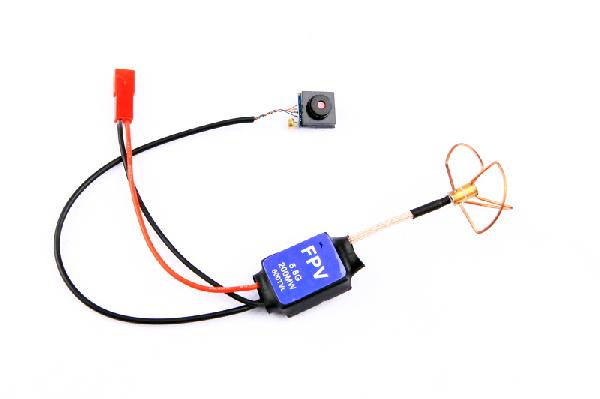

Super Light 5.8G 200mW Transmitter + 600 line Camera + Circular Antenna Combo (12g only, 2-6S input)

Whole system weight: 12g (including wire);  10g excluding wire
video format supported: NTSC/PAL
Power input: 2-6S/ 5-28V
Transmitting current: 142mA @ 12V;  72mA @ 25V
Power input connector: JST
A/V input connector: mini USB (Gopro3 compatible)

Working frequencies:

CH1：5705
CH2：5685
CH3：5665
CH4：5645
CH5：5885
CH6：5905
CH7：5925
CH8：5945




Camera specs:

Sensor: 1/4" HD Sensor
Audio: Yes
Resolution: 1280x960 500 Million pixel
Definition: 600 TV line
Power Input: 7-12V
Video resistance: 75Ω
Minimum illuminance: 0.5 LUX
Video frame number: 60 F/S, NTSC, 50 F/S  PAL

Includes/Requires:

Includes:
1 x transmitting unit (TX) + camera combo

Requires:
1 x receiving unit (RX)
