SKU | SWIFT-P |
---|---|
Brand | RunCam |
Added | 2016/04/05 |
Updated | 2018/04/16 |
Features:

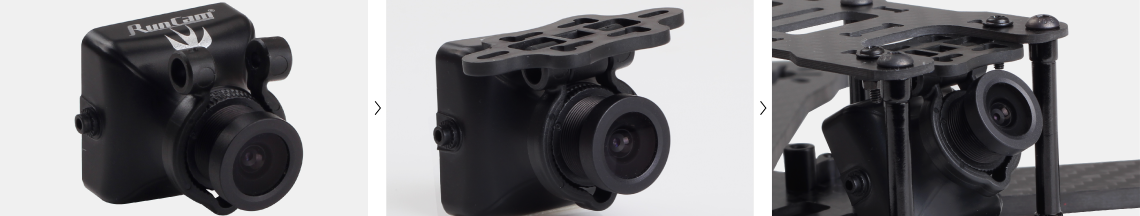

This is a brand new 600TVL high resolution color board camera with OSD menu function, D-WDR and DNR, it has very good ratio of price and performance.Can be fixed in various ways
Mini design

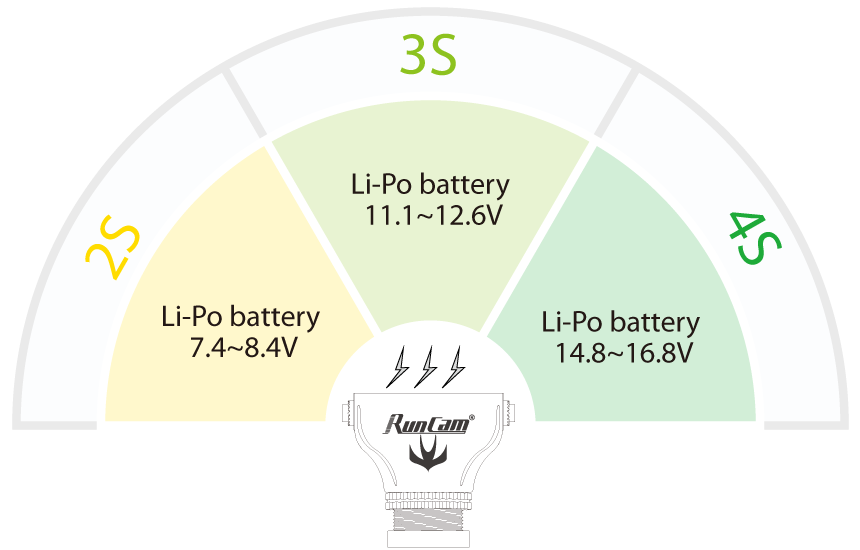

Wide voltage range5 to 17 V DCWorks with 2s/3s and 4S batteries
Specifications:

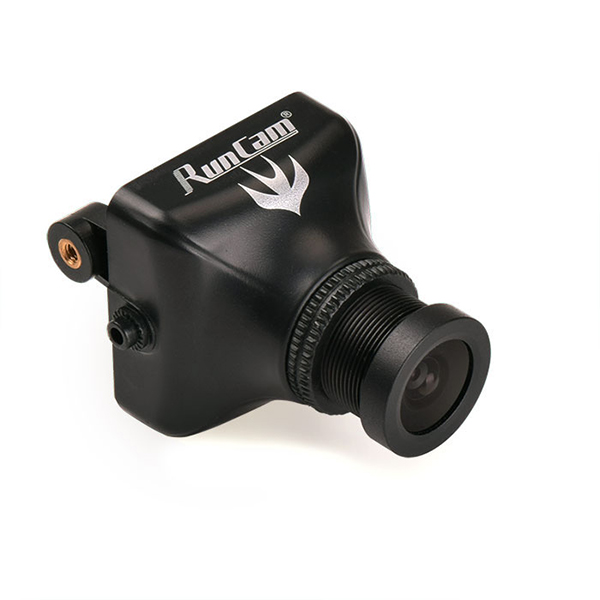

Runcam Swift 600TVL Horizontal Fov 90° MINI FPV Camera - PAL
Model | RunCam Swift |
Image Sensor | 1/3 SONY Super HAD II CCD |
Horizontal Resolution | 600TVL |
Lens | 2.8mm |
Signal System | PAL |
OSD Set | YES |
S/N Ration | >60dB(AGC OFF) |
Electronic Shutter Speed | PAL:1/50~100,000; |
AutoGain Control(AGC) | YES |
Back light compensation(BLC) | YES |
Min.illumination | 0.01Lux/1.2F |
WDR | D-WDR |
DNR | 2DNR |
Day/Night | Auto/Color/B&W |
Power | DC 5 to 17V |
Net weight | 12g |

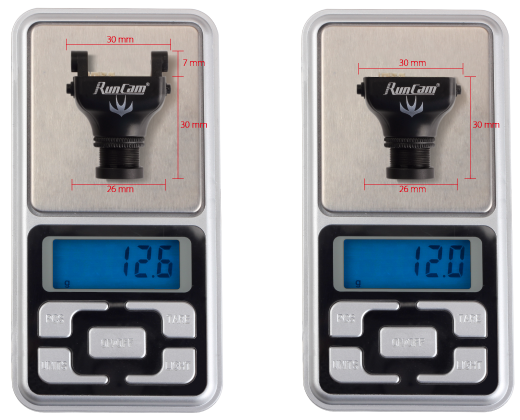

Dimensions | 26mm*26mm*30mm |

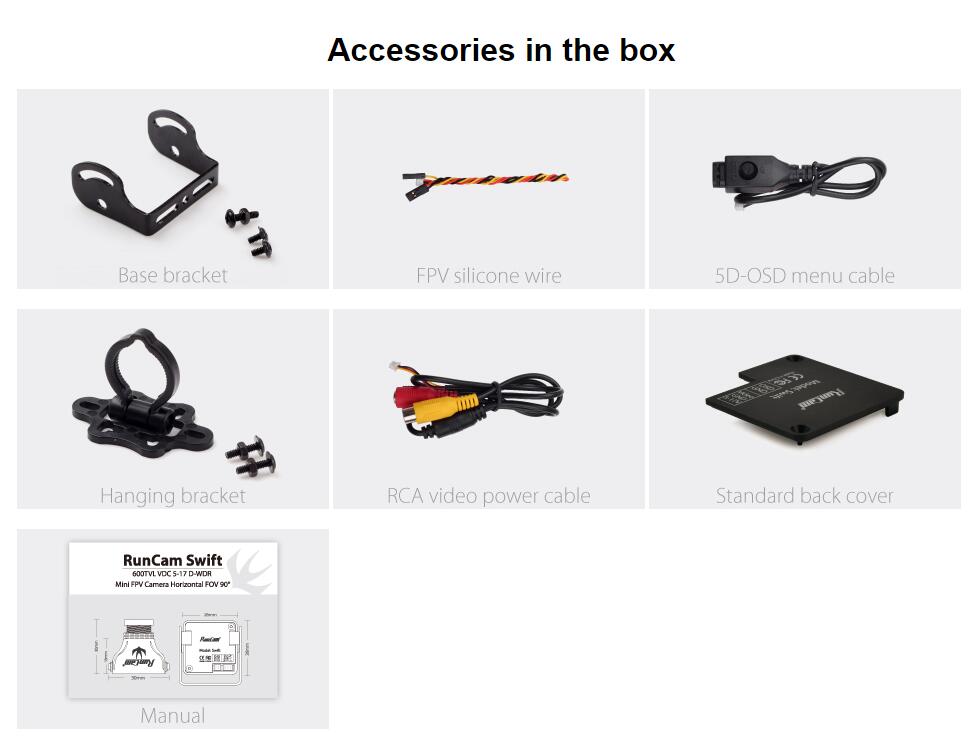

Includes/Requires:
Includes:1 X camera
1 X base bracket
1 X hanging bracket
1 X standard back cover
1 X RCA video power cable
1 X FPV silicone wire
1 X 5D-OSD menu cable
1 X screw package
