| SKU | RT-406 |
|---|---|
| Added | 2016/05/21 |
| Updated | 2016/05/21 |
Specifications:

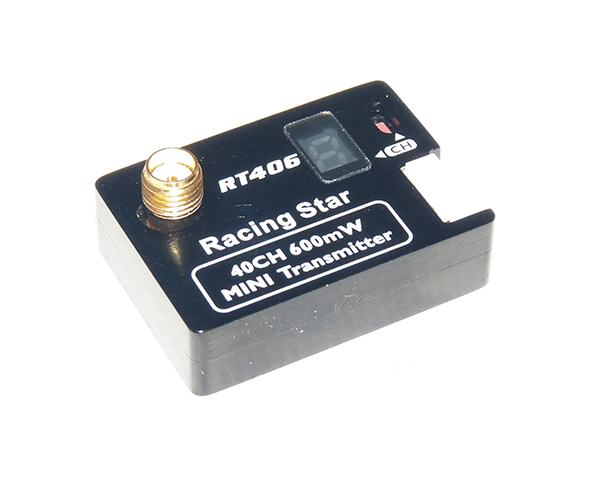

Racing Star 5.8G 40ch 600mW A/V Mini Transmitter (TX only) | SMA, jack
Transmitting power: 600mW(28dBm±0.5dBm)
Working frequncy: ISM 5.6GHz-5.95GHz 40 CH
Power input: 6V to 30V
Channel number: 40
Working currency: 280mA @12V
Connector type: SMA jack (module side) Refer to here for connector type diagram
Weight: 14.5g
Dimension: 35 x 25 x 9mm
Wire sequence:
1：Red：+ 6V ~ +30 V：VCC
2：Black：GND
3：Red : + 6V ~ +30 V：VCC OUT
4：Black：GND
5：Yellow：Video
Button function:
Short press to change channel number
Long press to change channel group
Includes/Requires:
Includes:1 x transmitting unit (TX only)
Requires:
1 x Receiver
