Mini HDMI to A/V Conversion Card With Remote Control Infrared Shutter Function for Sony Nex 5 etc. RCD3015G
    Manual Manual 1
    Added 2014/03/20
    Updated 2015/04/28
    Tags: video  conversion,  SONY  NEX  5N  and  5R,  mini  HDMI  to  AV,  signal  transfer  card  remote  control  infrared  shutter


    This new version is a big step improvement over the first version, also added remote control infrared shuttle control function make it a  more powerful device for areal photography application.

    Special features:
    - Now supports both PAL & NTSC output, not like previous version only supports PAL.
    - Support 16:9 or 4:3 output.
    - Optimized dimension, no conflict in installation for Nex 7.
    - Remote control infrared shutter control, now you can control your camera taking pictures or recording videos without using extra devices.
    - Support more camera types, and compatibility is improved.

    Typical application: Convert HDMI signals to A/V signals and control your camera with your RC transmitter.
    Connect your video devices with mini HDMI port to video device with A/V input (like A/V wireless transmitter).


    Mini HDMI to A/V Conversion Card With Remote Control Infrared Shutter Function for Sony Nex 5 etc. RCD3015G

    Connector type: input Mini HDMI ; output wires and connectors are not included.
    Weight: 3.5g
    Dimension:  50(L) x 15(W) x 12(H) mm  (H including connector)
    Supported cameras:

    a. Real time & play back modes: SONY NEX-5, 5N,5R,5T,5TL,6R,7N,7R, Nex 50i, Nex 60i; Nikon D90,D3X
    b. Play back modes: Panosonic GH2, GH3, Canon 60D  (only compatible under play back mode)

    Remote control method with 3-position switches:
    Position 1 (upper position) :  take photo
    Position 2 (middle position): stop
    Position 3 (lower position):  video recording
    * Special hints:
    1.Before the device is powered on (including switch on camera or switch on the receiver), the 3-position switch of your transmitter must be set to "Stop" position (middle position), this is very critical for the device to work properly.
    2. When switching from "video recording" to "stop" or from "stop" position to "video recording", you must wait for at least 5 seconds, so as the camera can have enough time to response to the status change. Switching too fast may cause malfunction of your camera or even damage the video file.
    3. This device doesn't support high voltage receiver, the power supply of your receiver must be 4.8V to 6V

    * The card may not compatible with other types cameras other than the types listed.

    HDMI resolution setting of your camera must be set to "Auto" mode,  once change the HDMI resolution setting to "Auto", both the camera and HDMI/AV conversion module must be powered off and re-powered on, you should unplug the module and plug it back again to make sure the new setting will take effect.

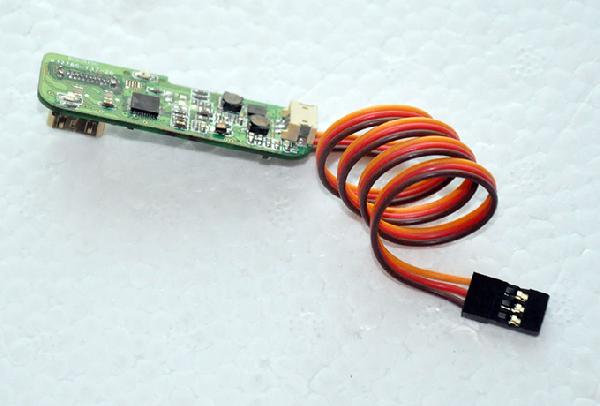

    1 x mini HDMI to A/V conversion & remote control shutter card
    1 x 3-core AV wire
    1 x 0.75mm POF optical fiber
